240 Straightpull

The new 240 hub with Ratchet EXP: lighter, stiffer, more precise and easier to maintain.

  • Net weight from 102 g
Product details

Product details

Swiss precision engineering, machining and assembly together with clever detail solutions have made of the 240 what it is today: A legend. The strengths of the new 240 hub are further enhanced with the new RATCHET EXP technology. The ultra-reliable freehub system transfers the highest pedaling loads resulting in direct power transmission. Just what athletes want: Perfect transmission of their power and the reliability allowing them to focus on the ride.

  • Freehub system Ratchet EXP 36
Technologies

technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

Ratchet exp
Technology

Learn more

engagement angle
technology

Learn more
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Field of application

02

Axle system

03

Built-in dimension

05

Freehub body

06

Freehub system

07

Number of holes

There are 25 models of this product.
Show all
Hide all

Front wheel 24P DBIS for Thru Axle 15mm

H24PADIXR28SA3351S
General
  • Net weight 111 g
  • Field of application MTB
  • Material -
Brake & Freehub System Dimensions
  • Axle system 15 mm Thru Axle
  • Built-in dimension 100 mm
  • Number of holes 28
Inclusive
  • Inclusive -

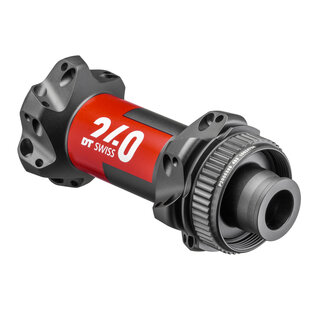

Front wheel 24P DBCL for Thru Axle 12mm

H24PACDXR24SA4734S

  • Net weight 104 g
  • Field of application Road
  • Material -

  • Axle system 12 mm Thru Axle
  • Built-in dimension 100 mm
  • Number of holes 24

  • Inclusive -

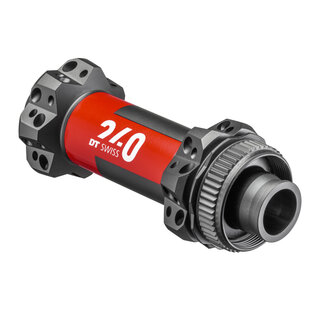

Front wheel 24P DBCL for Thru Axle 15mm

H24PACIXR28SA3228S

  • Net weight 104 g
  • Field of application MTB
  • Material -

  • Axle system 15 mm Thru Axle
  • Built-in dimension 100 mm
  • Number of holes 28

  • Inclusive -

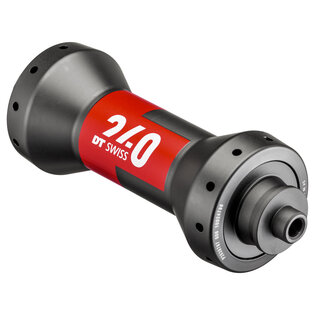

Front wheel 24P NONDISC for quick release 5mm

H24PAAQXR20SA4796S

  • Net weight 102 g
  • Field of application Road
  • Material -

  • Axle system 5 mm quick release
  • Built-in dimension 100 mm
  • Number of holes 20

  • Inclusive -

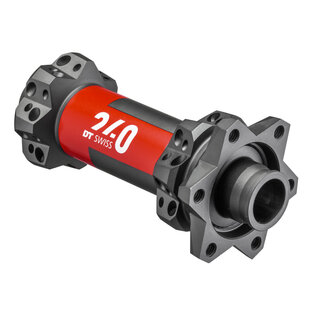

Front wheel 24P DBIS Boost for Thru Axle 15mm

H24PBDIXR28SA4928S

  • Net weight 118 g
  • Field of application MTB
  • Material -

  • Axle system 15 mm Thru Axle
  • Built-in dimension 110 mm Boost
  • Number of holes 28

  • Inclusive -

Front wheel 24P DBCL Boost for Thru Axle 15mm

H24PBCIXR28SA3287S

  • Net weight 110 g
  • Field of application MTB
  • Material -

  • Axle system 15 mm Thru Axle
  • Built-in dimension 110 mm Boost
  • Number of holes 28

  • Inclusive -

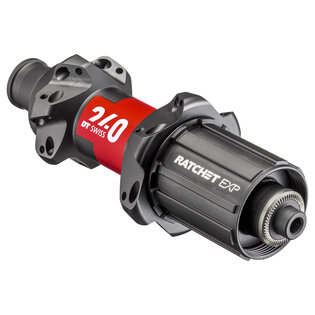

Rear wheel 24P NONDISC for quick release 5mm

H24PHRQIR24SA4814S

  • Net weight 197 g
  • Field of application Road
  • Material -

  • Brake interface Non disc
  • Freehub body Shim. RD. 11SP Light (ASL11)
  • Freehub system Ratchet EXP 36

  • Axle system 5 mm quick release
  • Built-in dimension 130 mm
  • Number of holes 24

  • Inclusive -

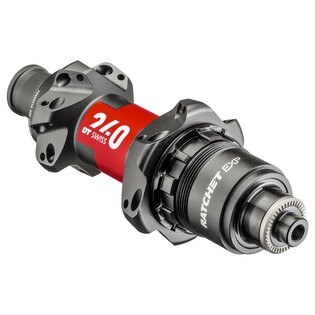

Rear wheel 24P NODISC for quick release 5mm

H24PHRQ1R24SA4974S

  • Net weight 188 g
  • Field of application Road
  • Material -

  • Brake interface Non disc
  • Freehub body SRAM XDR RD. (AXDR)
  • Freehub system Ratchet EXP 36

  • Axle system 5 mm quick release
  • Built-in dimension 130 mm
  • Number of holes 24

  • Inclusive -

Rear wheel 24P DBIS for Thru Axle 12mm

H24PNDDBR28SA3374S

  • Net weight 215 g
  • Field of application MTB
  • Material -

  • Brake interface Disc IS (6-bolt)
  • Freehub body Shimano Light (ASL)
  • Freehub system Ratchet EXP 36

  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Number of holes 28

  • Inclusive -

Rear wheel 24P DBIS for Thru Axle 12mm

H24PNDDRR28SA4949S

  • Net weight 204 g
  • Field of application MTB
  • Material -

  • Brake interface Disc IS (6-bolt)
  • Freehub body SRAM XD MTB (ASRAM)
  • Freehub system Ratchet EXP 36

  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Number of holes 28

  • Inclusive -

Rear wheel 24P DBCL for Thru Axle 12mm

H24PNCDBR28SA3232S

  • Net weight 206 g
  • Field of application MTB
  • Material -

  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Number of holes 28

  • Inclusive -

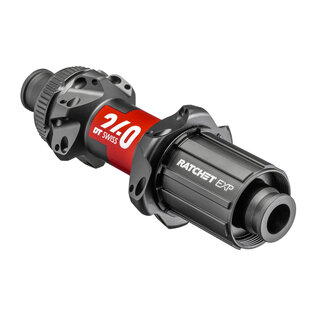

Rear wheel 24P DBCL for Thru Axle 12mm

H24PNCDIR24SA4951S

  • Net weight 201 g
  • Field of application Road
  • Material -

  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Number of holes 24

  • Inclusive -

Rear wheel 240 DBCL for Thru Axle 12mm

H24PNCDIR28SA4955S

  • Net weight 204 g
  • Field of application Road
  • Material -

  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Number of holes 28

  • Inclusive -

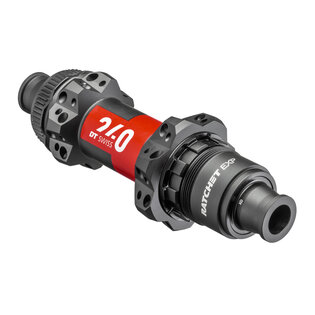

Rear wheel 24P DBCL for Thru Axle 12mm

H24PNCDRR28SA4885S

  • Net weight 195 g
  • Field of application MTB
  • Material -

  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Number of holes 28

  • Inclusive -

Rear wheel 24P DBCL for Thru Axle 12mm

H24PNCD1R24SA4745S

  • Net weight 191 g
  • Field of application Road
  • Material -

  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Number of holes 24

  • Inclusive -

Rear wheel 24P DBCL for Thru Axle 12mm

H24PNCD1R28SA4781S

  • Net weight 195 g
  • Field of application Road
  • Material -

  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Number of holes 28

  • Inclusive -

Rear wheel 24P DBIS Boost for Thru Axle 12mm

H24PTDD2R28SA7259S

  • Net weight 215 g
  • Field of application MTB
  • Material -

  • Brake interface Disc IS (6-bolt)
  • Freehub body Shim. 12SP Light (ASL12)
  • Freehub system Ratchet EXP 36

  • Axle system 12 mm Thru Axle
  • Built-in dimension 148 mm Boost
  • Number of holes 28

  • Inclusive -

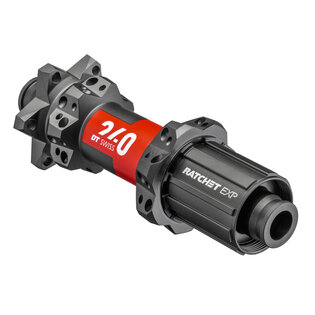

Rear wheel 24P DBIS Boost for Thru Axle 12mm

H24PTDDBR28SA4932S

  • Net weight 217 g
  • Field of application MTB
  • Material -

  • Brake interface Disc IS (6-bolt)
  • Freehub body Shimano Light (ASL)
  • Freehub system Ratchet EXP 36

  • Axle system 12 mm Thru Axle
  • Built-in dimension 148 mm Boost
  • Number of holes 28

  • Inclusive -

Rear wheel 24P DBIS Boost for Thru Axle 12mm

H24PTDDRR28SA7257S

  • Net weight 207 g
  • Field of application MTB
  • Material -

  • Brake interface Disc IS (6-bolt)
  • Freehub body SRAM XD MTB (ASRAM)
  • Freehub system Ratchet EXP 36

  • Axle system 12 mm Thru Axle
  • Built-in dimension 148 mm Boost
  • Number of holes 28

  • Inclusive -

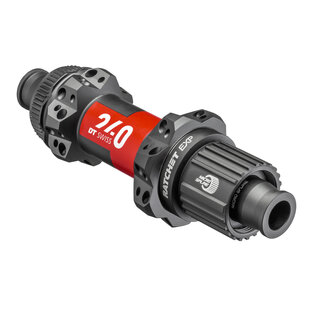

Rear wheel 24P DBCL Boost for Thru Axle 12mm

H24PTCD2R28SA4892S

  • Net weight 207 g
  • Field of application MTB
  • Material -

  • Axle system 12 mm Thru Axle
  • Built-in dimension 148 mm Boost
  • Number of holes 28

  • Inclusive -

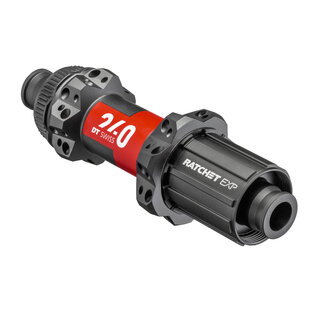

Rear wheel 24P DBCL Boost for Thru Axle 12mm

H24PTCDBR28SA3298S

  • Net weight 209 g
  • Field of application MTB
  • Material -

  • Axle system 12 mm Thru Axle
  • Built-in dimension 148 mm Boost
  • Number of holes 28

  • Inclusive -

Rear wheel 24P DBCL Boost for Thru Axle 12mm

H24PTCDRR28SA4888S

  • Net weight 199 g
  • Field of application MTB
  • Material -

  • Axle system 12 mm Thru Axle
  • Built-in dimension 148 mm Boost
  • Number of holes 28

  • Inclusive -

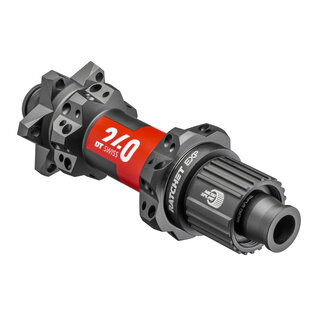

Rear wheel 24P DBIS Boost for Thru Axle 12mm

H24PODD2R28SA8457S

  • Net weight 219 g
  • Field of application MTB
  • Material -

  • Brake interface Disc IS (6-bolt)
  • Freehub body Shim. 12SP Light (ASL12)
  • Freehub system Ratchet EXP 36

  • Axle system 12 mm Thru Axle
  • Built-in dimension 157 mm Boost+
  • Number of holes 28

  • Inclusive -

Rear wheel 24P DBIS Boost for Thru Axle 12mm

H24PODDBR28SA8455S

  • Net weight 222 g
  • Field of application MTB
  • Material -

  • Brake interface Disc IS (6-bolt)
  • Freehub body Shimano Light (ASL)
  • Freehub system Ratchet EXP 36

  • Axle system 12 mm Thru Axle
  • Built-in dimension 157 mm Boost+
  • Number of holes 28

  • Inclusive -

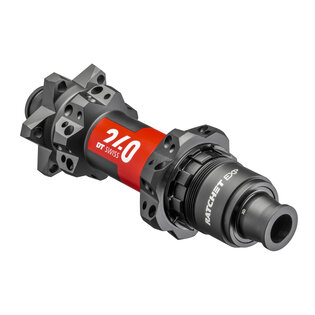

Rear wheel 24P DBIS Boost for Thru Axle 12mm

H24PODDRR28SA8443S

  • Net weight 211 g
  • Field of application MTB
  • Material -

  • Brake interface Disc IS (6-bolt)
  • Freehub body SRAM XD MTB (ASRAM)
  • Freehub system Ratchet EXP 36

  • Axle system 12 mm Thru Axle
  • Built-in dimension 157 mm Boost+
  • Number of holes 28

  • Inclusive -
Support

Product support

Find manuals, how-to videos and helpful online forms here.

According your selection 240 Straightpull we found 25 models. Select the model for which you need product support.
