12 mm
Quick, safe and stiff – the RWS axle system.
- Product type E-thru, X-12
Product details
When mounting a wheel quickly and safely, the RWS system is untouchable. It combines the fast mounting of a conventional quick release with the force and safety of a thru axle. The high precision toothing at the inside of the lever allows to fully tighten the axle and to perfectly position the lever. The RWS axle system is available for various applications from road to MTB and tandem.
- Range of use & type Plug In RWS MTB - Lever & Rod, Plug In RWS MTB - Rod only, Plug In RWS Road - Lever & Rod, Plug In RWS Road - Rod only, Plug In RWS Susp.-Rod only, RWS MTB, RWS Road
- Lever material Aluminum, None
Model finder
Just a few clicks to find your model. Please use the filter below.
RWS 10 Alu thru axle 100mm/Ø12mm
HWQASM00S2023S- Net weight 54 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type RWS Road
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Length [mm] (L) 121
- Thread length [mm] (G) 13
- Thread M12 X 1.5

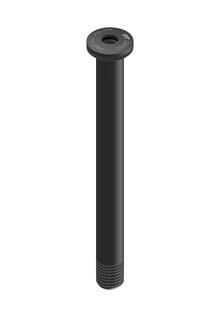

RWS 10 Alu 100mm Ø12 for thru axle Plug-in
HWQASM00S1461S- Net weight 31 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material None
- Product type -
- Range of use & type Plug In RWS Road - Rod only
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Length [mm] (L) 121
- Thread length [mm] (G) 13
- Thread M12 X 1.5

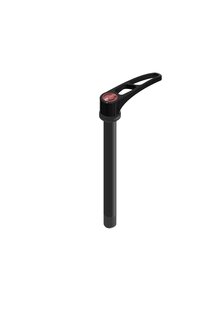

RWS 10 Alu 100mm Ø12 for thru axle Plug-in
HWQASM00S1460S- Net weight 58 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type Plug In RWS Road - Lever & Rod
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Length [mm] (L) 121
- Thread length [mm] (G) 13
- Thread M12 X 1.5
RWS Alu 15mm/110mm for thru axle
HWQASM00S7305S- Net weight 75 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material None
- Product type -
- Range of use & type Plug In RWS Susp.-Rod only

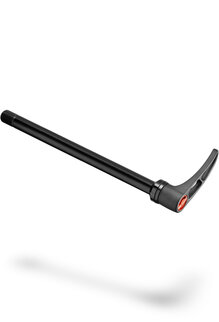

RWS 10 Alu thru bolt 142mm/Ø12mm (X12)
HWQASM00S2955S- Net weight 65 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type X-12
- Range of use & type RWS MTB
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Length [mm] (L) 162.5
- Thread length [mm] (G) 15
- Thread M12 X 1

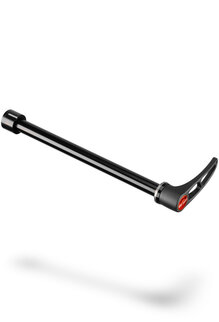

RWS 10 ALU THRU AXLE 142MM / Ø 12MM
HWQASM00S3632S- Net weight 71 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type E-thru
- Range of use & type RWS MTB
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Length [mm] (L) 171
- Thread length [mm] (G) 11.5
- Thread M12 X 1.5
RWS 10 Alu thru bolt 142mm/Ø12mm
HWQASM00S2961S- Net weight 64 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type RWS MTB
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Length [mm] (L) 167.7
- Thread length [mm] (G) 15
- Thread M12 X 1

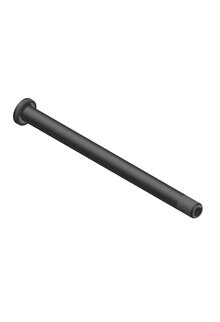

RWS 10 Alu 142mm Ø12 for thru axle Plug-in
HWQASM00S0233S- Net weight 40 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material None
- Product type -
- Range of use & type Plug In RWS MTB - Rod only
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Length [mm] (L) 167.7
- Thread length [mm] (G) 15
- Thread M12 X 1

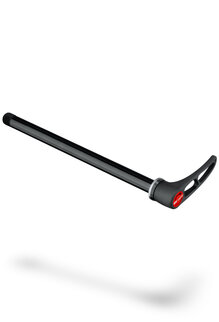

RWS 10 Alu thru axle 142mm/Ø12mm
HWQASM00S2016S- Net weight 63 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type RWS Road
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Length [mm] (L) 163
- Thread length [mm] (G) 13
- Thread M12 X 1.5
RWS 10 Alu 142mm Ø12 for thru axle Plug-in
HWQASM00S2034S- Net weight 68 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type Plug In RWS MTB - Lever & Rod
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Length [mm] (L) 171
- Thread length [mm] (G) 13
- Thread M12 X 1.5
RWS 10 Alu 142mm Ø12 for thru axle Plug-in
HWQASM00S9909S- Net weight 68 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type Plug In RWS MTB - Lever & Rod
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Length [mm] (L) 167.7
- Thread length [mm] (G) 15
- Thread M12 X 1

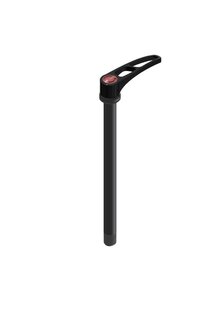

RWS 10 Alu 142mm Ø12 for thru axle Plug-in
HWQASM00S1459S- Net weight 67 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type Plug In RWS Road - Lever & Rod
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Length [mm] (L) 163
- Thread length [mm] (G) 13
- Thread M12 X 1.5

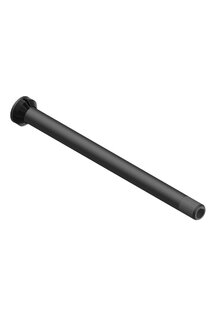

RWS 10 Alu 142mm Ø12 for thru axle, X12, Plug-in
HWQASM00S0236S- Net weight 41 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material None
- Product type -
- Range of use & type Plug In RWS MTB - Rod only
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Length [mm] (L) 162.5
- Thread length [mm] (G) 15
- Thread M12 X 1

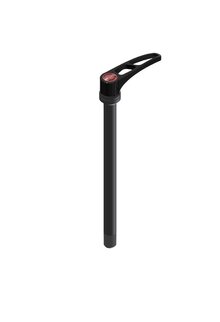

RWS 10 Alu 142mm Ø12 for thru axle, X12, Plug-in
HWQASM00S0234S- Net weight 69 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type X-12
- Range of use & type Plug In RWS MTB - Lever & Rod
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Length [mm] (L) 162.5
- Thread length [mm] (G) 15
- Thread M12 X 1

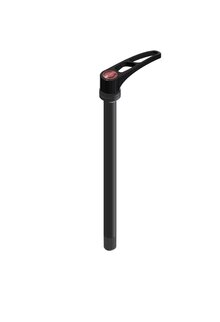

RWS 10 Alu 148mm/Ø12mm for thru axle Plug-In (X12)
HWQASM00S9923S- Net weight 70 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type X-12
- Range of use & type Plug In RWS MTB - Lever & Rod
RWS 10 Alu thru axle 148mm/Ø12mm (X12)
HWQASM00S9566S- Net weight 66 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type X-12
- Range of use & type RWS MTB
RWS 10 Alu thru axle 148mm/Ø12mm
HWQASM00S6778S- Net weight 66 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type RWS MTB

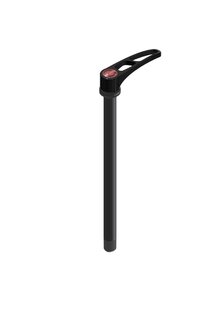

RWS 10 Alu 148mm Ø12 for thru axle Plug-in
HWQASM00S2035S- Net weight 70 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type Plug In RWS MTB - Lever & Rod
RWS 10 Alu thru axle 148mm/Ø12mm
HWQASM00S2155S- Net weight 66 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type RWS MTB
-
