D 232 ONE
Super lightweight and reliable dropper post - an XC-riders dream.
- MSRP US$ from $ 495
- Net weight from 369 g
Product details
Cross country tracks with their constant changes between technical climbs and steep descents demand skills in both directions and not only from the rider. Developed specifically for cross country, the D 232 ONE dropper post is super light, reliable and easy to maintain thanks to UPSIDEDROP technology. The D 232 ONE offers 60 mm travel and thanks to the carbon seat clamp and seat tube it weighs just 369 g. Ready to attack.
- Travel 60 mm
- Material saddle clamp Carbon
- Material seat tube Carbon
Model finder
Just a few clicks to find your model. Please use the filter below.
There are 6 models of this product.
Show all
Hide all
Zoom image

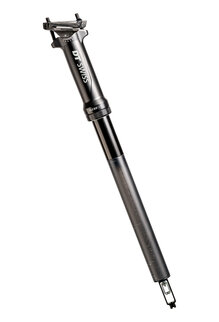

D 232 ONE Ø 27.2 mm 60 mm
D232ODKAADCA29727S- Net weight 369 g
- Max. system weight MTB 130 kg
- ASTM classification MTB 3
- Travel [A] 60 mm
- Seat tube diameter 27.2 mm
- Material saddle clamp Carbon
- Material seat tube Carbon
- Minimum extension [B] 210 mm
- Maximum insertion [G] 190 mm
- Minimum insertion [C] 90 mm
- Maximum extension [F] 310 mm
- Stack height [H] 150 mm
- Length Quickconnector [E] 45 mm
- Total length [D] 400 mm
- Actuation type Mechanical
- Release mechanism Mechanical
- Compatibility L1
- Actuation steps 2, up & down
- Saddle clamp 2-Bolt vertical
-
Inclusive
Carbon Paste
Shifting cable with ferrule
L1 Remote Lever
Zoom image
D 232 ONE Ø 27.2 mm 60 mm
D232ODKAAECA35550S- Net weight 369 g
- Max. system weight MTB 130 kg
- ASTM classification MTB 3
- Travel [A] 60 mm
- Seat tube diameter 27.2 mm
- Material saddle clamp Carbon
- Material seat tube Carbon
- Minimum extension [B] 210 mm
- Maximum insertion [G] 190 mm
- Minimum insertion [C] 90 mm
- Maximum extension [F] 310 mm
- Stack height [H] 150 mm
- Length Quickconnector [E] 45 mm
- Total length [D] 400 mm
- Actuation type Mechanical
- Release mechanism Mechanical
- Compatibility L1
- Actuation steps 2, up & down
- Saddle clamp 2-Bolt vertical
-
Inclusive
Carbon Paste
Shifting cable with ferrule
L1 Trigger handle bar clamp
Zoom image
D 232 ONE Ø 27.2 mm 60 mm
D232ODKAAECA35549S- Net weight 369 g
- Max. system weight MTB 130 kg
- ASTM classification MTB 3
- Travel [A] 60 mm
- Seat tube diameter 27.2 mm
- Material saddle clamp Carbon
- Material seat tube Carbon
- Minimum extension [B] 210 mm
- Maximum insertion [G] 190 mm
- Minimum insertion [C] 90 mm
- Maximum extension [F] 310 mm
- Stack height [H] 150 mm
- Length Quickconnector [E] 45 mm
- Total length [D] 400 mm
- Actuation type Mechanical
- Release mechanism Mechanical
- Compatibility L1
- Actuation steps 2, up & down
- Saddle clamp 2-Bolt vertical
-
Inclusive
Carbon Paste
Shifting cable with ferrule
L1 Trigger Matchmaker
Zoom image

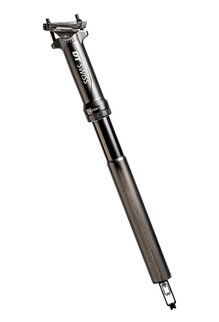

D 232 ONE Ø 30.9 mm 60 mm
D232ODKBADCA29725S- Net weight 369 g
- Max. system weight MTB 130 kg
- ASTM classification MTB 3
- Travel [A] 60 mm
- Seat tube diameter 30.9 mm
- Material saddle clamp Carbon
- Material seat tube Carbon
- Minimum extension [B] 210 mm
- Maximum insertion [G] 190 mm
- Minimum insertion [C] 90 mm
- Maximum extension [F] 310 mm
- Stack height [H] 150 mm
- Length Quickconnector [E] 45 mm
- Total length [D] 400 mm
- Actuation type Mechanical
- Release mechanism Mechanical
- Compatibility L1
- Actuation steps 2, up & down
- Saddle clamp 2-Bolt vertical
-
Inclusive
Carbon Paste
Shifting cable with ferrule
L1 Remote Lever
Zoom image
D 232 ONE Ø 30.9 mm 60 mm
D232ODKBAECA35542S- Net weight 369 g
- Max. system weight MTB 130 kg
- ASTM classification MTB 3
- Travel [A] 60 mm
- Seat tube diameter 30.9 mm
- Material saddle clamp Carbon
- Material seat tube Carbon
- Minimum extension [B] 210 mm
- Maximum insertion [G] 190 mm
- Minimum insertion [C] 90 mm
- Maximum extension [F] 310 mm
- Stack height [H] 150 mm
- Length Quickconnector [E] 45 mm
- Total length [D] 400 mm
- Actuation type Mechanical
- Release mechanism Mechanical
- Compatibility L1
- Actuation steps 2, up & down
- Saddle clamp 2-Bolt vertical
-
Inclusive
Carbon Paste
Shifting cable with ferrule
L1 Trigger handle bar clamp
Zoom image
D 232 ONE Ø 30.9 mm 60 mm
D232ODKBAECA35540S- Net weight 369 g
- Max. system weight MTB 130 kg
- ASTM classification MTB 3
- Travel [A] 60 mm
- Seat tube diameter 30.9 mm
- Material saddle clamp Carbon
- Material seat tube Carbon
- Minimum extension [B] 210 mm
- Maximum insertion [G] 190 mm
- Minimum insertion [C] 90 mm
- Maximum extension [F] 310 mm
- Stack height [H] 150 mm
- Length Quickconnector [E] 45 mm
- Total length [D] 400 mm
- Actuation type Mechanical
- Release mechanism Mechanical
- Compatibility L1
- Actuation steps 2, up & down
- Saddle clamp 2-Bolt vertical
-
Inclusive
Carbon Paste
Shifting cable with ferrule
L1 Trigger Matchmaker
