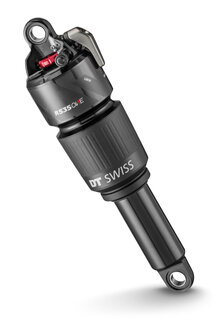

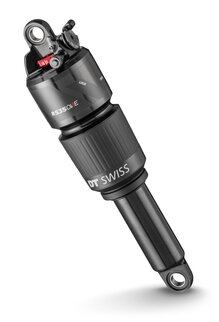

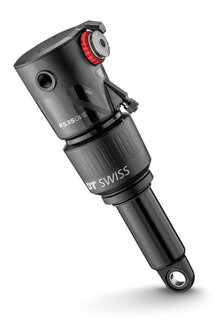

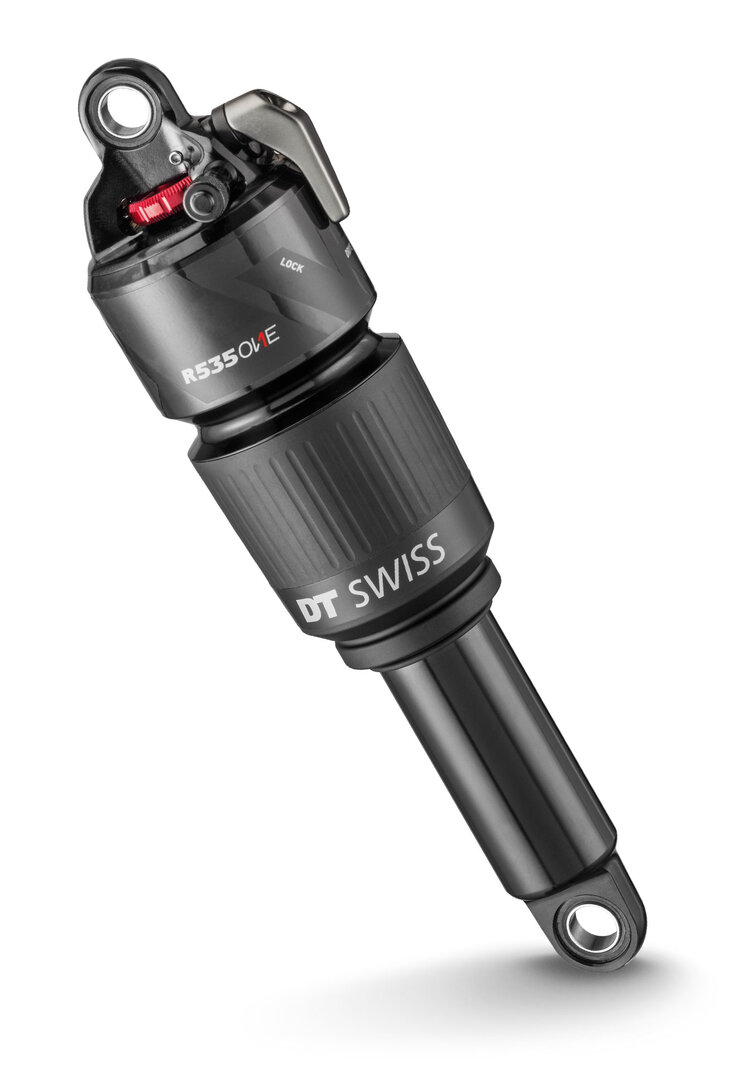

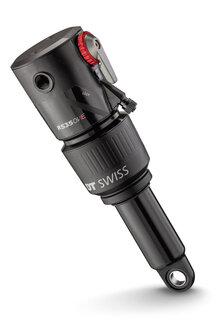

R 535 ONE

3 damping modes and increased small bump sensitivity to find flow on the trails.

  • MSRP US$ from $ 449
  • Net weight from 300 g
  • from € 449
  • from CHF 473
Product details

Product details

Driven by the passion to find flow on the trail, the R 535 ONE gets a replacement of the bypass in the air chambers. This allows the All Mountain shock to benefit from increased sensitivity to small shocks and therefore makes trail riding even more comfortable, without impacting the mid- and end-stroke support. The shock is equipped with the INCONTROL system and features 3 different damping modes that can be managed by a lever.

DU Bushings Enhancing compatibility, DU Bushings also enable shock bolt diameters in 8 or 10 mm.
incontrol Damping can be adjusted during the ride with 3 precise positions.
Dial wheel Dial wheel enabling an easy shock rebound adjusting.

535 platform

Driven by passion

Technologies

technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

lineair shock
TECHNOLOGY

Learn more

INcontrol Shock
TECHNOLOGY

Learn more
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Installation length

02

Travel

03

Bearing type

04

Remote

There are 12 models of this product.
Show all
Hide all
Zoom image

R 535 ONE 165/40 mm trunnion mount "MM" lever DU

C535OCLECESA44798S
General
  • Net weight 325 g
  • Installation length [A] 165 mm
  • Travel [H] 40 mm
  • Mounting system Trunnion mount
  • Bearing type DU bushing
Spring & Damping
  • Spring technology LINEAIR
  • Damping technology INCONTROL O.D.L.
  • Setup compression-rebound medium-medium
  • Remote Lever
Inclusive
  • Inclusive -
Zoom image

R 535 ONE 190/40 mm standard mount "MM" lever DU

C535ODLECESA44819S

  • Net weight 300 g
  • Installation length [A] 190 mm
  • Travel [H] 40 mm
  • Mounting system Standard mount
  • Bearing type DU bushing

  • Spring technology LINEAIR
  • Damping technology INCONTROL O.D.L.
  • Setup compression-rebound medium-medium
  • Remote Lever

  • Inclusive -
Zoom image

R 535 ONE 165/45 mm trunnion mount "MM" lever DU

C535OCMECESA44801S

  • Net weight 325 g
  • Installation length [A] 165 mm
  • Travel [H] 45 mm
  • Mounting system Trunnion mount
  • Bearing type DU bushing

  • Spring technology LINEAIR
  • Damping technology INCONTROL O.D.L.
  • Setup compression-rebound medium-medium
  • Remote Lever

  • Inclusive -
Zoom image

R 535 ONE 190/45 mm standard mount "MM" lever DU

C535ODMECESA44820S

  • Net weight 300 g
  • Installation length [A] 190 mm
  • Travel [H] 45 mm
  • Mounting system Standard mount
  • Bearing type DU bushing

  • Spring technology LINEAIR
  • Damping technology INCONTROL O.D.L.
  • Setup compression-rebound medium-medium
  • Remote Lever

  • Inclusive -
Zoom image

R 535 ONE 185/50 mm trunnion mount "MM" lever DU

C535ONDECESA44805S

  • Net weight 345 g
  • Installation length [A] 185 mm
  • Travel [H] 50 mm
  • Mounting system Trunnion mount
  • Bearing type DU bushing

  • Spring technology LINEAIR
  • Damping technology INCONTROL O.D.L.
  • Setup compression-rebound medium-medium
  • Remote Lever

  • Inclusive -
Zoom image

R 535 ONE 210/50 mm standard mount "MM" lever DU

C535OJDECESA44821S

  • Net weight 320 g
  • Installation length [A] 210 mm
  • Travel [H] 50 mm
  • Mounting system Standard mount
  • Bearing type DU bushing

  • Spring technology LINEAIR
  • Damping technology INCONTROL O.D.L.
  • Setup compression-rebound medium-medium
  • Remote Lever

  • Inclusive -
Zoom image

R 535 ONE 185/55 mm trunnion mount "MM" lever DU

C535ONEECESA44806S

  • Net weight 345 g
  • Installation length [A] 185 mm
  • Travel [H] 55 mm
  • Mounting system Trunnion mount
  • Bearing type DU bushing

  • Spring technology LINEAIR
  • Damping technology INCONTROL O.D.L.
  • Setup compression-rebound medium-medium
  • Remote Lever

  • Inclusive -
Zoom image

R 535 ONE 210/55 mm standard mount "MM" lever DU

C535OJEECESA44822S

  • Net weight 320 g
  • Installation length [A] 210 mm
  • Travel [H] 55 mm
  • Mounting system Standard mount
  • Bearing type DU bushing

  • Spring technology LINEAIR
  • Damping technology INCONTROL O.D.L.
  • Setup compression-rebound medium-medium
  • Remote Lever

  • Inclusive -
Zoom image

R 535 ONE 205/60 mm trunnion mount "MM" lever DU

C535OOGECESA44809S

  • Net weight 365 g
  • Installation length [A] 205 mm
  • Travel [H] 60 mm
  • Mounting system Trunnion mount
  • Bearing type DU bushing

  • Spring technology LINEAIR
  • Damping technology INCONTROL O.D.L.
  • Setup compression-rebound medium-medium
  • Remote Lever

  • Inclusive -
Zoom image

R 535 ONE 230/60 mm standard mount "MM" lever DU

C535OMGECESA44823S

  • Net weight 340 g
  • Installation length [A] 230 mm
  • Travel [H] 60 mm
  • Mounting system Standard mount
  • Bearing type DU bushing

  • Spring technology LINEAIR
  • Damping technology INCONTROL O.D.L.
  • Setup compression-rebound medium-medium
  • Remote Lever

  • Inclusive -
Zoom image

R 535 ONE 205/65 mm trunnion mount "MM" lever DU

C535OOJECESA44810S

  • Net weight 365 g
  • Installation length [A] 205 mm
  • Travel [H] 65 mm
  • Mounting system Trunnion mount
  • Bearing type DU bushing

  • Spring technology LINEAIR
  • Damping technology INCONTROL O.D.L.
  • Setup compression-rebound medium-medium
  • Remote Lever

  • Inclusive -
Zoom image

R 535 ONE 230/65 mm standard mount "MM" lever DU

C535OMJECESA44824S

  • Net weight 340 g
  • Installation length [A] 230 mm
  • Travel [H] 65 mm
  • Mounting system Standard mount
  • Bearing type DU bushing

  • Spring technology LINEAIR
  • Damping technology INCONTROL O.D.L.
  • Setup compression-rebound medium-medium
  • Remote Lever

  • Inclusive -
