5 mm
Maximum stiffness and highest safety- the RWS quick release for road and MTB.
Product details
Our patented RWS axle system is stiffer, safer and easier to use than conventional quick release axles. The RWS quick release is absolutely reliable and offers a strong connection to the frame. The perfect choice for anyone who is looking for maximum performance and safety.
- Range of use & type RWS MTB, RWS MTB & Road, RWS Road
- Lever material Aluminum
Model finder
Just a few clicks to find your model. Please use the filter below.

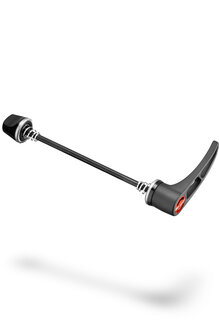

RWS 10 Alu MTB 100mm/Ø5mm
HWQASM00S2932S- Net weight 50 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type RWS MTB & Road
- Axle system 5 mm RWS
- Built-in dimension 100 mm
- Length [mm] (L) 112
- Thread length [mm] (G) 22
- Thread M5 X 0.8
RWS 10 Alu MTB titan 100mm/Ø5mm
HWQASM00S2953S- Net weight 44 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type RWS MTB & Road
- Axle system 5 mm RWS
- Built-in dimension 100 mm
- Length [mm] (L) 112
- Thread length [mm] (G) 22
- Thread M5 X 0.8

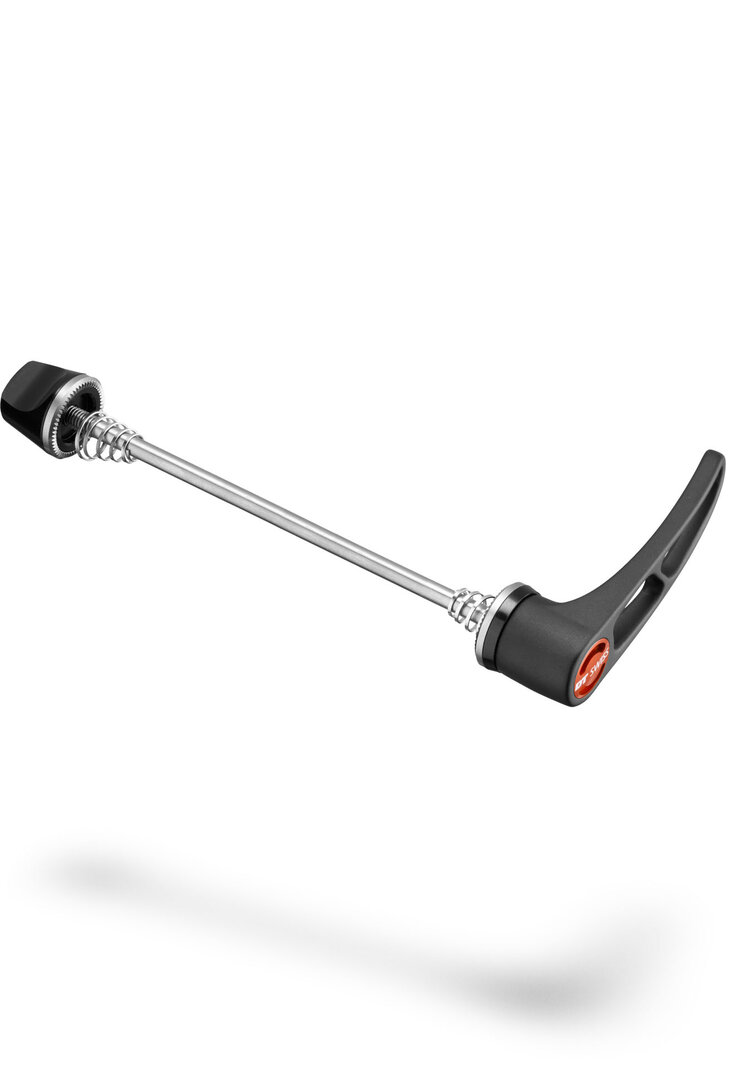

RWS 10 ALU ROAD ML TITAN 130MM/Ø5MM ASM
HWQASM00S1052S- Net weight 46 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type RWS Road
- Axle system 5 mm RWS
- Built-in dimension 130 mm
- Length [mm] (L) 145
- Thread length [mm] (G) 22
- Thread M5 X 0.8
RWS 10 ALU ROAD ML STEEL 130mm/Ø5mm ASM
HWQASM00S1050S- Net weight 53 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type RWS Road
- Axle system 5 mm RWS
- Built-in dimension 130 mm
- Length [mm] (L) 145
- Thread length [mm] (G) 22
- Thread M5 X 0.8

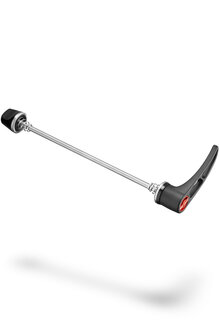

RWS 10 Alu MTB titan 135mm/Ø5mm
HWQASM00S2940S- Net weight 47 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type RWS MTB
- Axle system 5 mm RWS
- Built-in dimension 135 mm
- Length [mm] (L) 148
- Thread length [mm] (G) 22
- Thread M5 X 0.8

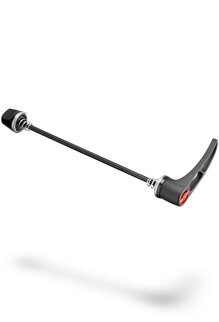

RWS 10 Alu MTB 135mm/Ø5mm
HWQASM00S2943S- Net weight 54 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type RWS MTB
- Axle system 5 mm RWS
- Built-in dimension 135 mm
- Length [mm] (L) 148
- Thread length [mm] (G) 22
- Thread M5 X 0.8

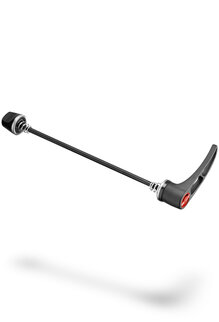

RWS 10 Alu tandem steel 145mm/Ø5mm
HWQASM00S3338S- Net weight 55 g
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Lever material Aluminum
- Product type -
- Range of use & type RWS MTB
- Axle system 5 mm RWS
- Built-in dimension 145 mm
- Length [mm] (L) 157
- Thread length [mm] (G) 22
- Thread M5 X 0.8
-
