ERC 1400 DICUT®
The versatile wheelset for your next Endurance ride.
- MSRP per set US$ from $ 2399
- Weight per set from 1379 g
- Brake interface Disc Brake
- from € 2049
- from CHF 2157
Product details
Wherever the road takes you, the all-new ERC wheels with their AERO+
optimized rim profiles allow you to stay in control during your extended
endurance ride. Kilometers will pass by, almost effortless when riding
on wider and comfortable tires of up to 32 mm width. Each pedal force is
transferred into propulsion and speed onto the 240 DICUT Aero hub by the
reliable Ratchet EXP freehub system and DT aero comp t-head spokes.
Simply enjoy your ride along the way.
ERC 1400 DICUT 35: fast and light. An agile wheelset for your
variable ride, also suitable for KOM chasers.
ERC 1400 DICUT 45: Aero-optimized wheelset with mid-height rim
for longer rides on various terrains along your route. Ride comfortably
and handle your bike safely even in fast descends.
- Hub type 240 with Ratchet EXP 36
- Rim Carbon, Hooked / Crotchet tubeless TC
- Rim height 35 mm, 45 mm
- Spokes DT aero comp® t-head




Model finder
Just a few clicks to find your model. Please use the filter below.

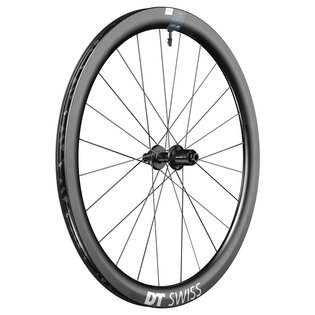

ERC 1400 DICUT db 45 12/142 mm Shimano
WERC140NIDICA18230- Net weight 823 g
- recommended System weight max. 120 kg
- ASTM classification 2
- Recommended for e-bikes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 45 mm
- Decal type Waterslide
- Inner Width 22 mm
- Outer width 28.5 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
-
Freehub body
Shim. RD. 11SP Light (ASL11)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 25 mm
TL valve alu black 36-48 mm
SRAM XDR Road freehub body kit
Valve guard

ERC 1400 DICUT db 35 12/142 mm Shimano
WERC140NIDICA18235- Net weight 798 g
- recommended System weight max. 120 kg
- ASTM classification 2
- Recommended for e-bikes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 35 mm
- Decal type Waterslide
- Inner Width 22 mm
- Outer width 28.5 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
-
Freehub body
Shim. RD. 11SP Light (ASL11)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 25 mm
TL valve alu black 26-35 mm
SRAM XDR Road freehub body kit
Valve guard

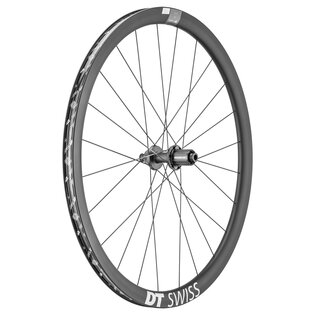

ERC 1400 DICUT 650b db 35 12/142 mm Shimano
WERC140NJDICA19271- Net weight 749 g
- recommended System weight max. 120 kg
- ASTM classification 2
- Recommended for e-bikes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Rim Height 35 mm
- Decal type Waterslide
- Inner Width 22 mm
- Outer width 28.5 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
-
Freehub body
Shim. RD. 11SP Light (ASL11)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 25 mm
TL valve alu black 26-35 mm
SRAM XDR Road freehub body kit
Valve guard

ERC 1400 DICUT db 45 12/100 mm
WERC140AIDXCA18229- Net weight 705 g
- recommended System weight max. 120 kg
- ASTM classification 2
- Recommended for e-bikes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 45 mm
- Decal type Waterslide
- Inner Width 22 mm
- Outer width 28.5 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 25 mm
TL valve alu black 36-48 mm
Valve guard

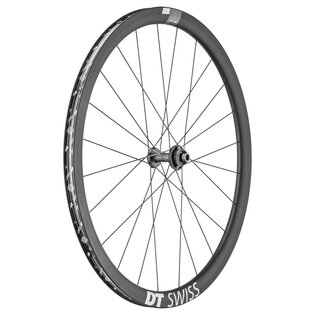

ERC 1400 DICUT db 35 12/100 mm
WERC140AIDXCA18234- Net weight 679 g
- recommended System weight max. 120 kg
- ASTM classification 2
- Recommended for e-bikes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 35 mm
- Decal type Waterslide
- Inner Width 22 mm
- Outer width 28.5 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 25 mm
TL valve alu black 26-35 mm
Valve guard

ERC 1400 DICUT 650b db 35 12/100 mm
WERC140AJDXCA19270- Net weight 630 g
- recommended System weight max. 120 kg
- ASTM classification 2
- Recommended for e-bikes -
- Material Carbon
- Rim joint -
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Rim Height 35 mm
- Decal type Waterslide
- Inner Width 22 mm
- Outer width 28.5 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® t-head
- Spokes right DT aero comp® t-head
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 25 mm
TL valve alu black 26-35 mm
Valve guard
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Extended guarantee conditions for Carbon Wheels
According to your selection ERC 1400 DICUT® we found 6 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
