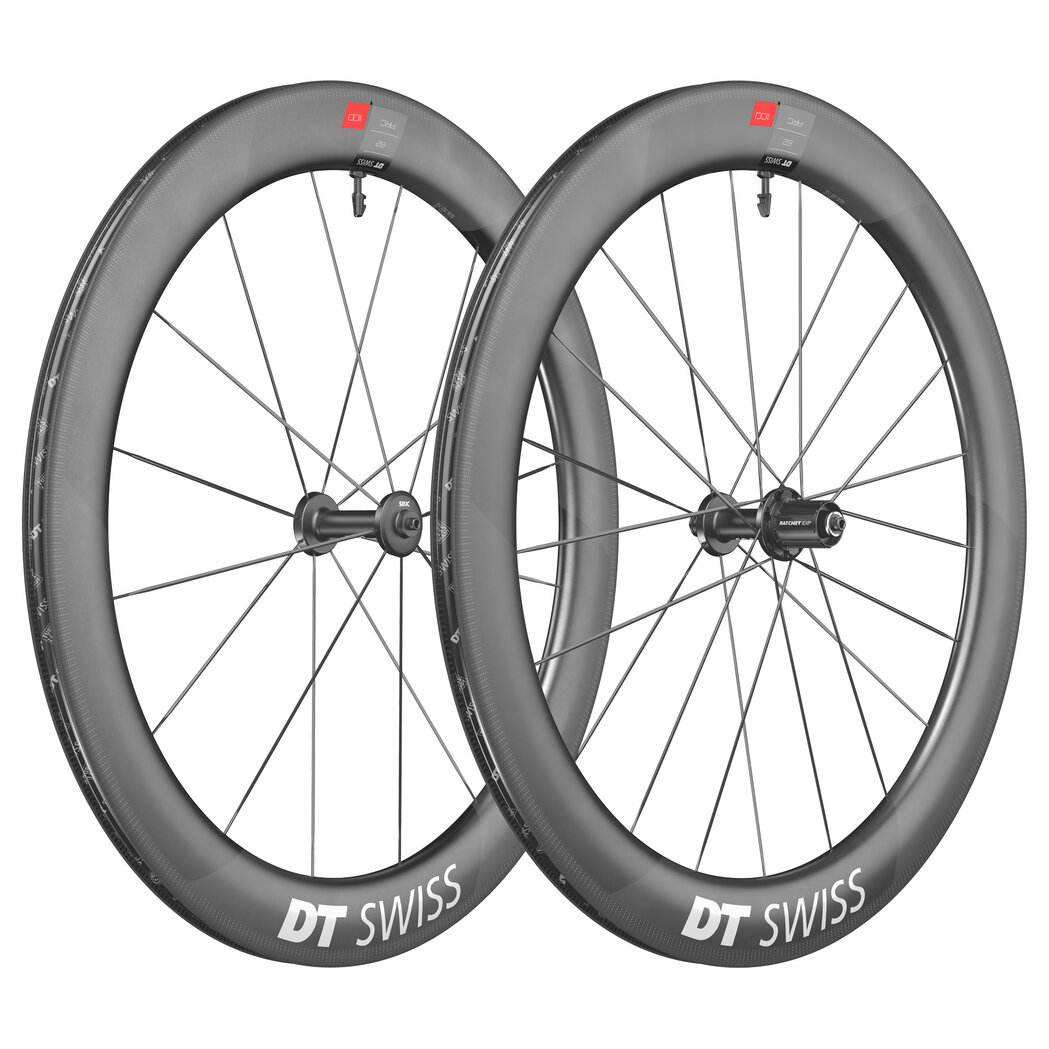

ARC 1100 DICUT®

The ARC 1100 DICUT wheels are made to go flat out fast.

  • MSRP per set US$ from $ 2971
  • Weight per set from 1490 g
Product details

Product details

Available in three different rim depths – 80, 62 & 48 mm – and rim brake as well as disc brake versions our new aero line-up leaves nothing to be desired. Supreme aero-stability and minimal aero drag support the complete system of the rider and his bike. Built up from highest quality DT Swiss components the ARC 1100 DICUT wheels give you the reliability you need – no matter if it’s for a 180 km IRONMAN bike split or your local time trail.

  • Hub type 240 with Ratchet System 36 SL
  • Rim Carbon, Clincher
  • Rim height 48 mm, 62 mm, 80 mm
  • Spokes DT aero comp® straightpull, DT aerolite® straightpull
Technologies

AERO

#FLATOUTFAST

To us aero means minimal drag in all conditions, allowing you to go faster than ever. Without any compromises in handling, stiffness and braking performance, creating the most efficient and complete system.

technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

SINC Ceramic
Technology

read

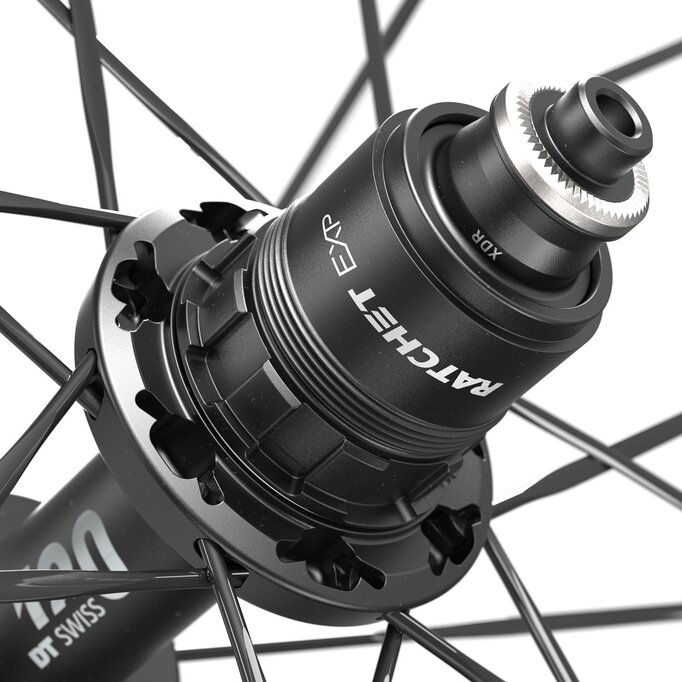

Ratchet System
Technology

Read

Prolock
Technology

Read
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

04

Axle system

05

Built-in dimension

There are 12 models of this product.
Show all
Hide all
REAR WHEEL

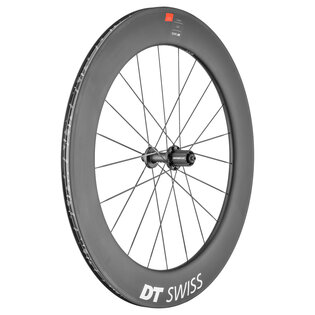

ARC 1100 DICUT 80 5/130 mm Shimano

WARC110HRQJCA04418
General
  • Net weight 922 g
  • recommended system weight max. 100 kg
  • ASTM classification 1
Rim Hub
  • Hub type 240
  • Axle system 5 mm quick release
  • Built-in dimension 130 mm
  • Brake interface Non disc
  • Freehub body Shim. RD. 11SP Light S ASLS11
  • Freehub system Ratchet System 36 SL
Spokes & Nipples
  • Spokes DT aero comp® Straightpull
  • Spoke pattern Radial / Two-cross (2:1)
  • Nipples DT Pro Lock hidden aluminum
Inclusive
  • Inclusive RWS Titan
    Tubeless tape 19 mm
    TL valve alu black 66-80 mm
    SRAM XDR Road freehub body kit
    Swissstop black prince
    valve guard
    wheel bag
REAR WHEEL

ARC 1100 DICUT db 80 12/142 mm Shimano

WARC110NIDJCA04388

  • Net weight 946 g
  • recommended system weight max. 110 kg
  • ASTM classification 1

  • Hub type 240
  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Brake interface Disc Center Lock
  • Freehub body Shim. RD. 11SP Light S ASLS11
  • Freehub system Ratchet System 36 SL

  • Spokes DT aero comp® Straightpull
  • Spoke pattern 2-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 19 mm
    TL valve alu black 66-80 mm
    IS 6-bolt adapter Road
    SRAM XDR Road freehub body kit
    5 mm endcap Kit
    valve guard
    wheel bag
REAR WHEEL

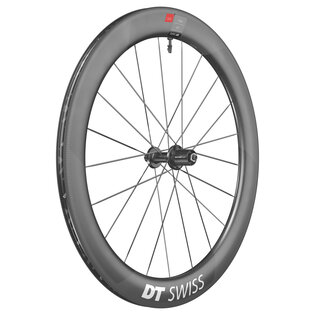

ARC 1100 DICUT 62 5/130 mm Shimano

WARC110HRQJCA04420

  • Net weight 878 g
  • recommended system weight max. 100 kg
  • ASTM classification 1

  • Hub type 240
  • Axle system 5 mm quick release
  • Built-in dimension 130 mm
  • Brake interface Non disc
  • Freehub body Shim. RD. 11SP Light S ASLS11
  • Freehub system Ratchet System 36 SL

  • Spokes DT aero comp® Straightpull
  • Spoke pattern Radial / Two-cross (2:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive RWS Titan
    Tubeless tape 19 mm
    SRAM XDR Road freehub body kit
    Swissstop black prince
    tubeless valve and refill kit
    valve guard
    wheel bag
REAR WHEEL

ARC 1100 DICUT db 62 12/142 mm Shimano

WARC110NIDJCA04392

  • Net weight 867 g
  • recommended system weight max. 110 kg
  • ASTM classification 1

  • Hub type 240
  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Brake interface Disc Center Lock
  • Freehub body Shim. RD. 11SP Light S ASLS11
  • Freehub system Ratchet System 36 SL

  • Spokes DT aero comp® Straightpull
  • Spoke pattern 2-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 19 mm
    IS 6-bolt adapter Road
    SRAM XDR Road freehub body kit
    5 mm endcap Kit
    tubeless valve and refill kit
    valve guard
    wheel bag
REAR WHEEL

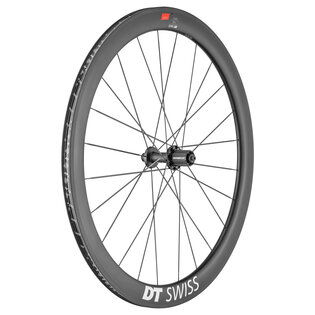

ARC 1100 DICUT 48 5/130 mm Shimano

WARC110HRQJCA04422

  • Net weight 825 g
  • recommended system weight max. 100 kg
  • ASTM classification 1

  • Hub type 240
  • Axle system 5 mm quick release
  • Built-in dimension 130 mm
  • Brake interface Non disc
  • Freehub body Shim. RD. 11SP Light S ASLS11
  • Freehub system Ratchet System 36 SL

  • Spokes DT aero comp® Straightpull
  • Spoke pattern Radial / Three-cross (2:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive RWS Titan
    Tubeless tape 19 mm
    SRAM XDR Road freehub body kit
    Swissstop black prince
    tubeless valve and refill kit
    valve guard
    wheel bag
REAR WHEEL

ARC 1100 DICUT db 48 12/142 mm Shimano

WARC110NIDJCA04396

  • Net weight 807 g
  • recommended system weight max. 110 kg
  • ASTM classification 1

  • Hub type 240
  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Brake interface Disc Center Lock
  • Freehub body Shim. RD. 11SP Light S ASLS11
  • Freehub system Ratchet System 36 SL

  • Spokes DT aero comp® Straightpull
  • Spoke pattern 2-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 19 mm
    IS 6-bolt adapter Road
    SRAM XDR Road freehub body kit
    5 mm endcap Kit
    tubeless valve and refill kit
    valve guard
    wheel bag
FRONT WHEEL

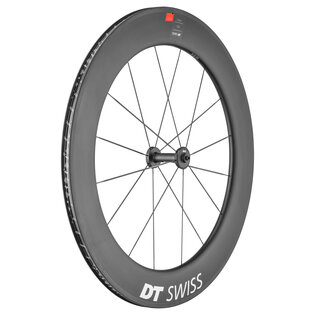

ARC 1100 DICUT 80 5/100 mm

WARC110AAQXCA04417

  • Net weight 786 g
  • recommended system weight max. 100 kg
  • ASTM classification 1

  • Hub type 240
  • Axle system 5 mm quick release
  • Built-in dimension 100 mm
  • Brake interface Non disc
  • Freehub body -
  • Freehub system -

  • Spokes DT aerolite® Straightpull
  • Spoke pattern Radial (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive RWS Titan
    Tubeless tape 19 mm
    TL valve alu black 66-80 mm
    Swissstop black prince
    valve guard
    wheel bag
FRONT WHEEL

ARC 1100 DICUT DB 80 12/100 mm

WARC110AIDXCA04386

  • Net weight 822 g
  • recommended system weight max. 110 kg
  • ASTM classification 1

  • Spokes DT aerolite® Straightpull
  • Spoke pattern 2-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 19 mm
    TL valve alu black 66-80 mm
    IS 6-bolt adapter Road
    5 mm endcap Kit
    valve guard
    wheel bag
FRONT WHEEL

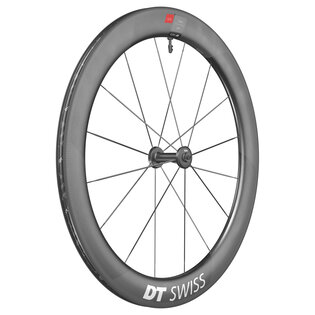

ARC 1100 DICUT 62 5/100 mm

WARC110AAQXCA04419

  • Net weight 719 g
  • recommended system weight max. 100 kg
  • ASTM classification 1

  • Hub type 240
  • Axle system 5 mm quick release
  • Built-in dimension 100 mm
  • Brake interface Non disc
  • Freehub body -
  • Freehub system -

  • Spokes DT aerolite® Straightpull
  • Spoke pattern Radial (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive RWS Titan
    Tubeless tape 19 mm
    Swissstop black prince
    valve guard
    wheel bag
FRONT WHEEL

ARC 1100 DICUT db 62 12/100 mm

WARC110AIDXCA04390

  • Net weight 742 g
  • recommended system weight max. 110 kg
  • ASTM classification 1

  • Spokes DT aerolite® Straightpull
  • Spoke pattern 2-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 19 mm
    IS 6-bolt adapter Road
    5 mm endcap Kit
    valve guard
    wheel bag
FRONT WHEEL

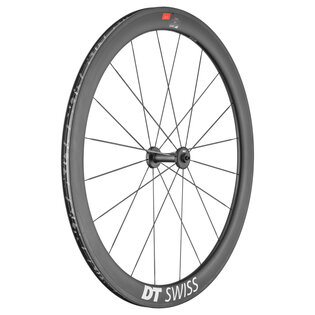

ARC 1100 DICUT 48 5/100 mm

WARC110AAQXCA04421

  • Net weight 686 g
  • recommended system weight max. 100 kg
  • ASTM classification 1

  • Hub type 240
  • Axle system 5 mm quick release
  • Built-in dimension 100 mm
  • Brake interface Non disc
  • Freehub body -
  • Freehub system -

  • Spokes DT aerolite® Straightpull
  • Spoke pattern Radial (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive RWS Titan
    Tubeless tape 19 mm
    Swissstop black prince
    valve guard
    wheel bag
FRONT WHEEL

ARC 1100 DICUT db 48 12/100 mm

WARC110AIDXCA04394

  • Net weight 683 g
  • recommended system weight max. 110 kg
  • ASTM classification 1

  • Spokes DT aerolite® Straightpull
  • Spoke pattern 2-cross (1:1)
  • Nipples DT Pro Lock hidden aluminum

  • Inclusive Tubeless tape 19 mm
    IS 6-bolt adapter Road
    5 mm endcap Kit
    valve guard
    wheel bag

Wheel guide

Support

Product support

Find manuals, how-to videos and helpful online forms here.

According your selection ARC 1100 DICUT® we found 12 models. Select the model for which you need product support.
