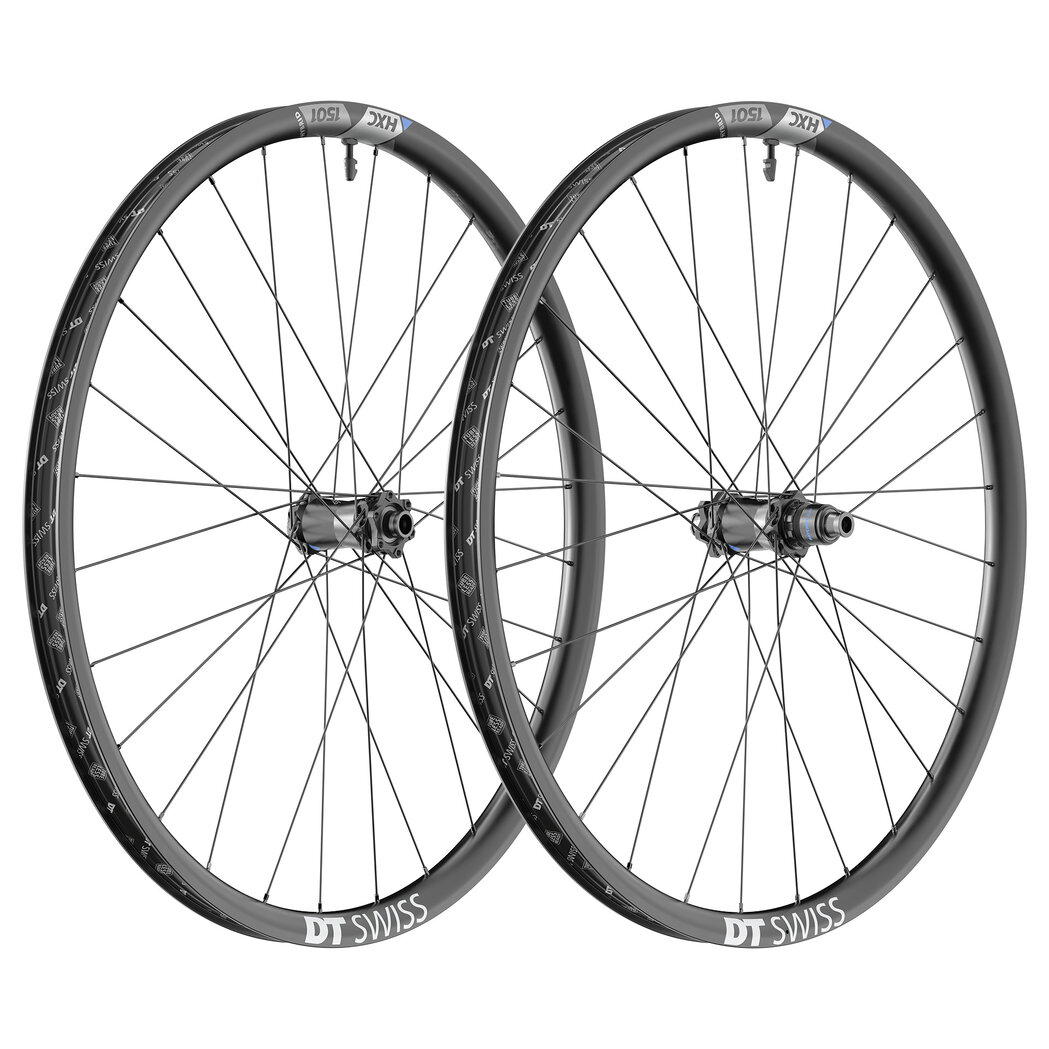

HXC 1501 SPLINE® ONE

Built to extend your eMTB adventures - a carbon wheelset with high-end technology.

  • MSRP per set US$ from $ 2238
  • Weight per set from 1786 g
Product details

Product details

This Hybrid wheelset was made for riders who are looking for the ultimate performance an eMTB wheelset can offer. Now with a carbon rim, the HXC 1501 SPLINE ONE becomes the high-end Hybrid MTB wheelset in the DT Swiss portfolio. The carbon rim is combined with a redesigned hub shell, offering better drive and brake moment resistance, which occurs from the bigger motors and the heavier eMTBs. With the new Ratchet EXP OS system with 30 teeth, the torque developed by the motor and the rider is transmitted directly from the pedals to the ground. This transfer is enabled through reinforced spokes for even sharper accelerations than the previous Hybrid range. Every component has been thought out, developed and tested to ensure a fun, stress-free ride at all levels.

  • Hub type 240 with Ratchet EXP OS 30
  • Rim Carbon, Hookless tubeless TSS
  • Inner width 30 mm, 35 mm
  • Spokes DT hybrid 2
Technologies

hybrid mtb
BUILT TO EXTEND

The DT Swiss mission to bring e-bike riders the components they need continues and now becomes even broader.

technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

Tubeless
Technology

Read

Prolock
Technology

Read

engagement angle
technology

Learn more

ratchet EXP OS
TECHNOLOGY

Bearing
technology

Learn more
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

03

Axle system

04

Built-in dimension

05

Freehub body

There are 24 models of this product.
Show all
Hide all
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 29 - 30 mm IS 12/148 mm SRAM

WHXC150TFDNCA18297
General
  • Net weight 1020 g
  • recommended system weight max. 140 kg
  • ASTM classification 4
Rim
  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 29" / 700C
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm

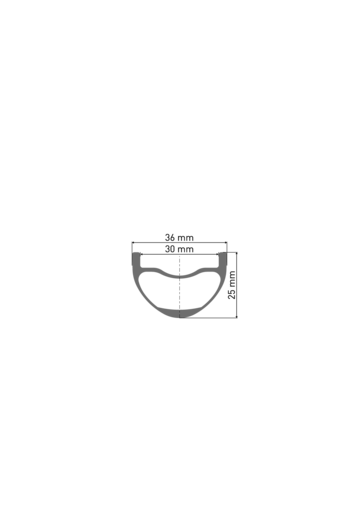

  • Cross-section
Hub Spokes & Nipples
  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu
Inclusive
  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 29 - 30 mm IS 12/148 mm Shimano

WHXC150TFD3CA18296

  • Net weight 1033 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 29" / 700C
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 29 - 30 mm IS 12/148 mm Shimano

WHXC150TFDSCA19981

  • Net weight 1051 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 29" / 700C
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 29 - 30 mm CL 12/148 mm SRAM

WHXC150TEDNCA18294

  • Net weight 1011 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 29" / 700C
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 29 - 30 mm CL 12/148 mm Shimano

WHXC150TED3CA18286

  • Net weight 1025 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 29" / 700C
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 29 - 30 mm CL 12/148 mm Shimano

WHXC150TEDSCA19980

  • Net weight 1042 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 29" / 700C
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 27.5 - 30 mm IS 12/148 mm SRAM

WHXC150THDNCA18284

  • Net weight 973 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 27.5 - 30 mm IS 12/148 mm Shimano

WHXC150THD3CA18283

  • Net weight 986 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 27.5 - 30 mm IS 12/148 mm Shimano

WHXC150THDSCA19977

  • Net weight 1004 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 27.5 - 30 mm CL 12/148 mm SRAM

WHXC150TGDNCA18281

  • Net weight 964 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 27.5 - 30 mm CL 12/148 mm Shimano

WHXC150TGD3CA18280

  • Net weight 978 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 27.5 - 30 mm CL 12/148 mm Shimano

WHXC150TGDSCA19976

  • Net weight 995 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 27.5 - 35 mm IS 12/148 mm SRAM

WHXC150THDNCA19201

  • Net weight 1031 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 35 mm
  • Outer width 41 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 27.5 - 35 mm IS 12/148 mm Shimano

WHXC150THD3CA19200

  • Net weight 1044 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 35 mm
  • Outer width 41 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 27.5 - 35 mm IS 12/148 mm Shimano

WHXC150THDSCA19979

  • Net weight 1062 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 35 mm
  • Outer width 41 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 27.5 - 35 mm CL 12/148 mm SRAM

WHXC150TGDNCA19198

  • Net weight 1022 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 35 mm
  • Outer width 41 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 27.5 - 35 mm CL 12/148 mm Shimano

WHXC150TGD3CA19197

  • Net weight 1036 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 35 mm
  • Outer width 41 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    TL valve alu black 18-25 mm
Zoom image
REAR WHEEL

HXC 1501 SPLINE ONE 27.5 - 35 mm CL 12/148 mm Shimano

WHXC150TGDSCA19978

  • Net weight 1053 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 35 mm
  • Outer width 41 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    TL valve alu black 18-25 mm
Zoom image
FRONT WHEEL

HXC 1501 SPLINE ONE 29 - 30 mm IS 15/110 mm

WHXC150BFIXCA18295

  • Net weight 878 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 29" / 700C
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
FRONT WHEEL

HXC 1501 SPLINE ONE 29 - 30 mm CL 15/110 mm

WHXC150BEIXCA18285

  • Net weight 869 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 29" / 700C
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
FRONT WHEEL

HXC 1501 SPLINE ONE 27.5 - 30 mm IS 15/110 mm

WHXC150BHIXCA18282

  • Net weight 831 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
FRONT WHEEL

HXC 1501 SPLINE ONE 27.5 - 30 mm CL 15/110 mm

WHXC150BGIXCA18279

  • Net weight 822 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 30 mm
  • Outer width 36 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 32 mm
    TL valve alu black 18-25 mm
Zoom image
FRONT WHEEL

HXC 1501 SPLINE ONE 27.5 - 35 mm IS 15/110 mm

WHXC150BHIXCA19199

  • Net weight 889 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 35 mm
  • Outer width 41 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    TL valve alu black 18-25 mm
Zoom image
FRONT WHEEL

HXC 1501 SPLINE ONE 27.5 - 35 mm CL 15/110 mm

WHXC150BGIXCA19196

  • Net weight 880 g
  • recommended system weight max. 140 kg
  • ASTM classification 4

  • Material Carbon
  • Rim joint -
  • Tire interface Hookless tubeless TSS
  • Valve hole Presta
  • Rim Diameter 27.5" / 650B
  • Decal type Waterslide
  • Inner Width 35 mm
  • Outer width 41 mm
  • Cross-section

  • Spokes left DT hybrid 2
  • Spokes right DT hybrid 2
  • Spoke pattern Three-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 37 mm
    TL valve alu black 18-25 mm

WHEEL GUIDES

Each rim has its own specific characteristics. Find out what suits your needs the best!

Product support

Product support

Manuals, spareparts & conversion.

According to your selection HXC 1501 SPLINE® ONE we found 24 models. Select the model for which you need product support.

Experience

Ratchet exp os

Play

Nathalie schneitter

"In my active time as a professional cross country rider, I could always rely on DT Swiss wheels. When I decided to ride eMTB races, it was therefore already clear to me to trust in DT Swiss wheels. DT Swiss was the first manufacturer that offered specific eMTB wheels for the 2017 model year. Without a large team in the background, I must be able to rely 100 % on my equipment. The DT Swiss Hybrid wheels have accompanied me in recent years in all my activities without failures and now, feedback from the most diverse scenarios has been incorporated  into the development of the new generation. When it comes to wheels, I can always rely on DT Swiss."



Photo Credit: Gaudenz Danuser
