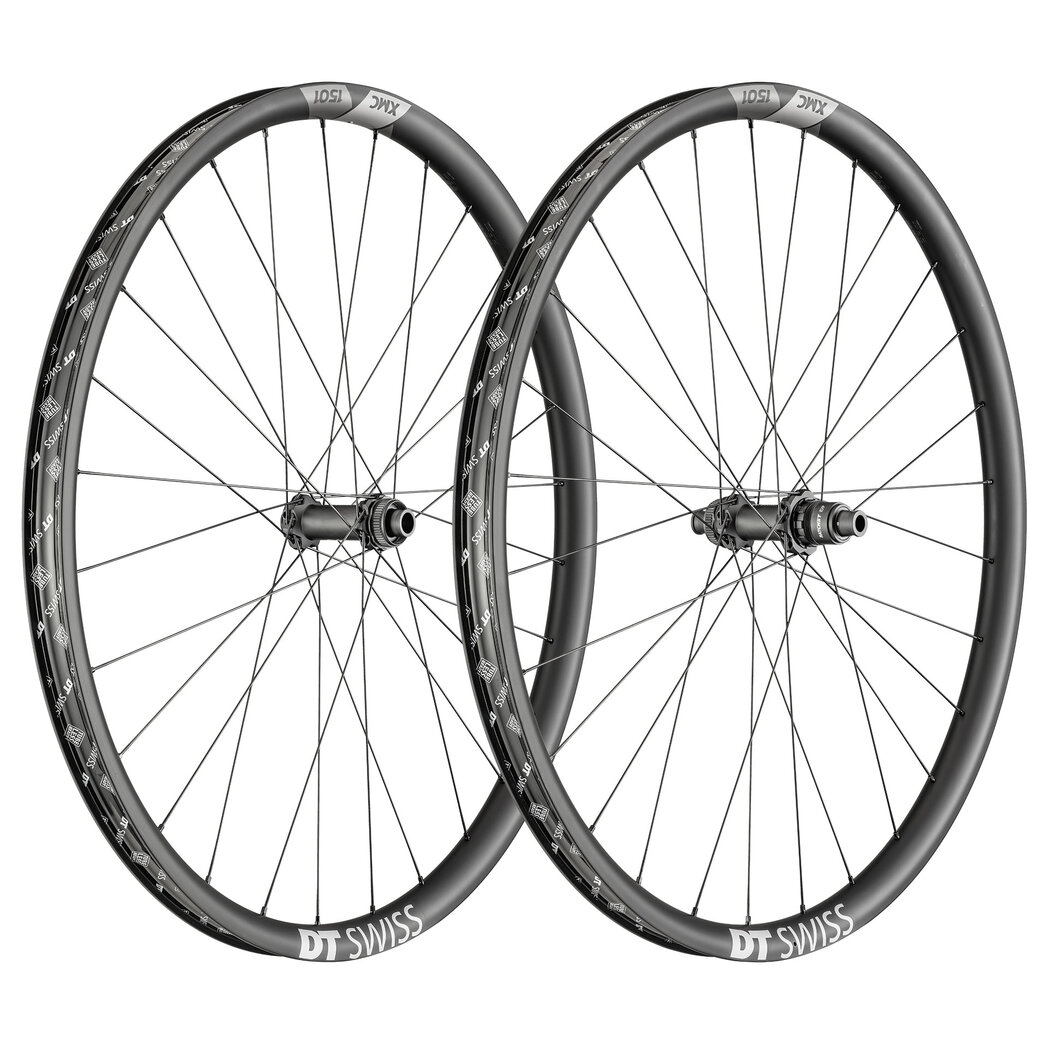

XMC 1501 SPLINE® ONE
Our all rounder. A 240 hub combined with a carbon rim results in a durable and versatile package.
- MSRP per set US$ from $ 1999
- Weight per set from 1565 g
Product details
The low weight of the carbon rim, specially designed for all-mountain use, combined with the latest evolution of the 240 hub with RATCHET EXP freewheel, make the XMC 1501 SPLINE ONE wheels the perfect partner in crime for all kinds of mountain adventures. The 30mm inner width of the tubeless optimized carbon rim provides excellent support for the wide tubeless tire. Double-butted competition race spokes and the highest quality wheel construction round off our XMC 1501 SPLINE ONE wheels.
- Hub type 240 with Ratchet EXP 36
- Rim Carbon, Hookless tubeless TSS
- Inner width 30 mm
- Spokes DT competition® race straightp




Model finder
Just a few clicks to find your model. Please use the filter below.

XMC 1501 SPLINE ONE 29 - 30 mm CL 12/148 mm Sram
WXMC150TEDRCA11483- Net weight 864 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Material Carbon
- Rim joint -
- Tire interface Hookless tubeless TSS
- Valve hole Presta
- Rim Diameter 29" / 700C
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 36 mm
-

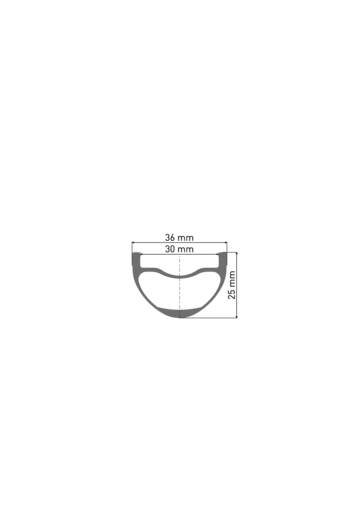

Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface Sram XD
-
Freehub body
SRAM XD MTB (ASRAM)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT competition® race straightp
- Spokes right DT competition® race straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
TL valve alu black 18-25 mm
IS 6-bolt adapter MTB
Shim Micro Spline freehub kit

XMC 1501 SPLINE ONE 27.5 - 30 mm CL 12/148 mm Sram
WXMC150TGDRCA11486- Net weight 827 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Material Carbon
- Rim joint -
- Tire interface Hookless tubeless TSS
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface Sram XD
-
Freehub body
SRAM XD MTB (ASRAM)
(mounted) - Freehub system Ratchet EXP 36
- Spokes left DT competition® race straightp
- Spokes right DT competition® race straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
TL valve alu black 18-25 mm
IS 6-bolt adapter MTB
Shim Micro Spline freehub kit

XMC 1501 SPLINE ONE 29 - 30 mm CL 15/110 mm
WXMC150BEIXCA11487- Net weight 775 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Material Carbon
- Rim joint -
- Tire interface Hookless tubeless TSS
- Valve hole Presta
- Rim Diameter 29" / 700C
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT competition® race straightp
- Spokes right DT competition® race straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
TL valve alu black 18-25 mm
IS 6-bolt adapter MTB

XMC 1501 SPLINE ONE 27.5 - 30 mm CL 15/110 mm
WXMC150BGIXCA11478- Net weight 738 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Material Carbon
- Rim joint -
- Tire interface Hookless tubeless TSS
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT competition® race straightp
- Spokes right DT competition® race straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
TL valve alu black 18-25 mm
IS 6-bolt adapter MTB
