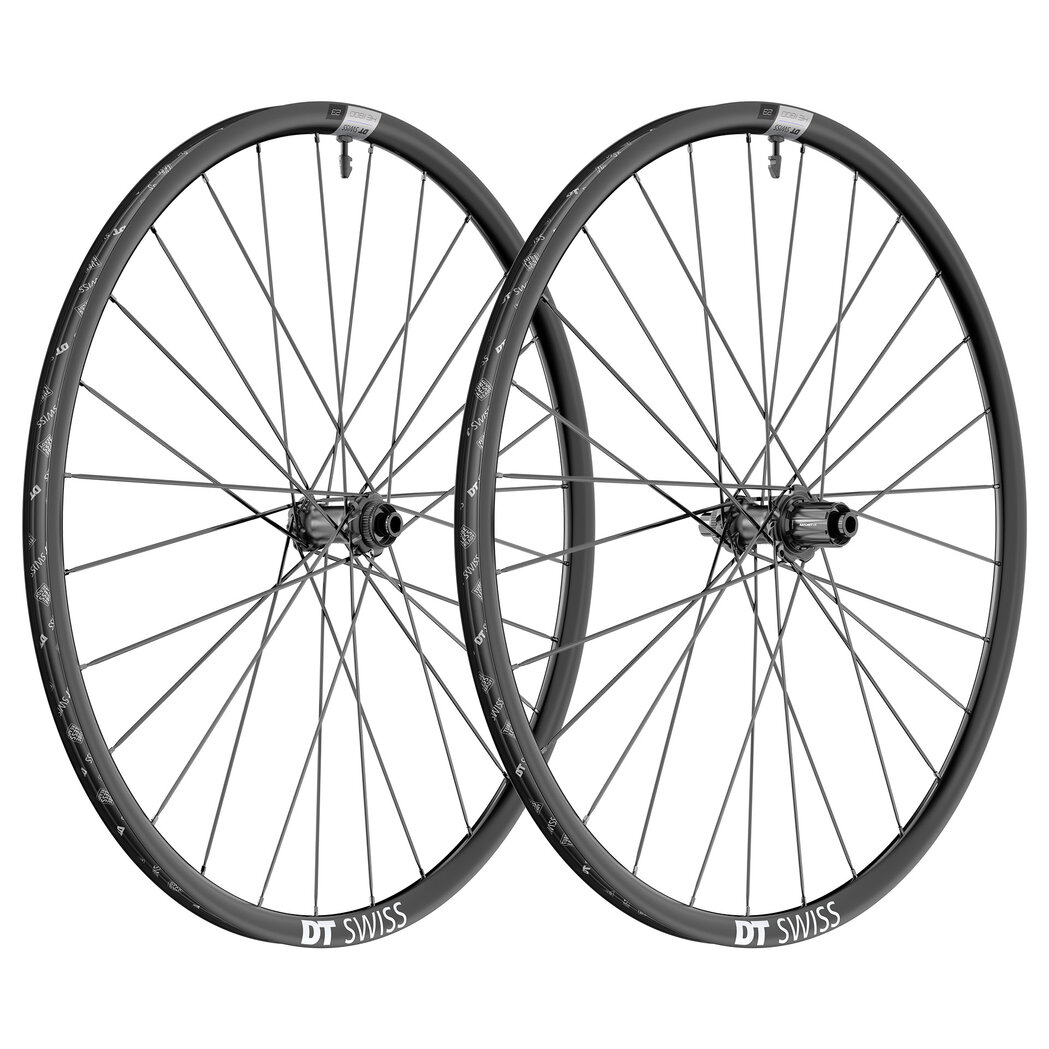

HE 1800 SPLINE®
Built to assist in the joy of cycling.
- MSRP per set US$ from $ 583
- Weight per set from 1922 g
- Brake interface Disc Brake
- from € 460
- from CHF 484
Product details
When a tailwind is missing, an e-road bike can assist in experiencing the joy found on long rides. The HE 1800 SPLINE is built specifically to assist the demands of e-road bikes. The sleeved rim with a large inner width supports wide tires for an ideal mix of comfort, traction and robustness. The reinforced spokes and hub ensure durability while the Ratchet LN freehub system offers reliable power transmission thanks to simultaneous engagement. The result is a robust and durable wheelset that will let the rider focus on one single thing, enjoying the ride.
- Hub type 370 with Ratchet LN 18
- Rim Aluminum, Hooked / Crotchet tubeless TC
- Rim height 23 mm
- Spokes DT new aero® hybrid straightp
Model finder
Just a few clicks to find your model. Please use the filter below.
There are 5 models of this product.
Show all
Hide all
Zoom image
HE 1800 SPLINE db 23 12/142 mm Shimano
WHE1800NIDMSA24288- Net weight 1037 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Waterslide
- Inner Width 22 mm
- Outer width 26 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet LN 18
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 25 mm
TL valve alu black 18-25 mm
Zoom image
HE 1800 SPLINE db 23 12/142 mm Sram XDR
WHE1800NID1SA24691- Net weight 1014 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Waterslide
- Inner Width 22 mm
- Outer width 26 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet LN 18
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 25 mm
TL valve alu black 18-25 mm
Zoom image
HE 1800 SPLINE db 23 12/148 mm Shimano
WHE1800TIDMSA24289- Net weight 1042 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Waterslide
- Inner Width 22 mm
- Outer width 26 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet LN 18
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 25 mm
TL valve alu black 18-25 mm
Zoom image
HE 1800 SPLINE db 23 12/100 mm
WHE1800AIDXSA21638- Net weight 908 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Waterslide
- Inner Width 22 mm
- Outer width 26 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 25 mm
TL valve alu black 18-25 mm
Zoom image
HE 1800 SPLINE db 23 12/110 mm
WHE1800BIDXSA21639- Net weight 917 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Waterslide
- Inner Width 22 mm
- Outer width 26 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 25 mm
TL valve alu black 18-25 mm
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
According to your selection HE 1800 SPLINE® we found 5 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
