G 1800 SPLINE®

Overnighter, weekend-ride or long-awaited gravel trip: Step outside and enjoy the freedom to go anywhere. The adventure starts at your doorstep.

  • MSRP per set US$ from $ 492
  • Weight per set from 1806 g
Product details

Product details

The entry into the world of gravel riding - the G 1800 SPLINE 25. If you want to give cycling a try and plan to do your first rides off-road, the G 1800 SPLINE 25 should be your ideal choice of wheels. Combining all the key advantages of our gravel segment wheels at a very attractive price point, these wheels may be your entry into the world of gravel riding. Leave beaten roads behind and opt for unexplored paths, the G 1800 SPLINE 25 will join you!

  • Hub type 370 with 3 Pawl
  • Rim Aluminum, Tubeless crotched/clincher TC
  • Rim height 25 mm
  • Spokes DT aero comp® wide straightp, DT new aero® straightpull
Technologies

GRAVEL - THE NEW CATEGORY

The GRAVEL category marks a new segment within the DT Swiss road-line-up and adds to our holistic approach of covering all segments of road riding with sophisticated and advanced products. Currently the hottest discussed trend in road cycling, we defined this new segment and have developed a benchmark setting product portfolio.

technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

Bearing
technology

Learn more

Tubeless
Technology

Read

Prolock
Technology

Read
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

02

Rim Height

25 mm
04

Axle system

05

Built-in dimension

There are 4 models of this product.
Show all
Hide all
Zoom image

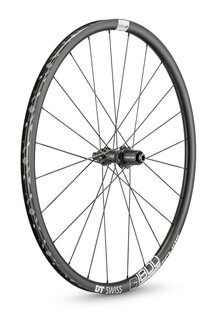

REAR WHEEL

G 1800 SPLINE db 25 12/142 mm Shimano

W0G1800NIDUSA10683
General
  • Net weight 1015 g
  • recommended system weight max. 130 kg
  • ASTM classification 2
Rim Hub Spokes & Nipples
  • Spokes left DT aero comp® wide straightp
  • Spokes right DT new aero® Straightpull
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu
Inclusive
  • Inclusive Tubeless tape 27 mm
    Tubeless valve road 32 mm
    IS 6-bolt adapter Road
    SRAM XDR Road freehub body kit
    5 mm endcap Kit
Zoom image
REAR WHEEL

G 1800 SPLINE 650b db 25 12/142 mm Shimano

W0G1800NJDUSA10686

  • Net weight 971 g
  • recommended system weight max. 130 kg
  • ASTM classification 2

  • Spokes left DT aero comp® wide straightp
  • Spokes right DT new aero® Straightpull
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 27 mm
    Tubeless valve road 32 mm
    IS 6-bolt adapter Road
    SRAM XDR Road freehub body kit
    5 mm endcap Kit
Zoom image

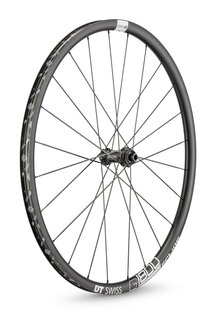

FRONT WHEEL

G 1800 SPLINE db 25 12/100 mm

W0G1800AIDXSA10682

  • Net weight 880 g
  • recommended system weight max. 130 kg
  • ASTM classification 2

  • Spokes left DT new aero® Straightpull
  • Spokes right DT aero comp® wide straightp
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 27 mm
    Tubeless valve road 32 mm
    IS 6-bolt adapter Road
    5 mm endcap Kit
    15 mm endcap kit
Zoom image
FRONT WHEEL

G 1800 SPLINE 650b db 25 12/100 mm

W0G1800AJDXSA10685

  • Net weight 835 g
  • recommended system weight max. 130 kg
  • ASTM classification 2

  • Spokes left DT new aero® Straightpull
  • Spokes right DT aero comp® wide straightp
  • Spoke pattern Two-cross (1:1)
  • Nipples DT Prolock Squorx ProHead alu

  • Inclusive Tubeless tape 27 mm
    Tubeless valve road 32 mm
    IS 6-bolt adapter Road
    5 mm endcap Kit
    15 mm endcap kit

wheel guide

Each rim has its own specific characteristics. Find out what suits your needs the best!

Support

Product support

Manuals, spareparts & conversion.

According to your selection G 1800 SPLINE® we found 4 models. Select the model for which you need product support.

Experience

Test & review

Play

by Liam Mercer

"The DT Swiss G 1800 SPLINE 25 is a bargain gravel wheelset with decent performance and premium looks. The hub has a slow pick up and the set is not especially light, but £350 for a disc-compatible, aero-spoked, thru-axle set of wheels with rims good for 42mm tyres is pretty compelling."

by Mat Brett

"Buy if: You're interested in gravel-specific wheels for off-road exploring, and you don't want to spend a vast amount."

by Rachel Wight

“These are a great choice for those of you building a gravel bike from scratch, and may make a reasonable upgrade too – though if you're looking for a big step up, then look instead at the lighter, though more expensive GR 1600 wheelset.“
