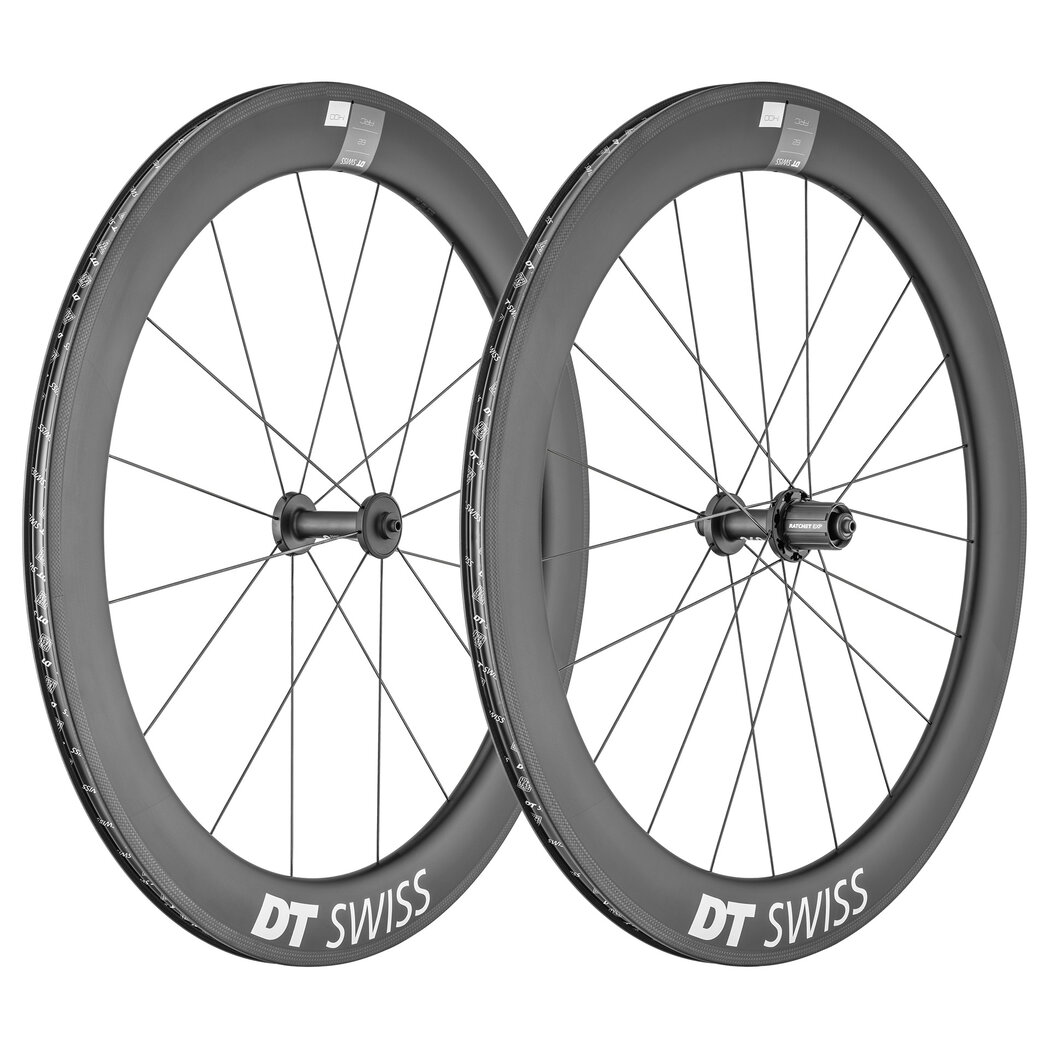

ARC 1400 DICUT®
With the fastest ARC rim brought down to the 1400 hub level, the aero segment is strengthened significantly.
- MSRP per set US$ from $ 2436
- Weight per set from 1552 g
Product details
Developed in partnership with the aerodynamic specialists from SWISS SIDE to help you get up to speed and stay there. Supporting the complete system of rider and bike with minimal drag and superior aero stability in all conditions, for guaranteed fast riding. Finally, the precision wheel build with high and even spoke tension gives you the reliability you need in the race against the clock.
- Hub type 240 with Ratchet System 18
- Rim Carbon, Clincher
- Rim height 48 mm, 62 mm, 80 mm
- Spokes DT aero comp® straightpull
Model finder
Just a few clicks to find your model. Please use the filter below.
There are 12 models of this product.
Show all
Hide all

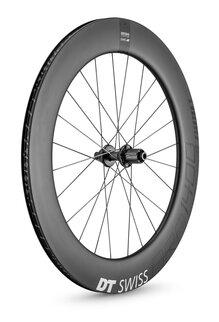

ARC 1400 DICUT db 80 12/142 mm Shimano
WARC140NIDICA07106- Net weight 974 g
- recommended system weight max. 110 kg
- ASTM classification 1
- Material Carbon
- Rim type Clincher
- Rim diameter 29" / 700C
- Rim height 80 mm
- Decal type Waterslide
- Inner width 17 mm
- Outer width 28 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake interface Disc Center Lock
- Freehub body Shim. RD. 11SP Light (ASL11)
- Freehub system Ratchet System 18
- Spokes DT aero comp® Straightpull
- Spoke pattern 2-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 19 mm
TL valve alu black 66-80 mm
IS 6-bolt adapter Road
SRAM XDR Road freehub body kit
5 mm endcap Kit
valve guard

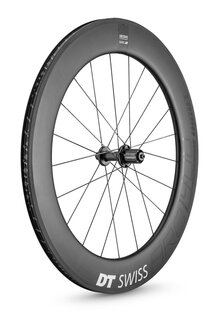

ARC 1400 DICUT 80 5/130 mm Shimano
WARC140HRQICA07103- Net weight 953 g
- recommended system weight max. 100 kg
- ASTM classification 1
- Material Carbon
- Rim type Clincher
- Rim diameter 29" / 700C
- Rim height 80 mm
- Decal type Waterslide
- Inner width 17 mm
- Outer width 28 mm
-
Cross-section
- Hub type 240
- Axle system 5 mm quick release
- Built-in dimension 130 mm
- Brake interface Non disc
- Freehub body Shim. RD. 11SP Light (ASL11)
- Freehub system Ratchet System 18
- Spokes DT aero comp® Straightpull
- Spoke pattern Radial / Two-cross (2:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
RWS Steel
Tubeless tape 19 mm
TL valve alu black 66-80 mm
SRAM XDR Road freehub body kit
Swissstop black prince
valve guard

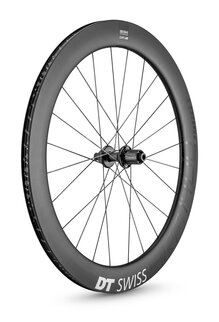

ARC 1400 DICUT db 62 12/142 mm Shimano
WARC140NIDICA07110- Net weight 895 g
- recommended system weight max. 110 kg
- ASTM classification 1
- Material Carbon
- Rim type Clincher
- Rim diameter 29" / 700C
- Rim height 62 mm
- Decal type Waterslide
- Inner width 17 mm
- Outer width 27 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake interface Disc Center Lock
- Freehub body Shim. RD. 11SP Light (ASL11)
- Freehub system Ratchet System 18
- Spokes DT aero comp® Straightpull
- Spoke pattern 2-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 19 mm
TL valve alu black 49-65 mm
IS 6-bolt adapter Road
SRAM XDR Road freehub body kit
5 mm endcap Kit
valve guard

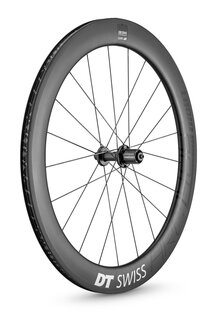

ARC 1400 DICUT 62 5/130 mm Shimano
WARC140HRQICA07108- Net weight 889 g
- recommended system weight max. 100 kg
- ASTM classification 1
- Material Carbon
- Rim type Clincher
- Rim diameter 29" / 700C
- Rim height 62 mm
- Decal type Waterslide
- Inner width 17 mm
- Outer width 27 mm
-
Cross-section
- Hub type 240
- Axle system 5 mm quick release
- Built-in dimension 130 mm
- Brake interface Non disc
- Freehub body Shim. RD. 11SP Light (ASL11)
- Freehub system Ratchet System 18
- Spokes DT aero comp® Straightpull
- Spoke pattern Radial / Two-cross (2:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
RWS Steel
Tubeless tape 19 mm
TL valve alu black 49-65 mm
SRAM XDR Road freehub body kit
Swissstop black prince
valve guard

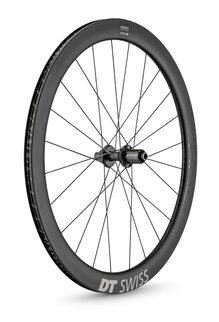

ARC 1400 DICUT db 48 12/142 mm Shimano
WARC140NIDICA07114- Net weight 836 g
- recommended system weight max. 110 kg
- ASTM classification 1
- Material Carbon
- Rim type Clincher
- Rim diameter 29" / 700C
- Rim height 48 mm
- Decal type Waterslide
- Inner width 17 mm
- Outer width 25 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake interface Disc Center Lock
- Freehub body Shim. RD. 11SP Light (ASL11)
- Freehub system Ratchet System 18
- Spokes DT aero comp® Straightpull
- Spoke pattern 2-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 19 mm
TL valve alu black 36-48 mm
IS 6-bolt adapter Road
SRAM XDR Road freehub body kit
5 mm endcap Kit
valve guard

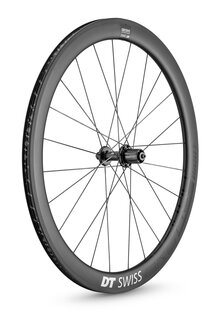

ARC 1400 DICUT 48 5/130 mm Shimano
WARC140HRQICA07112- Net weight 858 g
- recommended system weight max. 100 kg
- ASTM classification 1
- Material Carbon
- Rim type Clincher
- Rim diameter 29" / 700C
- Rim height 48 mm
- Decal type Waterslide
- Inner width 17 mm
- Outer width 25 mm
-
Cross-section
- Hub type 240
- Axle system 5 mm quick release
- Built-in dimension 130 mm
- Brake interface Non disc
- Freehub body Shim. RD. 11SP Light (ASL11)
- Freehub system Ratchet System 18
- Spokes DT aero comp® Straightpull
- Spoke pattern Radial / Three-cross (2:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
RWS Steel
Tubeless tape 19 mm
TL valve alu black 36-48 mm
SRAM XDR Road freehub body kit
Swissstop black prince
valve guard

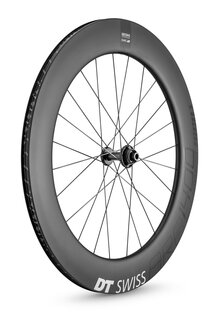

ARC 1400 DICUT db 80 12/100 mm
WARC140AIDXCA07104- Net weight 856 g
- recommended system weight max. 110 kg
- ASTM classification 1
- Material Carbon
- Rim type Clincher
- Rim diameter 29" / 700C
- Rim height 80 mm
- Decal type Waterslide
- Inner width 17 mm
- Outer width 28 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake interface Disc Center Lock
- Freehub body -
- Freehub system -
- Spokes DT aero comp® Straightpull
- Spoke pattern 2-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 19 mm
TL valve alu black 66-80 mm
IS 6-bolt adapter Road
5 mm endcap Kit
valve guard

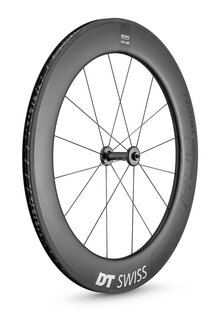

ARC 1400 DICUT 80 5/100 mm
WARC140AAQXCA07102- Net weight 810 g
- recommended system weight max. 100 kg
- ASTM classification 1
- Material Carbon
- Rim type Clincher
- Rim diameter 29" / 700C
- Rim height 80 mm
- Decal type Waterslide
- Inner width 17 mm
- Outer width 28 mm
-
Cross-section
- Hub type 240
- Axle system 5 mm quick release
- Built-in dimension 100 mm
- Brake interface Non disc
- Freehub body -
- Freehub system -
- Spokes DT aero comp® Straightpull
- Spoke pattern Radial (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
RWS Steel
Tubeless tape 19 mm
TL valve alu black 66-80 mm
Swissstop black prince
valve guard

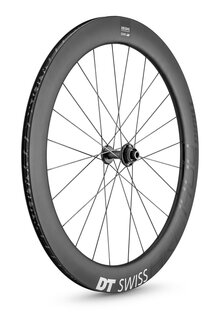

ARC 1400 DICUT db 62 12/100 mm
WARC140AIDXCA07109- Net weight 778 g
- recommended system weight max. 110 kg
- ASTM classification 1
- Material Carbon
- Rim type Clincher
- Rim diameter 29" / 700C
- Rim height 62 mm
- Decal type Waterslide
- Inner width 17 mm
- Outer width 27 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake interface Disc Center Lock
- Freehub body -
- Freehub system -
- Spokes DT aero comp® Straightpull
- Spoke pattern 2-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 19 mm
TL valve alu black 49-65 mm
IS 6-bolt adapter Road
5 mm endcap Kit
valve guard
ARC 1400 DICUT 62 5/100 mm
WARC140AAQXCA07107- Net weight 744 g
- recommended system weight max. 100 kg
- ASTM classification 1
- Material Carbon
- Rim type Clincher
- Rim diameter 29" / 700C
- Rim height 62 mm
- Decal type Waterslide
- Inner width 17 mm
- Outer width 27 mm
-
Cross-section
- Hub type 240
- Axle system 5 mm quick release
- Built-in dimension 100 mm
- Brake interface Non disc
- Freehub body -
- Freehub system -
- Spokes DT aero comp® Straightpull
- Spoke pattern Radial (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
RWS Steel
Tubeless tape 19 mm
TL valve alu black 49-65 mm
Swissstop black prince
valve guard

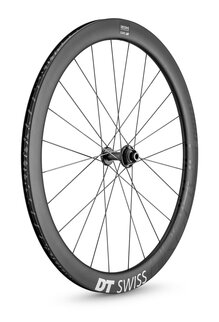

ARC 1400 DICUT db 48 12/100 mm
WARC140AIDXCA07113- Net weight 719 g
- recommended system weight max. 110 kg
- ASTM classification 1
- Material Carbon
- Rim type Clincher
- Rim diameter 29" / 700C
- Rim height 48 mm
- Decal type Waterslide
- Inner width 17 mm
- Outer width 25 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake interface Disc Center Lock
- Freehub body -
- Freehub system -
- Spokes DT aero comp® Straightpull
- Spoke pattern 2-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 19 mm
TL valve alu black 36-48 mm
IS 6-bolt adapter Road
5 mm endcap Kit
valve guard

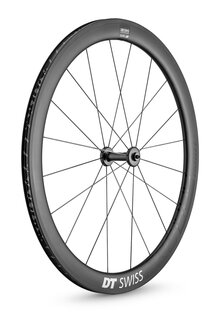

ARC 1400 DICUT 48 5/100 mm
WARC140AAQXCA07111- Net weight 719 g
- recommended system weight max. 100 kg
- ASTM classification 1
- Material Carbon
- Rim type Clincher
- Rim diameter 29" / 700C
- Rim height 48 mm
- Decal type Waterslide
- Inner width 17 mm
- Outer width 25 mm
-
Cross-section
- Hub type 240
- Axle system 5 mm quick release
- Built-in dimension 100 mm
- Brake interface Non disc
- Freehub body -
- Freehub system -
- Spokes DT aero comp® Straightpull
- Spoke pattern Radial (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
RWS Steel
Tubeless tape 19 mm
TL valve alu black 36-48 mm
Swissstop black prince
valve guard
