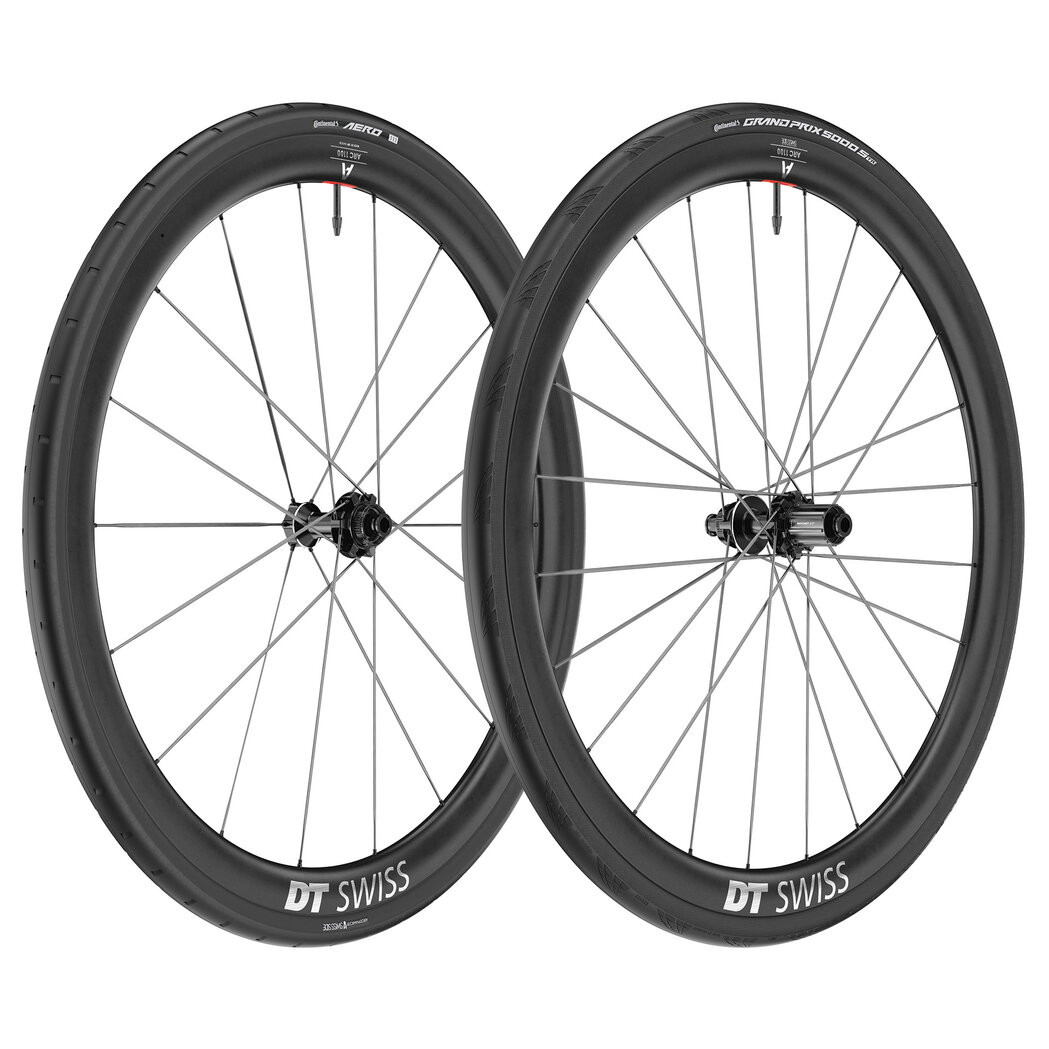

ARC 1100 SPLINE® CS DB
The lightest way up.
- MSRP per set US$ from $ 3 727
- Weight per set from 1174 g
- Brake interface Disc Brake
- from € 3 199
- from CHF 3 199
Product details
The ARC 1100 SPLINE 38 CS reaches new peaks of engineering excellence, with carbon spokes that make it the lightest Aero wheelset available. Every element has been meticulously designed to optimise weight without compromising performance. The refined carbon spokes reduce weight, empowering you to conquer climb after climb. At its core is a new SPLINE hub laced on a 38 mm-high Aero carbon rim, our lightest ever. Produced using our PURE carbon technology, it ensures that, even when the road tilts upwards, you won’t have to fear gravity. For less steep gradients, the aerodynamically optimised profile will propel you to the top faster than ever before.
- Hub type 180 with Ratchet EXP 36
- Rim Carbon, Hooked / Crotchet tubeless TC
- Rim height 38 mm
- Spokes VONOA aero carbon t-head
Model finder
Just a few clicks to find your model. Please use the filter below.

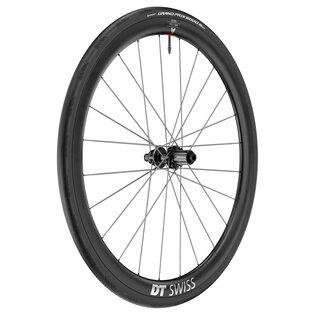

ARC 1100 SPLINE CS db 38 12/142 mm Shimano WTS
WARC110NIDJCA29411- 961 g
- 110 kg
- 1
- No
- Carbon
- -
- Hooked / Crotchet tubeless TC
- Presta
- 29" / 700C
- 38 mm
- 20 mm
- 26 mm
-
- 180
- 12 mm Thru Axle
- 142 mm
- Disc Center Lock
- Shimano ROAD
-
Shim. RD. 11SP Light S ASLS11
(mounted) - Ratchet EXP 36
- VONOA aero carbon t-head
- VONOA aero carbon t-head
- Two-cross (2:1)
- VONOA hidden aluminum
-
Tubeless tape 23 mm
TL valve alu black 36-48 mm
SRAM XDR Road freehub body kit
Valve guard
Wheel bag
CONTINENTAL GP5000 STR 28-622
CONTINENTAL TPU TUBE SV

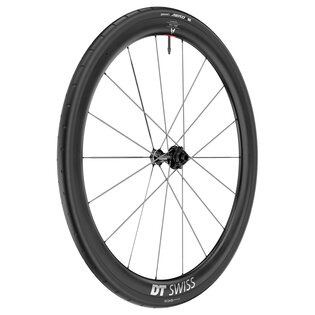

ARC 1100 SPLINE CS db 38 12/100 mm WTS
WARC110AIDXCA29409- 820 g
- 110 kg
- 1
- No
- Carbon
- -
- Hooked / Crotchet tubeless TC
- Presta
- 29" / 700C
- 38 mm
- 20 mm
- 26 mm
-
- 180
- 12 mm Thru Axle
- 100 mm
- Disc Center Lock
- -
- -
- -
- VONOA aero carbon t-head
- VONOA aero carbon t-head
- Radial / Two-cross (2:1)
- VONOA hidden aluminum
-
Tubeless tape 23 mm
TL valve alu black 36-48 mm
Valve guard
Wheel bag
CONTINENTAL AERO 111 26-622
CONTINENTAL TPU TUBE SV
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Find help and answers for frequently asked questions here.
According to your selection ARC 1100 SPLINE® CS DB we found 2 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
Find help and answers for frequently asked questions here.
-
At temperatures of 200 degrees, carbon will start to wave and lose its stability.
The exhaust gases from a car can be up to 500 degrees Celsius. When transporting your carbon wheel with a rear carrier, make sure that there is sufficient distance to avoid such defects!
Contact the manufacturer of your rear carrier for a protective device.
If you discover this deformation on your wheel, contact our Service Centre.
-
DT Swiss sells its products exclusively via official dealers, some of which also have online shops. Please contact your dealer. Or contact the distributor for your country – please use the contact form and select your country first, followed by "Product availability" as the subject.
-
Unfortunately we don't offer discounts; we don't sell directly to private customers. Please contact a dealer. You can find recommended retail prices on our website.
-
Compare the products on our website, where you can find our entire range and all technical specifications. Use the Wheel Finder to find the right wheel in just a few clicks.
Alternatively, contact a dealer – they know all about DT Swiss products and technologies and can advise you.
-
Use our Wheel Finder to find the right wheel for your bike and requirements in only a few steps. If you have any further questions or would like advice, please contact a dealer. They'll be happy to help you.
tHE lIGHTEST WAY UP
