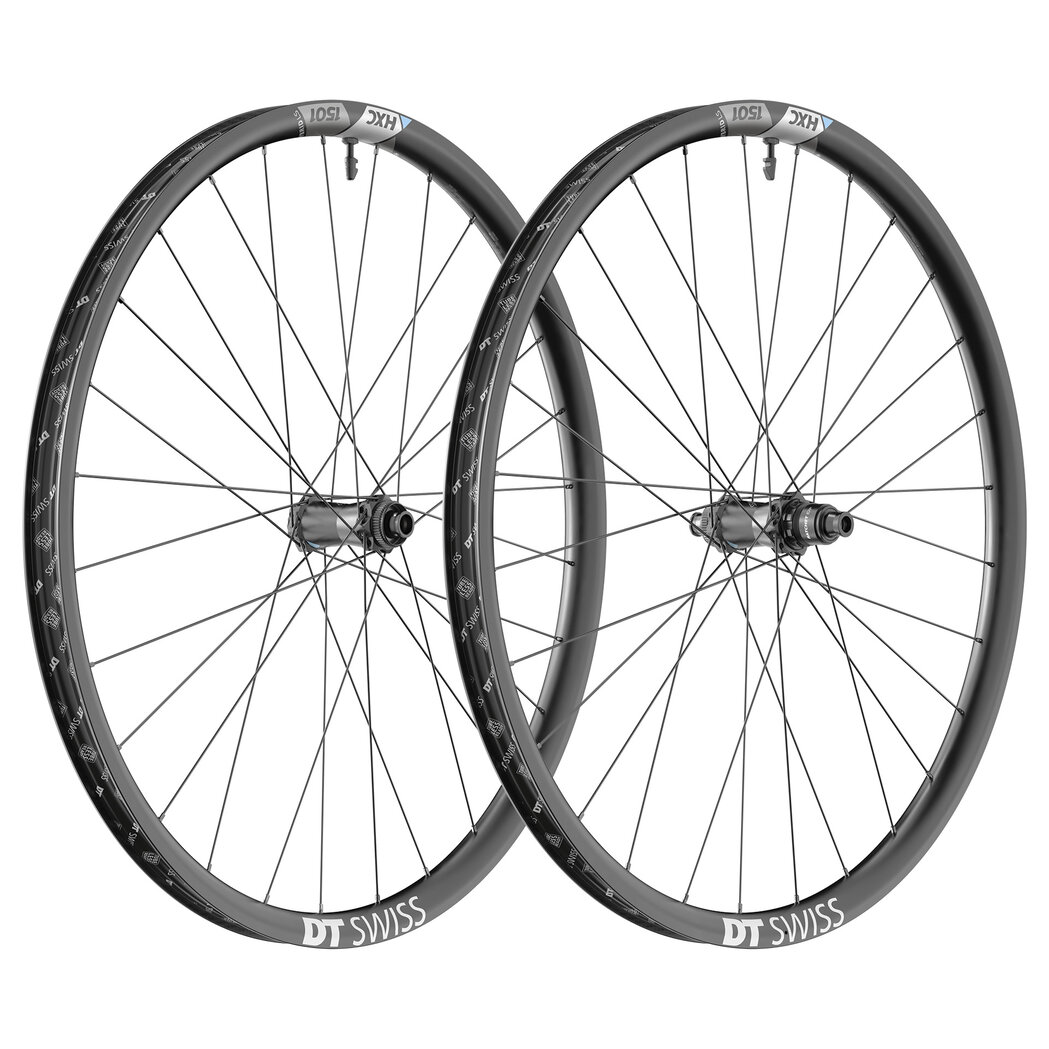

HXC 1501 SPLINE® ONE LS
Built with carbon for outstanding agility.
- MSRP per set US$ from $ 2265
- Weight per set from 1691 g
Product details
These extra lightweight carbon eMTB wheels are engineered for riders looking for outstanding agility. Thanks to the low weight carbon rims, riders benefit from increased agility and dynamism when going uphill and downhill, while withstanding the increased torques of eMTBs. The spokes were designed with specific diameters to align light weight and resistance. Inside the 240 hub, oversized bearings support the additional loads of eMTBs. With the Ratchet EXP OS system, the rider benefits from direct acceleration through a torque-resistant freehub system. Each component has been designed with the specific aim of delivering advanced agility to find flow and fun on the trails.
- Hub type 240 with Ratchet EXP OS 30
- Rim Carbon, Hookless tubeless TSS
- Inner width 30 mm
- Spokes DT hybrid 4 straightpull





Model finder
Just a few clicks to find your model. Please use the filter below.

HXC 1501 SPLINE ONE LS 29 - 30 mm CL 12/148 mm Shimano
WHXC15LTED2CA19517- Net weight 929 g
- recommended System weight max. 130 kg
- ASTM classification 4
- Material Carbon
- Rim joint -
- Tire interface Hookless tubeless TSS
- Valve hole Presta
- Rim Diameter 29" / 700C
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface Shimano Micro Spline
- Freehub body Shim. 12SP Light (ASL12)
- Freehub system Ratchet EXP OS 30
- Spokes left DT hybrid 4 Straightpull
- Spokes right DT hybrid 4 Straightpull
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
TL valve alu black 18-25 mm
IS 6-bolt adapter MTB

HXC 1501 SPLINE ONE LS 29 - 30 mm CL 12/148 mm Sram
WHXC15LTEDRCA19518- Net weight 921 g
- recommended System weight max. 130 kg
- ASTM classification 4
- Material Carbon
- Rim joint -
- Tire interface Hookless tubeless TSS
- Valve hole Presta
- Rim Diameter 29" / 700C
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface Sram XD
- Freehub body SRAM XD MTB (ASRAM)
- Freehub system Ratchet EXP OS 30
- Spokes left DT hybrid 4 Straightpull
- Spokes right DT hybrid 4 Straightpull
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
TL valve alu black 18-25 mm
IS 6-bolt adapter MTB

HXC 1501 SPLINE ONE LS 27.5 - 30 mm CL 12/148 mm Shimano
WHXC15LTGD2CA19514- Net weight 891 g
- recommended System weight max. 130 kg
- ASTM classification 4
- Material Carbon
- Rim joint -
- Tire interface Hookless tubeless TSS
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface Shimano Micro Spline
- Freehub body Shim. 12SP Light (ASL12)
- Freehub system Ratchet EXP OS 30
- Spokes left DT hybrid 4 Straightpull
- Spokes right DT hybrid 4 Straightpull
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
TL valve alu black 18-25 mm
IS 6-bolt adapter MTB

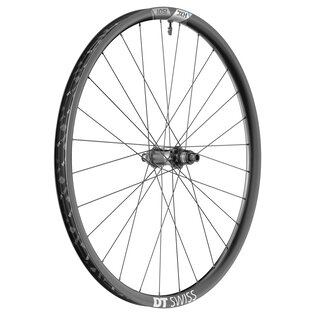

HXC 1501 SPLINE ONE LS 27.5 - 30 mm CL 12/148 mm Sram
WHXC15LTGDRCA19515- Net weight 883 g
- recommended System weight max. 130 kg
- ASTM classification 4
- Material Carbon
- Rim joint -
- Tire interface Hookless tubeless TSS
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface Sram XD
- Freehub body SRAM XD MTB (ASRAM)
- Freehub system Ratchet EXP OS 30
- Spokes left DT hybrid 4 Straightpull
- Spokes right DT hybrid 4 Straightpull
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
TL valve alu black 18-25 mm
IS 6-bolt adapter MTB

HXC 1501 SPLINE ONE LS 29 - 30 mm CL 15/110 mm
WHXC15LBEIXCA19516- Net weight 847 g
- recommended System weight max. 130 kg
- ASTM classification 4
- Material Carbon
- Rim joint -
- Tire interface Hookless tubeless TSS
- Valve hole Presta
- Rim Diameter 29" / 700C
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT hybrid 4 Straightpull
- Spokes right DT hybrid 4 Straightpull
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
TL valve alu black 18-25 mm
IS 6-bolt adapter MTB

HXC 1501 SPLINE ONE LS 27.5 - 30 mm CL 15/110 mm
WHXC15LBGIXCA19513- Net weight 808 g
- recommended System weight max. 130 kg
- ASTM classification 4
- Material Carbon
- Rim joint -
- Tire interface Hookless tubeless TSS
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 36 mm
-
Cross-section
- Hub type 240
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT hybrid 4 Straightpull
- Spokes right DT hybrid 4 Straightpull
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
TL valve alu black 18-25 mm
IS 6-bolt adapter MTB

Product support
Manuals, how-to videos, spareparts & conversion.
According to your selection HXC 1501 SPLINE® ONE LS we found 6 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
ratchet exp os

minu stoffers
mtb rider
«The new HXC 1501 SPLINE ONE LS wheels are so light that you no longer notice the weight of the eMTB. In addition, they are also very suitable for smaller and larger jumps, because they bring stability in the air. These wheels make it possible to ride technical trails faster because they are precise and light, allowing you to react quickly to avoid a root or a rock.»
Photo Credit: Gaudenz Danuser
