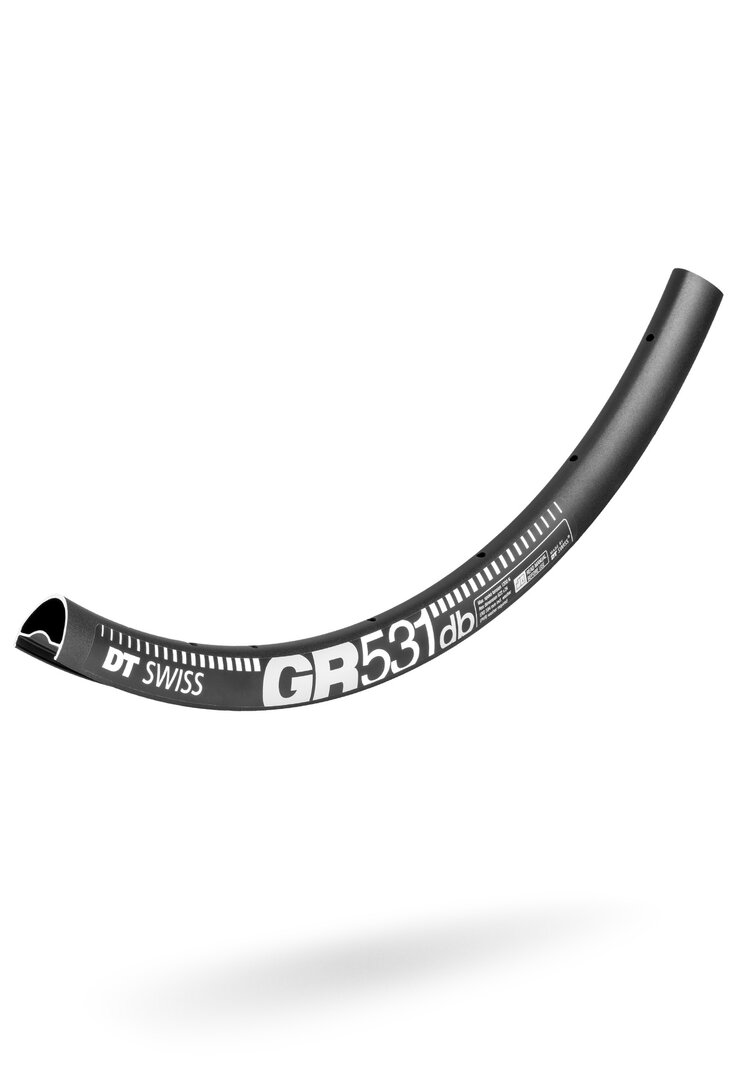

GR 531
You like gravel and wide tires? This is your rim.
- MSRP US$ from $ 128
- Net weight from 500 g
Product details
The GR 531 is made for off-road adventures. The aluminium gravel rim with an inner width of 24 mm is available in two rim dimensions and designed for wide knobby tires up to 53 mm. Torsion-resistant and robust, the welded rim offers a wide range to gravel.
- Material ALUMINIUM
Model finder
Just a few clicks to find your model. Please use the filter below.
There are 6 models of this product.
Show all
Hide all
Zoom image
DT Swiss GR 531 disc brake
RDGR53BDPW24SA0772- Net weight 500 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 556 mm
- Inner Width 24 mm
- Outer width 28 mm
- Rim Height 25 mm
-
Cross-section
- Number of holes 24
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
- Inclusive -
Zoom image
DT Swiss GR 531 disc brake
RDGR53BDPW28SA0773- Net weight 500 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 556 mm
- Inner Width 24 mm
- Outer width 28 mm
- Rim Height 25 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
- Inclusive -
Zoom image
DT Swiss GR 531 disc brake
RDGR53BDPW32SA0774- Net weight 500 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 556 mm
- Inner Width 24 mm
- Outer width 28 mm
- Rim Height 25 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
- Inclusive -
Zoom image
DT Swiss GR 531 disc brake
RDGR53CDPW24SA0775- Net weight 535 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 594 mm
- Inner Width 24 mm
- Outer width 28 mm
- Rim Height 25 mm
-
Cross-section
- Number of holes 24
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
- Inclusive -
Zoom image
DT Swiss GR 531 disc brake
RDGR53CDPW28SA0776- Net weight 535 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 594 mm
- Inner Width 24 mm
- Outer width 28 mm
- Rim Height 25 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
- Inclusive -
Zoom image
DT Swiss GR 531 disc brake
RDGR53CDPW32SA0777- Net weight 535 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 594 mm
- Inner Width 24 mm
- Outer width 28 mm
- Rim Height 25 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
- Inclusive -
