PR 1600 SPLINE®
A wheelset built for tackling the final climb of the day with a smile on your face.
- MSRP per set US$ from $ 758
- Weight per set from 1623 g
- Brake interface Disc Brake, Rim Brake
- from € 559
- from CHF 620
Product details
Performance isn't just about a number on your back and competing against others. It can also be about your own personal challenges. The PR 1600 SPLINE, available in 32 mm or 23 mm rim heights, is made for achieving your personal goals. There are a number of features that make this wheel ideal for getting maximum performance from heavy, powerful riders. The high-quality 350 hubs feature Ratchet System technology, while the 18 mm wide tubeless-compatible rims are both extremely sturdy and very light thanks to the PHR nipple system. This wheel is a reliable partner for your next challenge and is bound to put a smile on your face the second your feet touch the pedals.
- Hub type 350 with Ratchet System 18
- Rim Aluminum, Hooked / Crotchet tubeless TC
- Rim height 23 mm, 32 mm
- Spokes DT aero comp® wide straightp, DT aero comp® wide t-head, DT new aero® straightpull
Model finder
Just a few clicks to find your model. Please use the filter below.

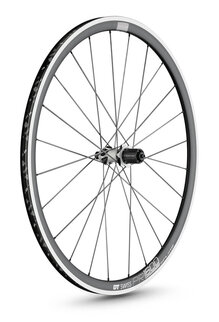

PR 1600 SPLINE 32 5/130 mm Shimano
WPR1600HRQMSA04454- Net weight 972 g
- recommended System weight max. 130 kg
- ASTM classification 1
- Recommended for e-bikes -
- Material Aluminum
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 32 mm
- Decal type Waterslide
- Inner Width 18 mm
- Outer width 21.5 mm
-
Cross-section
- Hub type 350
- Axle system 5 mm quick release
- Built-in dimension 130 mm
- Brake Interface Non disc
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet System 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT new aero® Straightpull
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
RWS ECO Synth.
Tubeless tape 21 mm
Tubeless valve MTB/road 40 mm

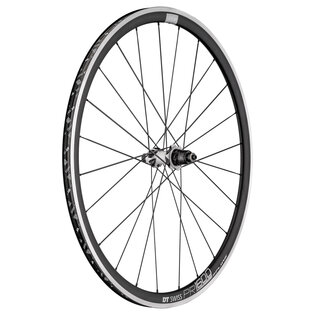

PR 1600 SPLINE 32 5/130 mm Sram XDR
WPR1600HRQ1SA13784- Net weight 953 g
- recommended System weight max. 130 kg
- ASTM classification 1
- Recommended for e-bikes -
- Material Aluminum
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 32 mm
- Decal type Waterslide
- Inner Width 18 mm
- Outer width 21.5 mm
-
Cross-section
- Hub type 350
- Axle system 5 mm quick release
- Built-in dimension 130 mm
- Brake Interface Non disc
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet System 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT new aero® Straightpull
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
RWS ECO Synth.
Tubeless tape 21 mm
Tubeless valve MTB/road 40 mm

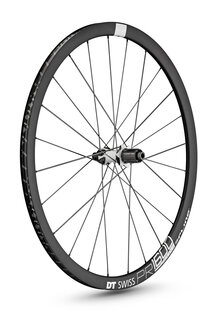

PR 1600 SPLINE db 32 12/142 mm Shimano
WPR1600NIDMSA04452- Net weight 923 g
- recommended System weight max. 130 kg
- ASTM classification 1
- Recommended for e-bikes -
- Material Aluminum
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 32 mm
- Decal type Waterslide
- Inner Width 18 mm
- Outer width 21 mm
-
Cross-section
- Hub type 350
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet System 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 21 mm
Tubeless valve MTB/road 40 mm

PR 1600 SPLINE db 32 12/142 mm Sram XDR
WPR1600NID1SA13785- Net weight 900 g
- recommended System weight max. 130 kg
- ASTM classification 1
- Recommended for e-bikes -
- Material Aluminum
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 32 mm
- Decal type Waterslide
- Inner Width 18 mm
- Outer width 21 mm
-
Cross-section
- Hub type 350
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet System 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 21 mm
Tubeless valve MTB/road 40 mm

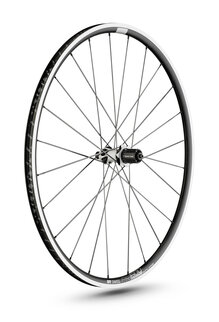

PR 1600 SPLINE 23 5/130 mm Shimano
WPR1600HRQMSA04448- Net weight 899 g
- recommended System weight max. 120 kg
- ASTM classification 1
- Recommended for e-bikes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Waterslide
- Inner Width 18 mm
- Outer width 23 mm
-
Cross-section
- Hub type 350
- Axle system 5 mm quick release
- Built-in dimension 130 mm
- Brake Interface Non disc
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet System 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT new aero® Straightpull
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
RWS ECO Synth.
Tubeless tape 21 mm
Tubeless valve road 32 mm

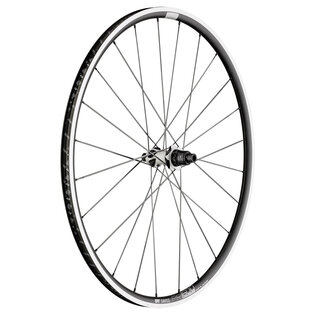

PR 1600 SPLINE 23 5/130 mm Sram XDR
WPR1600HRQ1SA13786- Net weight 880 g
- recommended System weight max. 120 kg
- ASTM classification 1
- Recommended for e-bikes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Waterslide
- Inner Width 18 mm
- Outer width 23 mm
-
Cross-section
- Hub type 350
- Axle system 5 mm quick release
- Built-in dimension 130 mm
- Brake Interface Non disc
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet System 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT new aero® Straightpull
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
RWS ECO Synth.
Tubeless tape 21 mm
Tubeless valve road 32 mm

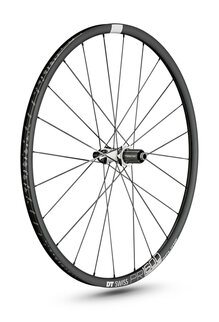

PR 1600 SPLINE db 23 12/142 mm Shimano
WPR1600NIDMSA04446- Net weight 896 g
- recommended System weight max. 120 kg
- ASTM classification 1
- Recommended for e-bikes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Waterslide
- Inner Width 18 mm
- Outer width 22 mm
-
Cross-section
- Hub type 350
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet System 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT new aero® Straightpull
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 21 mm
Tubeless valve road 32 mm

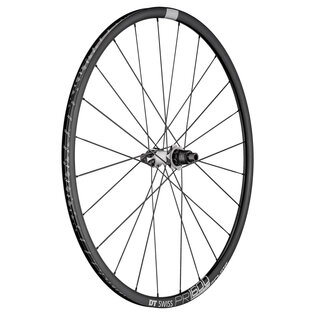

PR 1600 SPLINE db 23 12/142 mm Sram XDR
WPR1600NID1SA13787- Net weight 873 g
- recommended System weight max. 120 kg
- ASTM classification 1
- Recommended for e-bikes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Waterslide
- Inner Width 18 mm
- Outer width 22 mm
-
Cross-section
- Hub type 350
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet System 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT new aero® Straightpull
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 21 mm
Tubeless valve road 32 mm

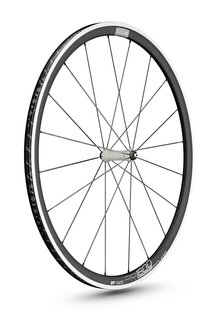

PR 1600 SPLINE 32 5/100 mm
WPR1600AAQXSA04453- Net weight 765 g
- recommended System weight max. 130 kg
- ASTM classification 1
- Recommended for e-bikes -
- Material Aluminum
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 32 mm
- Decal type Waterslide
- Inner Width 18 mm
- Outer width 21.5 mm
-
Cross-section
- Hub type 350
- Axle system 5 mm quick release
- Built-in dimension 100 mm
- Brake Interface Non disc
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® wide t-head
- Spokes right DT aero comp® wide t-head
- Spoke pattern Radial (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
RWS ECO Synth.
Tubeless tape 21 mm
Tubeless valve MTB/road 40 mm

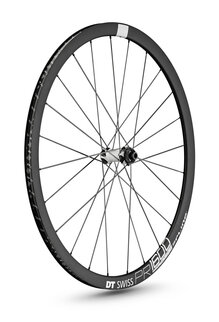

PR 1600 SPLINE db 32 12/100 mm
WPR1600AIDXSA04450- Net weight 794 g
- recommended System weight max. 130 kg
- ASTM classification 1
- Recommended for e-bikes -
- Material Aluminum
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 32 mm
- Decal type Waterslide
- Inner Width 18 mm
- Outer width 21 mm
-
Cross-section
- Hub type 350
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 21 mm
Tubeless valve MTB/road 40 mm

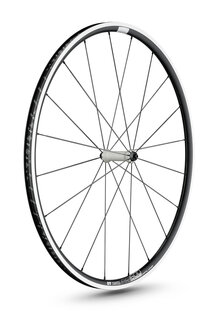

PR 1600 SPLINE 23 5/100 mm
WPR1600AAQXSA04447- Net weight 692 g
- recommended System weight max. 120 kg
- ASTM classification 1
- Recommended for e-bikes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Waterslide
- Inner Width 18 mm
- Outer width 23 mm
-
Cross-section
- Hub type 350
- Axle system 5 mm quick release
- Built-in dimension 100 mm
- Brake Interface Non disc
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® wide t-head
- Spokes right DT aero comp® wide t-head
- Spoke pattern Radial (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
RWS ECO Synth.
Tubeless tape 21 mm
Tubeless valve road 32 mm

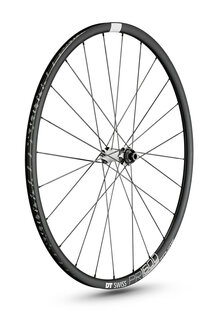

PR 1600 SPLINE db 23 12/100 mm
WPR1600AIDXSA04444- Net weight 750 g
- recommended System weight max. 120 kg
- ASTM classification 1
- Recommended for e-bikes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Waterslide
- Inner Width 18 mm
- Outer width 22 mm
-
Cross-section
- Hub type 350
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 21 mm
Tubeless valve road 32 mm
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
According to your selection PR 1600 SPLINE® we found 12 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
MATTHIAS REUTIMANN
SWISS RACING ACADEMY
«I train an average of 20,000 kilometers per season and my PR 1600 Spline 32 never let me down. They are durable and lasting but also allow me to recreate racing feelins with that "pull forward" dynamic effect, a great driving capacity in corners and a very reactive response for sprints. These wheels set a standard for alloy rims, a concentrate of DT Swiss know-how.»
Photo credits: Swiss Racing Academy / Merot

by robin wilmott«But where the DTs really score is in the versatility their internal width gives, providing more tyre volume, and greater support for rubber of 35mm or more. Their less aggressive, but slick ride quality makes sense here, riding rough surfaces with a taut suppleness.»
