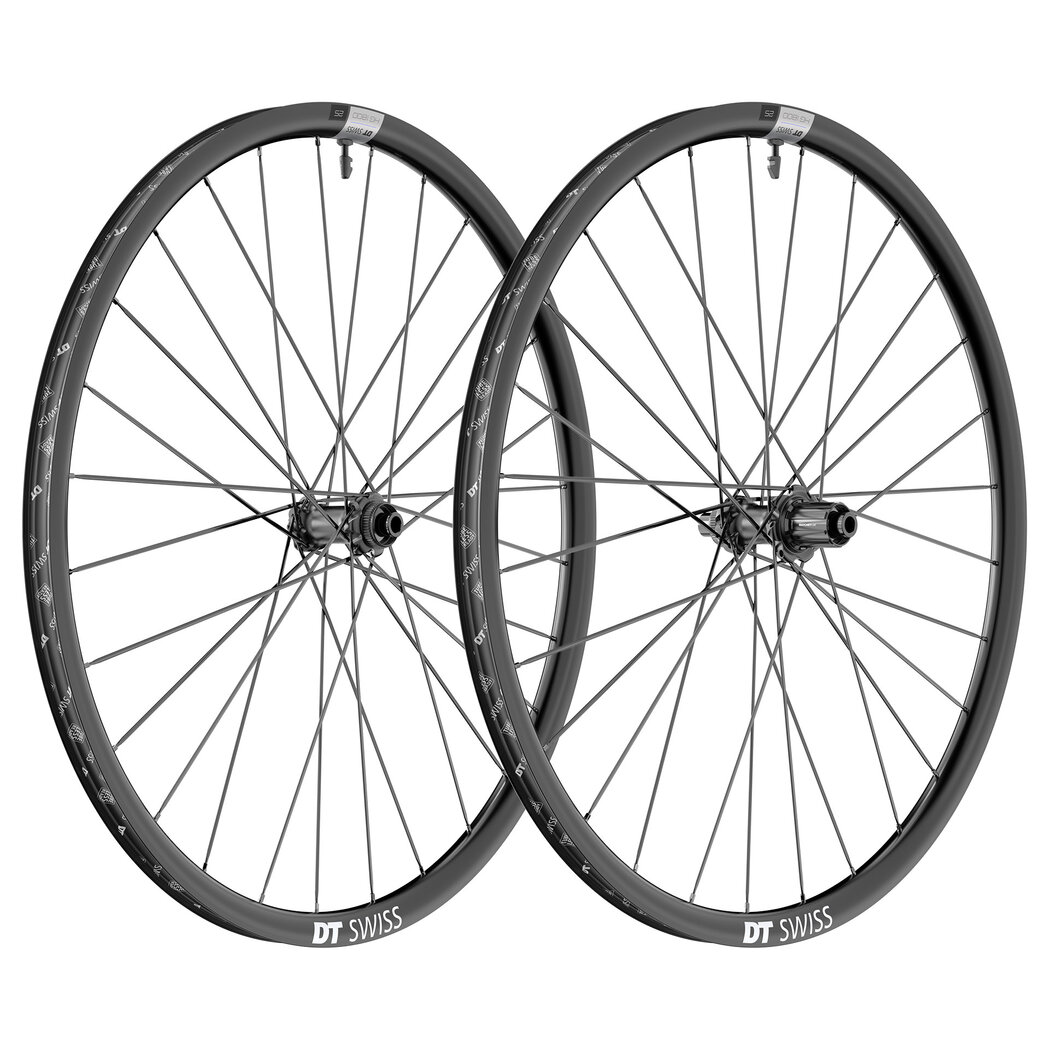

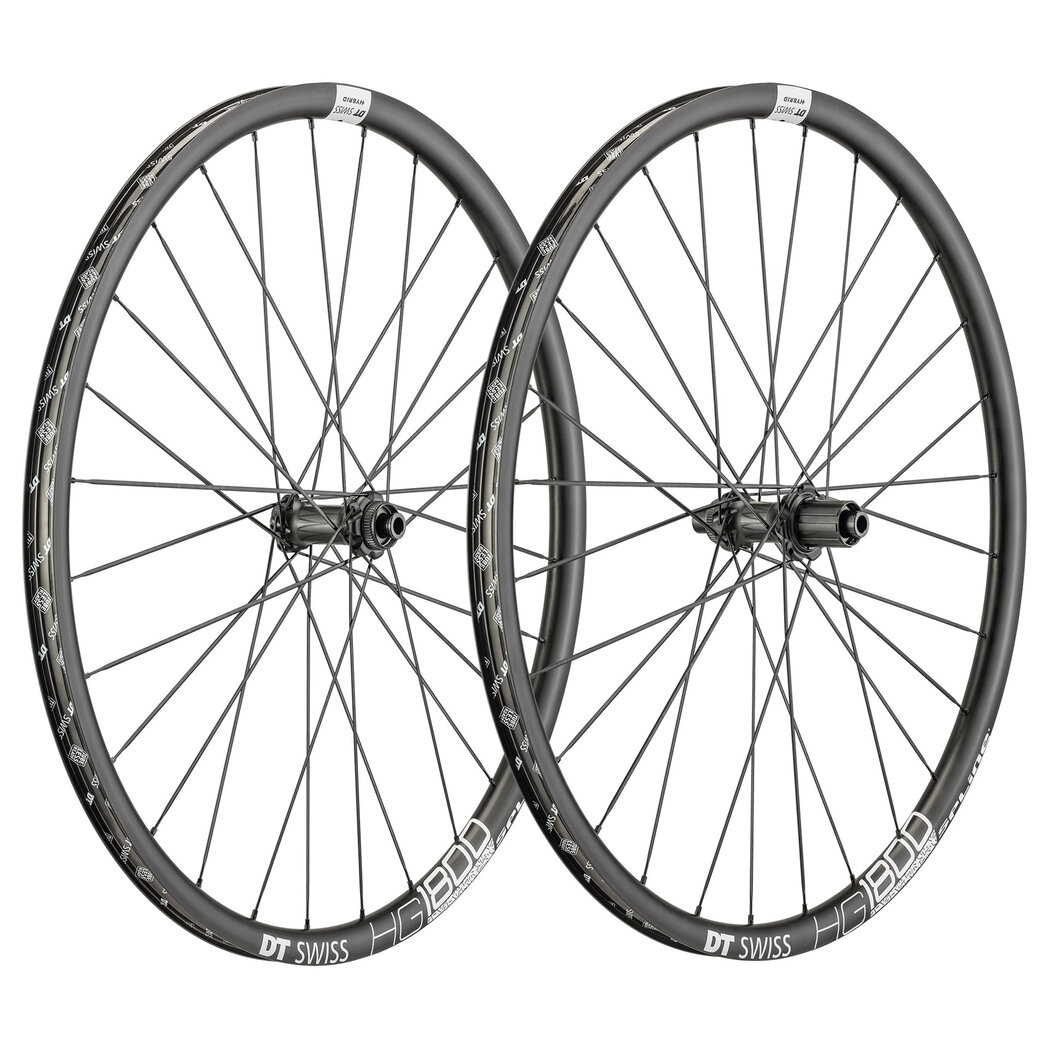

HG 1800 SPLINE®
Assists to start adventures where the road ends.
- MSRP per set US$ from $ 583
- Weight per set from 1953 g
- Brake interface Disc Brake
- from € 460
- from CHF 484
Product details
Often the adventure starts where the road ends. An e-gravel bike can assist you on getting there and beyond. With the HG 1800 SPLINE wheels you will be able to cycle there and back without concern. The robust rim combined with reinforced components is perfectly adapted for higher system weights (up to 140 kg), as well as for gravel riding. The inner rim width ideally supports tires up to 50 mm wide, which will make your gravel ride feel like a smooth promenade. The redesigned hub hides the Ratchet LN freehub system at its core, which provides reliable power transfer. This new wheelset is built to assist you on an extended gravel adventure.
- Hub type 370 with Ratchet LN 18
- Rim Aluminum, Hooked / Crotchet tubeless TC
- Rim height 25 mm
- Spokes DT new aero® hybrid straightp
Model finder
Just a few clicks to find your model. Please use the filter below.
Zoom image

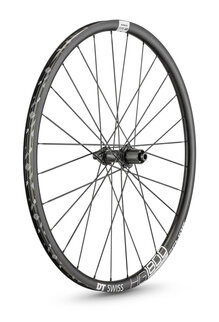

HG 1800 SPLINE db 25 12/142 mm Shimano
WHG1800NID9SA23386- Net weight 1092 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 25 mm
- Inner Width 24 mm
- Outer width 28 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano Micro Spline
- Freehub body Shim. RD.12SP Light (ASL12R)
- Freehub system Ratchet LN 18
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
TL valve alu black 18-25 mm
Zoom image
HG 1800 SPLINE db 25 12/142 mm Shimano
WHG1800NIDMSA24286- Net weight 1105 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 25 mm
- Inner Width 24 mm
- Outer width 28 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet LN 18
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
TL valve alu black 18-25 mm
Zoom image
HG 1800 SPLINE db 25 12/142 mm Sram XDR
WHG1800NID1SA24698- Net weight 1082 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 25 mm
- Inner Width 24 mm
- Outer width 28 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet LN 18
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
TL valve alu black 18-25 mm
Zoom image
HG 1800 SPLINE db 25 12/148 mm Shimano
WHG1800TIDMSA24287- Net weight 1110 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 25 mm
- Inner Width 24 mm
- Outer width 28 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet LN 18
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
TL valve alu black 18-25 mm
Zoom image
HG 1800 SPLINE 650b db 25 12/142 mm Shimano
WHG1800NJDMSA24584- Net weight 1055 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Rim Height 25 mm
- Inner Width 24 mm
- Outer width 28 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet LN 18
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
TL valve alu black 18-25 mm
Zoom image
HG 1800 SPLINE 650b db 25 12/142 mm Sram XDR
WHG1800NJD1SA24697- Net weight 1032 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Rim Height 25 mm
- Inner Width 24 mm
- Outer width 28 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet LN 18
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
TL valve alu black 18-25 mm
Zoom image
HG 1800 SPLINE 650b db 25 12/148 mm Shimano
WHG1800TJDMSA24285- Net weight 1060 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Rim Height 25 mm
- Inner Width 24 mm
- Outer width 28 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet LN 18
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
TL valve alu black 18-25 mm
Zoom image

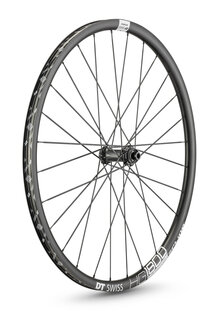

HG 1800 SPLINE db 25 12/100 mm
WHG1800AIDXSA21634- Net weight 971 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 25 mm
- Inner Width 24 mm
- Outer width 28 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
TL valve alu black 18-25 mm
Zoom image
HG 1800 SPLINE db 25 12/110 mm
WHG1800BIDXSA21635- Net weight 980 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 25 mm
- Inner Width 24 mm
- Outer width 28 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
TL valve alu black 18-25 mm
Zoom image
HG 1800 SPLINE 650b db 25 12/100 mm
WHG1800AJDXSA21630- Net weight 921 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Rim Height 25 mm
- Inner Width 24 mm
- Outer width 28 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
TL valve alu black 18-25 mm
Zoom image
HG 1800 SPLINE 650b db 25 12/110 mm
WHG1800BJDXSA21631- Net weight 929 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Recommended for e-bikes Yes (max. 32Km/h or max. 250W)
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Rim Height 25 mm
- Inner Width 24 mm
- Outer width 28 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT new aero® hybrid straightp
- Spokes right DT new aero® hybrid straightp
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
TL valve alu black 18-25 mm
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Find help and answers for frequently asked questions here.
According to your selection HG 1800 SPLINE® we found 11 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
Find help and answers for frequently asked questions here.
-
The current DT Swiss wheels are tubeless-ready and come with mounted tubeless rim tape and corresponding valves. For conversion, you will need a tubeless-capable tire (optimal: UST) and tire sealant. You can find both at an official dealer. Our How To video will take you through step-by-step assembly.
If you have previously ridden your bike with a tube or if the tape no longer sticks properly to the rim, we recommend that you replace the rim tape as a precaution.
How to attach the tubeless rim tape:
1. Measure the inside width of the rim.
2. The tubeless rim tape should be approx. 2 mm wider than the rim and can be bought from a specialist store.
3. Apply the tubeless rim tape. Depending on the rim/tire combination, it may be helpful to apply two or three layers of tubeless rim tape to optimally seal the rim bed.
