Zoom image

E 1800 SPLINE®

Don’t bother counting the miles, just enjoy the thrilling sensation of speed on extended rides.

  • MSRP per set US$ from $ 543
  • Weight per set from 1764 g
  • Brake interface Disc Brake
  • from € 429
  • from CHF 452
Product details

Product details

Get ready for long, exciting rides with this wheelset. Its wide rim provides enhanced comfort so you can tackle those miles with ease. Feel the thrill of speed as you glide effortlessly along the road, with every pedal stroke transferred to the road thanks to the reliable Ratchet system. This wheelset is designed to give you the perfect blend of reliability, comfort and fun to make your rides truly memorable.
E 1800 SPLINE 23: the lighter rim will let you enjoy the scenic views from the hills you might encounter on the way
E 1800 SPLINE 30: increase your speed thanks to an aero optimized rim design

  • Hub type 370 with Ratchet LN 18
  • Rim Aluminum, Hooked / Crotchet tubeless TC
  • Rim height 23 mm, 30 mm
  • Spokes DT aero comp® wide straightp, DT new aero® II straightpull
RIM WIDTH The 22mm internal rim width is ideal for mounting wide tires, providing comfort and stability when riding at lower pressures.
RIM HEIGHT The new aero optimized E 550 and its 30mm height will assist you in riding faster.
SPOKES The DT new aero® II straightpull features an improved aero shape thanks to the flat forging process.
HUB The upgrade of the 370 hub to the Ratchet LN system results in increased reliability while motivating you with its signature freewheeling sound.
FREEHUB BODY The Ratchet LN System achieves greater reliability by simultaneously engaging each tooth compared to the pawl system and its relatively smaller engagement surfaces.

AERO FOR ALL

Our first aero-optimized aluminum wheels

Technologies

technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

Aero+
technology

Learn more

ratchet TECHNOLOGies
 OVERVIEW

Learn more

Tubeless
Technology

Read

Bearing
technology

Learn more

Spoke
Technology

Read

experienced
handbuilding

Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Brake Interface

Disc Center Lock
02

Rim Height

03

Rim Diameter

04

Axle system

05

Built-in dimension

06

Cassette interface

There are 9 models of this product.
Show all
Hide all
Zoom image

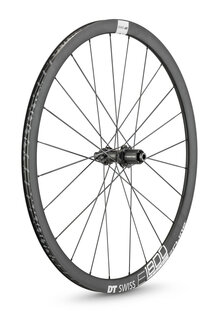

Rear Wheel

E 1800 SPLINE db 30 12/142 mm Shimano

W0E1800NIDMSA21184
General Rim Hub Spokes & Nipples
  • Spokes left DT aero comp® wide straightp
  • Spokes right DT aero comp® wide straightp
  • Spoke pattern Two-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu
Inclusive
  • Inclusive Tubeless tape 25 mm
    TL valve alu black 26-35 mm
Zoom image

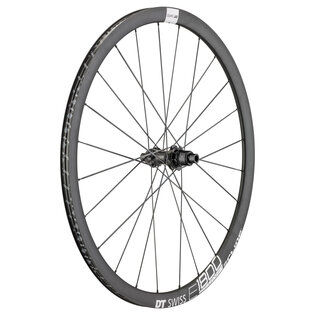

Rear Wheel

E 1800 SPLINE db 30 12/142 mm Sram XDR

W0E1800NID1SA21185

  • Spokes left DT aero comp® wide straightp
  • Spokes right DT aero comp® wide straightp
  • Spoke pattern Two-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 26-35 mm
Zoom image
Rear Wheel

E 1800 SPLINE 650b db 30 12/142 mm Shimano

W0E1800NJDMSA21851

  • Spokes left DT aero comp® wide straightp
  • Spokes right DT aero comp® wide straightp
  • Spoke pattern Two-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 26-35 mm
Zoom image
Rear Wheel

E 1800 SPLINE 650b db 30 12/142 mm Sram XDR

W0E1800NJD1SA21852

  • Spokes left DT aero comp® wide straightp
  • Spokes right DT aero comp® wide straightp
  • Spoke pattern Two-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 26-35 mm
Zoom image

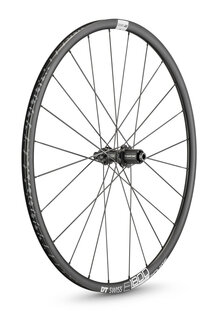

Rear Wheel

E 1800 SPLINE db 23 12/142 mm Shimano

W0E1800NIDMSA21217

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 18-25 mm
Zoom image

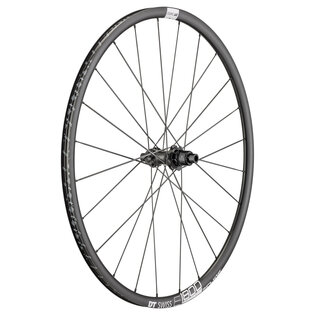

Rear Wheel

E 1800 SPLINE db 23 12/142 mm Sram XDR

W0E1800NID1SA21218

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 18-25 mm
Zoom image

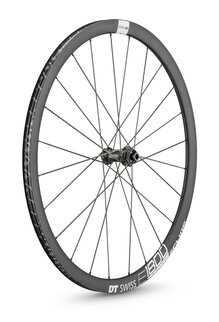

Front Wheel

E 1800 SPLINE 30 db 12/100 mm

W0E1800AIDXSA21183

  • Spokes left DT aero comp® wide straightp
  • Spokes right DT aero comp® wide straightp
  • Spoke pattern Two-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 26-35 mm
Zoom image
Front Wheel

E 1800 SPLINE 650b 30 db 12/100 mm

W0E1800AJDXSA21850

  • Spokes left DT aero comp® wide straightp
  • Spokes right DT aero comp® wide straightp
  • Spoke pattern Two-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 26-35 mm
Zoom image

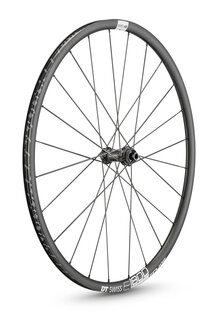

Front Wheel

E 1800 SPLINE 23 db 12/100 mm

W0E1800AIDXSA21215

  • Inclusive Tubeless tape 25 mm
    TL valve alu black 18-25 mm
Support

  • Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.

  • Find help and answers for frequently asked questions here.

According to your selection E 1800 SPLINE® we found 9 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.

Find help and answers for frequently asked questions here.

  • The current DT Swiss wheels are tubeless-ready and come with mounted tubeless rim tape and corresponding valves. For conversion, you will need a tubeless-capable tire (optimal: UST) and tire sealant. You can find both at an official dealer. Our How To video will take you through step-by-step assembly.



    If you have previously ridden your bike with a tube or if the tape no longer sticks properly to the rim, we recommend that you replace the rim tape as a precaution.

    How to attach the tubeless rim tape:

    1. Measure the inside width of the rim.

    2. The tubeless rim tape should be approx. 2 mm wider than the rim and can be bought from a specialist store.

    3. Apply the tubeless rim tape. Depending on the rim/tire combination, it may be helpful to apply two or three layers of tubeless rim tape to optimally seal the rim bed.

    Play global.youtube.alt
    30

  • Under Product Support, you will find exact details of all conversion options for your product (wheel, hub). First go to Product Support and select your product using the DT Swiss ID or filter. Under "Conversion" you will find the exact details for all conversion options. You will also find helpful How To videos and manuals.

    43

  • DT Swiss sells its products exclusively via official dealers, some of which also have online shops. Please contact your dealer. Or contact the distributor for your country – please use the contact form and select your country first, followed by "Product availability" as the subject.

    26

  • Unfortunately we don't offer discounts; we don't sell directly to private customers. Please contact a dealer. You can find recommended retail prices on our website.

    30

  • Compare the products on our website, where you can find our entire range and all technical specifications. Use the Wheel Finder to find the right wheel in just a few clicks.

    Alternatively, contact a dealer – they know all about DT Swiss products and technologies and can advise you.

    26
Show more
Experience

how-to: convert 3 pawl hub to ratchet ln
