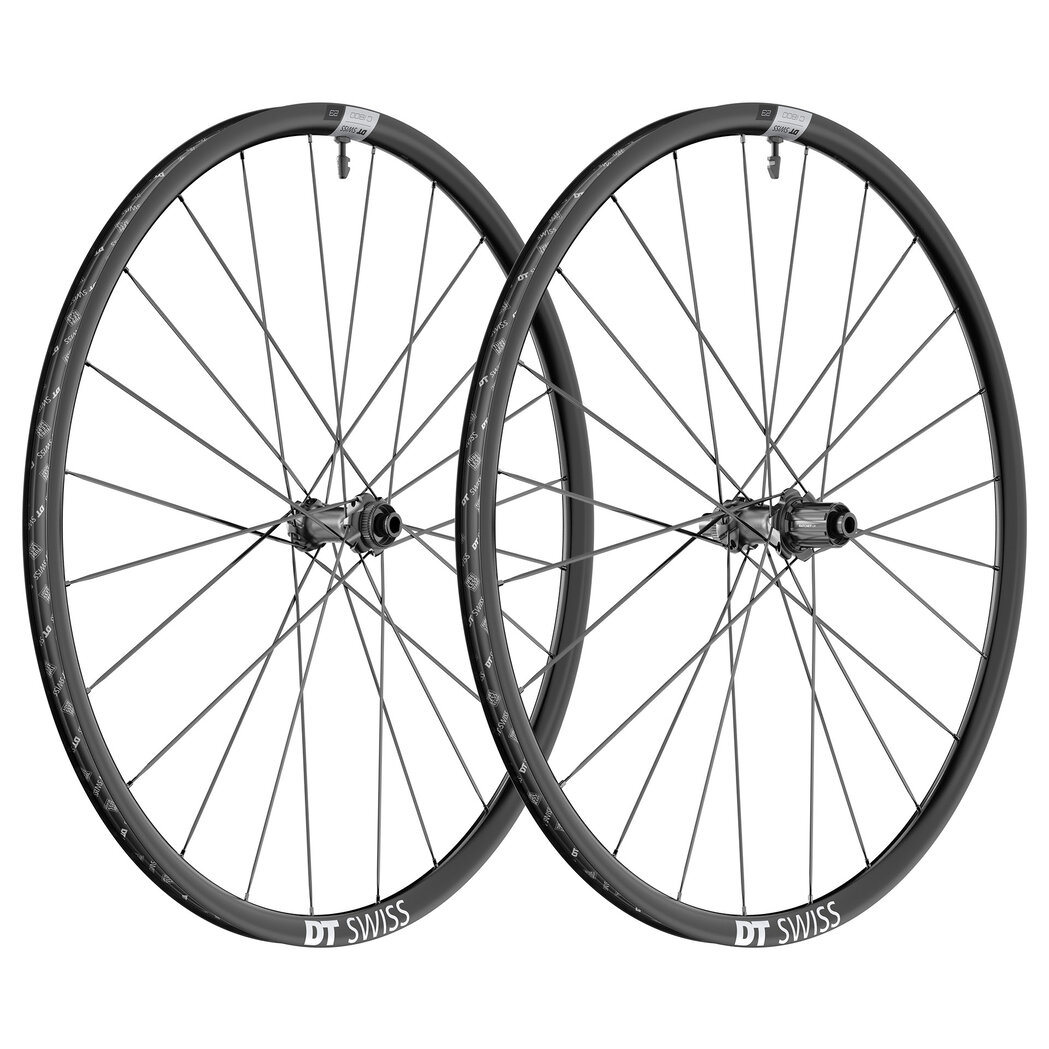

C 1800 SPLINE®
A versatile wheelset for jumping obstacles, cutting through mud and speeding up steep steps.
- MSRP per set US$ from $ 492
- Weight per set from 1741 g
- Brake interface Disc Brake
Product details
If serious off-roading is your thing, then the C 1800 SPLINE is perfect for you. The combination of a sturdy 22 mm wide rim and robust high-end spokes provides you with a wheel for the heavy-duty tours. Reliable hub quality and precise wheel construction ensure endless miles of fun in the saddle. Jumping over obstacles, plowing through mud and skidding down steps: these wheels can do it all.
- Hub type 370 with 3 Pawl
- Rim Aluminum, Hooked / Crotchet tubeless TC
- Rim height 23 mm
- Spokes DT aero comp® wide straightp, DT new aero® straightpull
Model finder
Just a few clicks to find your model. Please use the filter below.
Zoom image

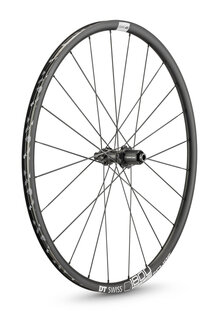

C 1800 SPLINE db 23 12/142 mm Shimano
W0C1800NIDUSA10604- Net weight 946 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Hub vinyl / Rim waterslide
- Inner Width 22 mm
- Outer width 26 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Alu/Steel ASS11
- Freehub system 3 Pawl
- Spokes left DT aero comp® wide straightp
- Spokes right DT new aero® Straightpull
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 25 mm
Tubeless valve road 32 mm
Zoom image

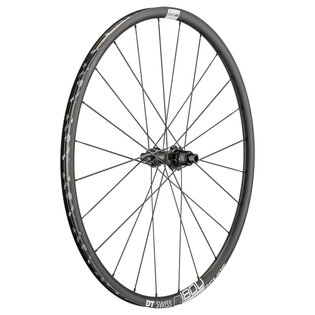

C 1800 SPLINE db 23 12/142 mm Sram XDR
W0C1800NID4SA11305- Net weight 930 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Hub vinyl / Rim waterslide
- Inner Width 22 mm
- Outer width 26 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. Alu/Steel (ASXDR)
- Freehub system 3 Pawl
- Spokes left DT aero comp® wide straightp
- Spokes right DT new aero® Straightpull
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 25 mm
Tubeless valve road 32 mm
Zoom image

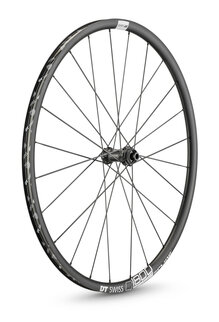

C 1800 SPLINE db 23 12/100 mm
W0C1800AIDXSA10603- Net weight 811 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Decal type Hub vinyl / Rim waterslide
- Inner Width 22 mm
- Outer width 26 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT new aero® Straightpull
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 25 mm
Tubeless valve road 32 mm
