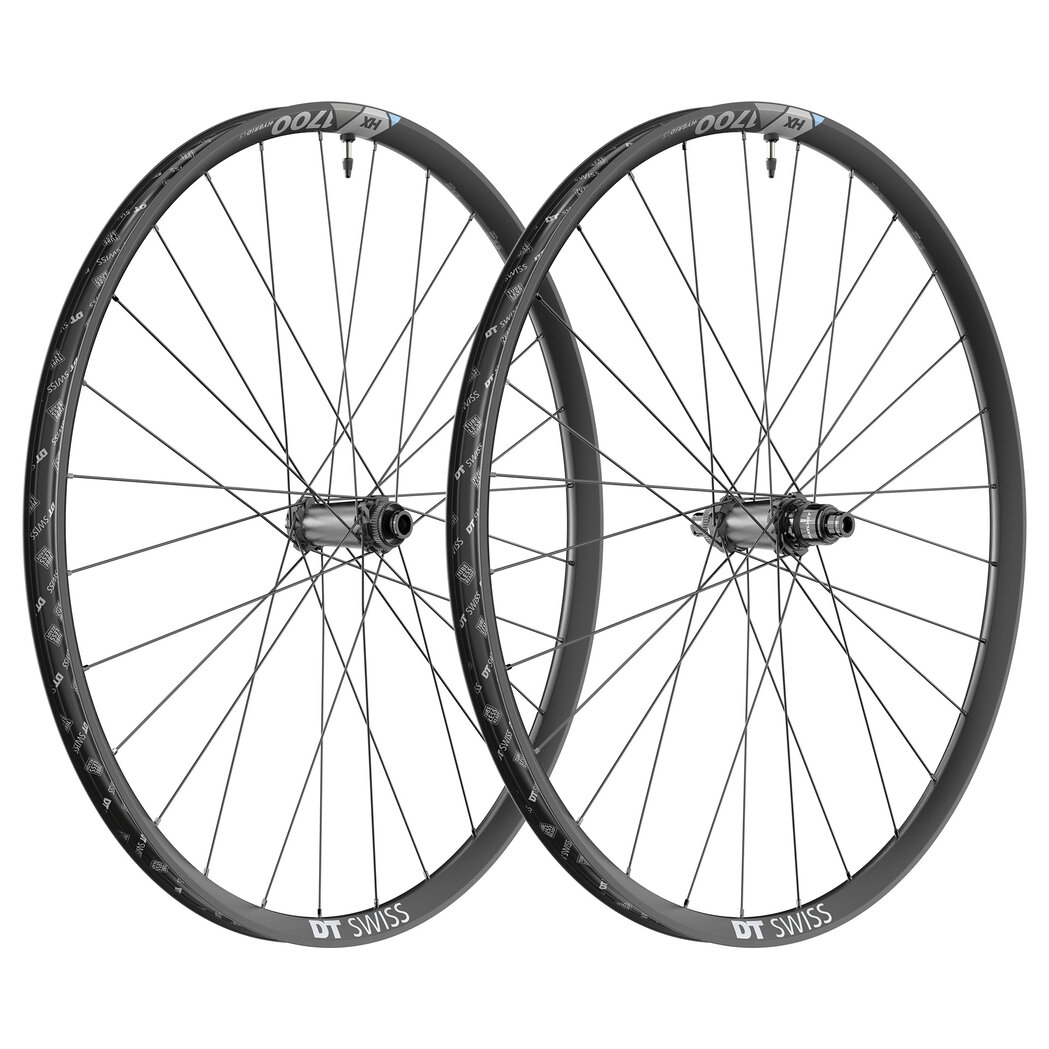

HX 1700 SPLINE® LS
Advancing the agility of light eMTBs.
- MSRP per set US$ from $ 1084
- Weight per set from 1894 g
Product details
Increase the agility of lightweight eMTBs using this specific aluminum wheelset. Aligned to the purpose of lightweight eMTBs, the HX 1700 SPLINE LS aim for the right balance between lightness and resistance for more dynamic handling. The 350 hubs have been redesigned for eMTB to offer more resistance to the acceleration and braking forces. In addition, the spokes have been modified to increase their strength without drastically increasing the weight. These wheels are ready to be ridden on the fastest lines in technical sections and to carve into fast and tight turns.
- Hub type 350 with Ratchet System 24
- Rim Aluminum, Hooked / Crotchet tubeless TC
- Inner width 30 mm
- Spokes DT hybrid 3 straightpull





Model finder
Just a few clicks to find your model. Please use the filter below.

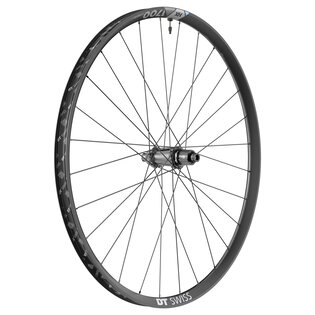

HX 1700 SPLINE LS 29 - 30 mm CL 12/148 mm Shimano
WHX17LSTED2SA19511- Net weight 1086 g
- recommended System weight max. 130 kg
- ASTM classification 4
- Material Aluminum
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 35 mm
-
Cross-section
- Hub type 350
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface Shimano Micro Spline
- Freehub body Shim. 12SP Light (ASL12)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 3 Straightpull
- Spokes right DT hybrid 3 Straightpull
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB 32 mm
IS 6-bolt adapter MTB

HX 1700 SPLINE LS 29 - 30 mm CL 12/148 mm Sram
WHX17LSTEDRSA19512- Net weight 1078 g
- recommended System weight max. 130 kg
- ASTM classification 4
- Material Aluminum
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 35 mm
-
Cross-section
- Hub type 350
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface Sram XD
- Freehub body SRAM XD MTB (ASRAM)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 3 Straightpull
- Spokes right DT hybrid 3 Straightpull
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB 32 mm
IS 6-bolt adapter MTB

HX 1700 SPLINE LS 27.5 - 30 mm CL 12/148 mm Shimano
WHX17LSTGD2SA19508- Net weight 1038 g
- recommended System weight max. 130 kg
- ASTM classification 4
- Material Aluminum
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 35 mm
-
Cross-section
- Hub type 350
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface Shimano Micro Spline
- Freehub body Shim. 12SP Light (ASL12)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 3 Straightpull
- Spokes right DT hybrid 3 Straightpull
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB 32 mm
IS 6-bolt adapter MTB

HX 1700 SPLINE LS 27.5 - 30 mm CL 12/148 mm Sram
WHX17LSTGDRSA19509- Net weight 1030 g
- recommended System weight max. 130 kg
- ASTM classification 4
- Material Aluminum
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 35 mm
-
Cross-section
- Hub type 350
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface Sram XD
- Freehub body SRAM XD MTB (ASRAM)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 3 Straightpull
- Spokes right DT hybrid 3 Straightpull
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB 32 mm
IS 6-bolt adapter MTB

HX 1700 SPLINE LS 29 - 30 mm CL 15/110 mm
WHX17LSBEIXSA19510- Net weight 944 g
- recommended System weight max. 130 kg
- ASTM classification 4
- Material Aluminum
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 35 mm
-
Cross-section
- Hub type 350
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT hybrid 3 Straightpull
- Spokes right DT hybrid 3 Straightpull
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB 32 mm
IS 6-bolt adapter MTB

HX 1700 SPLINE LS 27.5 - 30 mm CL 15/110 mm
WHX17LSBGIXSA19507- Net weight 879 g
- recommended System weight max. 130 kg
- ASTM classification 4
- Material Aluminum
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Decal type Waterslide
- Inner Width 30 mm
- Outer width 35 mm
-
Cross-section
- Hub type 350
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT hybrid 3 Straightpull
- Spokes right DT hybrid 3 Straightpull
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB 32 mm
IS 6-bolt adapter MTB

Product support
Manuals, how-to videos, spareparts & conversion.
According to your selection HX 1700 SPLINE® LS we found 6 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
nicolas omlin
mtb rider
«The HX 1700 SPLINE LS wheels are perfectly matched to the Light Hybrid requirements. They act, by the lower weight compared to full hybrid wheels, more agile and safer compared to ordinary wheels. This balance is reflected in the performance in jumps and off-road and conveys handling like a classic enduro bike.
Technical trails turn out to be very grippy when up / downhill. This allows for precise line selection and great directional stability.»
Photo Credit: Gaudenz Danuser
