DT ALPINE III®

You want an ultrastrong but lightweight spoke? Go with the Alpine III.

  • Length [mm] (L) 168 - 305
Product details

Product details

DT Alpine III is the spoke with the lowest weight in relation to its stability. This is accomplished through a complex production process. Starting with a spoke of 2.34 mm, the diameter is reduced at the thread to 2 mm and to 1.8 mm in the middle section during the cold forging process. This allows weight savings of 173 g compared to spokes with a constant diameter. Despite the light centre piece, DT Alpine III is very durable and is perfectly suited for the big loads occurring in high performance e-bike or tandem wheels. Weight: 418 g for 64 spokes at a length of 264 mm.

  • Product type J-bend
  • Blading None
  • Reduction Triple butted
Technologies

Technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

Spoke
Technology

Read
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Product type

J-Bend
02

Diameter 1 [mm] (D1)

2.0
There are 2 models of this product.
Show all
Hide all
Zoom image

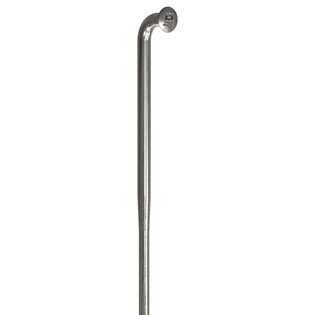

DT alpine III silver 2.34 / 1.8 / 2.0 x 258 mm

General
  • Product type J-Bend
  • Blading None
  • Reduction Triple butted
  • E-Bike use YES
  • Color Silver
Dimensions
  • Length [mm] (L) 168 - 305
  • Diameter 1 [mm] (D1) 2.0
  • Diameter 2 [mm] (D2) 1.85
  • Diameter 3 [mm] (D3) 2.34
  • Width 1 [mm] (B1) -
  • Width 2 [mm] (B2) -
  • Thread 2.0 / FG 2.3
  • Height of head [mm] (H) 7.8
  • Angle (A) 90 - 95°
  • Gauges 14 / 15 / 13
Zoom image

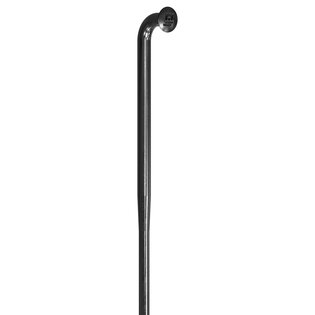

DT alpine III black 2.34 / 1.8 / 2.0 x 300 mm


  • Product type J-Bend
  • Blading None
  • Reduction Triple butted
  • E-Bike use YES
  • Color Black

  • Length [mm] (L) 168 - 305
  • Diameter 1 [mm] (D1) 2.0
  • Diameter 2 [mm] (D2) 1.85
  • Diameter 3 [mm] (D3) 2.34
  • Width 1 [mm] (B1) -
  • Width 2 [mm] (B2) -
  • Thread 2.0 / FG 2.3
  • Height of head [mm] (H) 7.8
  • Angle (A) 90 - 95°
  • Gauges 14 / 15 / 13
