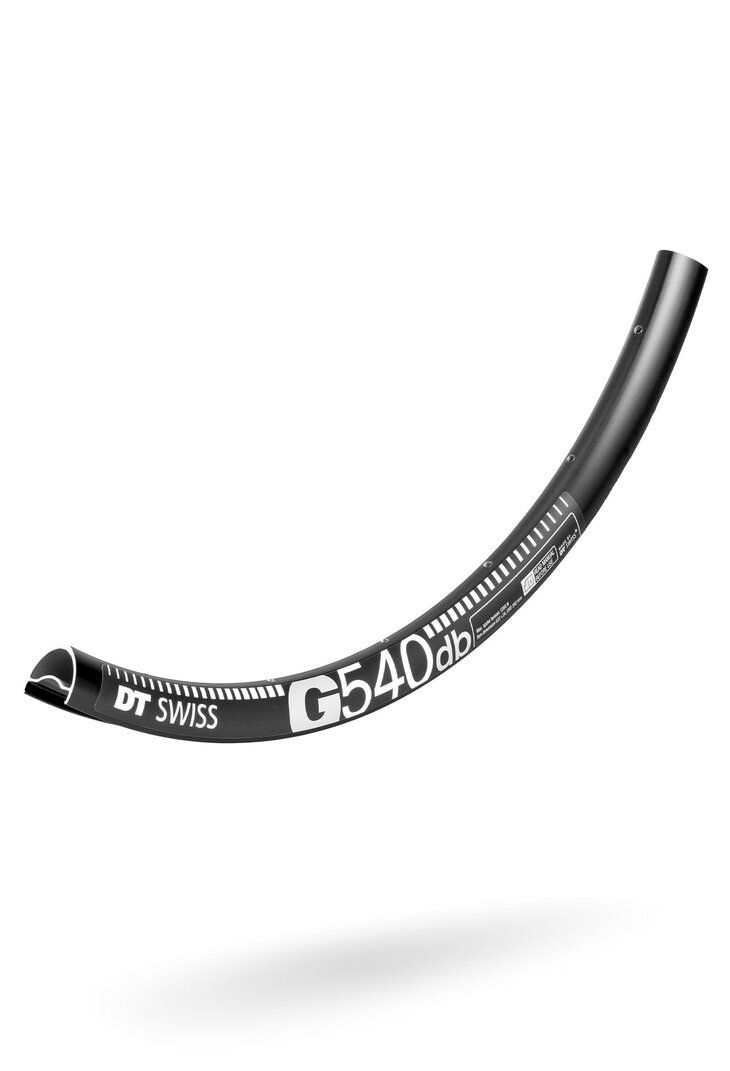

G 540
This wide rim takes hard hits even over bumpy sections. Enjoy the long rides!
- MSRP US$ from $ 67
- Net weight from 530 g
- from € 42
- from CHF 42
Product details
The sleeved aluminium Gravel rim is the ideal choice for riding over gravel, roots or small obstacles on unpaved paths. The robust all-round rim with its inner width of 24 mm and its wide knobby tires up to 53 mm is suitable for various purposes and provides great comfort.
- Material ALUMINIUM
Model finder
Just a few clicks to find your model. Please use the filter below.
DT Swiss G 540 disc
RDG054BDPN24SA0778- Net weight 530 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 554 mm
- Inner Width 24 mm
- Outer width 28 mm
- Rim Height 25 mm
-
Cross-section
- Number of holes 24
- Spoke bore rim Non eyelet
- Valve hole Presta
- Inclusive -
DT Swiss G 540 disc
RDG054BDPN28SA0779- Net weight 530 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 554 mm
- Inner Width 24 mm
- Outer width 28 mm
- Rim Height 25 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Non eyelet
- Valve hole Presta
- Inclusive -
DT Swiss G 540 disc
RDG054BDPN32SA0780- Net weight 530 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 554 mm
- Inner Width 24 mm
- Outer width 28 mm
- Rim Height 25 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Non eyelet
- Valve hole Presta
- Inclusive -
DT Swiss G 540 disc
RDG054CDPN24SA0781- Net weight 565 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 592 mm
- Inner Width 24 mm
- Outer width 28 mm
- Rim Height 25 mm
-
Cross-section
- Number of holes 24
- Spoke bore rim Non eyelet
- Valve hole Presta
- Inclusive -
DT Swiss G 540 disc
RDG054CDPN28SA0782- Net weight 565 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 592 mm
- Inner Width 24 mm
- Outer width 28 mm
- Rim Height 25 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Non eyelet
- Valve hole Presta
- Inclusive -
DT Swiss G 540 disc
RDG054CDPN32SA0783- Net weight 565 g
- recommended System weight max. 130 kg
- ASTM classification 2
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 592 mm
- Inner Width 24 mm
- Outer width 28 mm
- Rim Height 25 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Non eyelet
- Valve hole Presta
- Inclusive -
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Find help and answers for frequently asked questions here.
According to your selection G 540 we found 6 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
Find help and answers for frequently asked questions here.
-
DT Swiss sells its products exclusively via official dealers, some of which also have online shops. Please contact your dealer. Or contact the distributor for your country – please use the contact form and select your country first, followed by "Product availability" as the subject.
-
Compare the products on our website, where you can find our entire range and all technical specifications. Use the Wheel Finder to find the right wheel in just a few clicks.
Alternatively, contact a dealer – they know all about DT Swiss products and technologies and can advise you.
-
In cycling, rim height significantly impacts the aerodynamics, maneuverability and weight of the wheel. Basically, the higher the rim, the greater the aerodynamic advantage. The lower the rim, the more agile and maneuverable the handling.
-
Caution when choosing brake pads for wheels with rim brakes!
- Only "SwissStop Black Prince" brake pads may be used on carbon rims.
- Only "SwissStop BXP Blue" brake pads may be used on OXIC rims.
The use of incorrect brake pads can cause the rim to fail. DT Swiss takes no responsibility in this case. Please also note that brake pads which were previously used on aluminum rims must not be used on carbon rims. The aluminum abrasion in the brake pad can destroy the carbon. For further information about your wheel, please refer to the user manual.
If you notice these damage patterns on your wheel, contact a service center.
-
Tires with different widths and profiles are used depending on the surface. There are different recommendations for inner rim width depending on the choice of tire width for the respective road cycling purpose.
