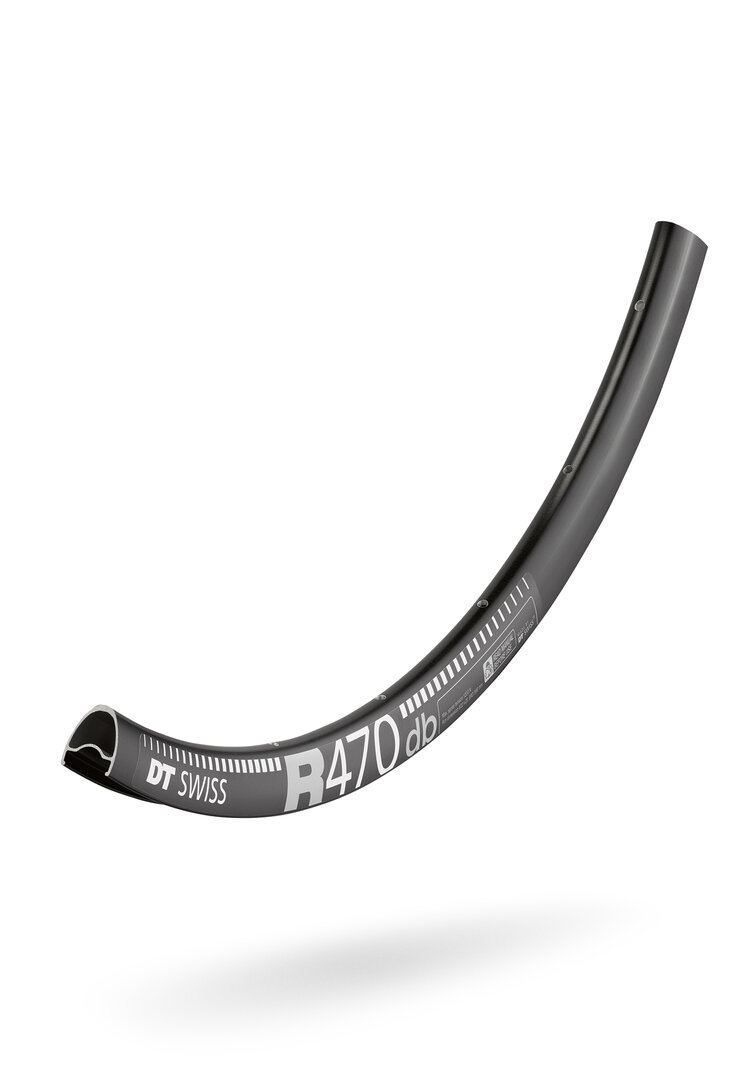

R 470
The reliable rim with an ideal price to performance ratio!
- MSRP US$ from $ 59
- Net weight from 450 g
- from € 43
- from CHF 45
Product details
The jack-of-all trades of road rims: light, wide and with an ideal price/performance ratio. The R 470 works perfectly with wide tires and will deliver many unforgettable rides on the road thanks to its reliability.
- Material ALUMINIUM
Model finder
Just a few clicks to find your model. Please use the filter below.
Zoom image
R 470 700C 23 mm DB VI
RDR047DPN24S011543- Net weight 450 g
- recommended System weight max. -
- ASTM classification -
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 596 mm
- Inner Width 20 mm
- Outer width 24 mm
- Rim Height 23 mm
-
Cross-section
- Number of holes 24
- Spoke bore rim Non eyelet
- Valve hole Presta
- Inclusive -
Zoom image
R 470 700C 23 mm DB VI
RDR047DPN28S011544- Net weight 450 g
- recommended System weight max. -
- ASTM classification -
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 596 mm
- Inner Width 20 mm
- Outer width 24 mm
- Rim Height 23 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Non eyelet
- Valve hole Presta
- Inclusive -
Zoom image
R 470 700C 23 mm DB VI
RDR047DPN32S011545- Net weight 450 g
- recommended System weight max. -
- ASTM classification -
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 596 mm
- Inner Width 20 mm
- Outer width 24 mm
- Rim Height 23 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Non eyelet
- Valve hole Presta
- Inclusive -
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Find help and answers for frequently asked questions here.
According to your selection R 470 we found 3 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
Find help and answers for frequently asked questions here.
-
DT Swiss sells its products exclusively via official dealers, some of which also have online shops. Please contact your dealer. Or contact the distributor for your country – please use the contact form and select your country first, followed by "Product availability" as the subject.
-
Compare the products on our website, where you can find our entire range and all technical specifications. Use the Wheel Finder to find the right wheel in just a few clicks.
Alternatively, contact a dealer – they know all about DT Swiss products and technologies and can advise you.
-
In cycling, rim height significantly impacts the aerodynamics, maneuverability and weight of the wheel. Basically, the higher the rim, the greater the aerodynamic advantage. The lower the rim, the more agile and maneuverable the handling.
-
Caution when choosing brake pads for wheels with rim brakes!
- Only "SwissStop Black Prince" brake pads may be used on carbon rims.
- Only "SwissStop BXP Blue" brake pads may be used on OXIC rims.
The use of incorrect brake pads can cause the rim to fail. DT Swiss takes no responsibility in this case. Please also note that brake pads which were previously used on aluminum rims must not be used on carbon rims. The aluminum abrasion in the brake pad can destroy the carbon. For further information about your wheel, please refer to the user manual.
If you notice these damage patterns on your wheel, contact a service center.
-
Tires with different widths and profiles are used depending on the surface. There are different recommendations for inner rim width depending on the choice of tire width for the respective road cycling purpose.
