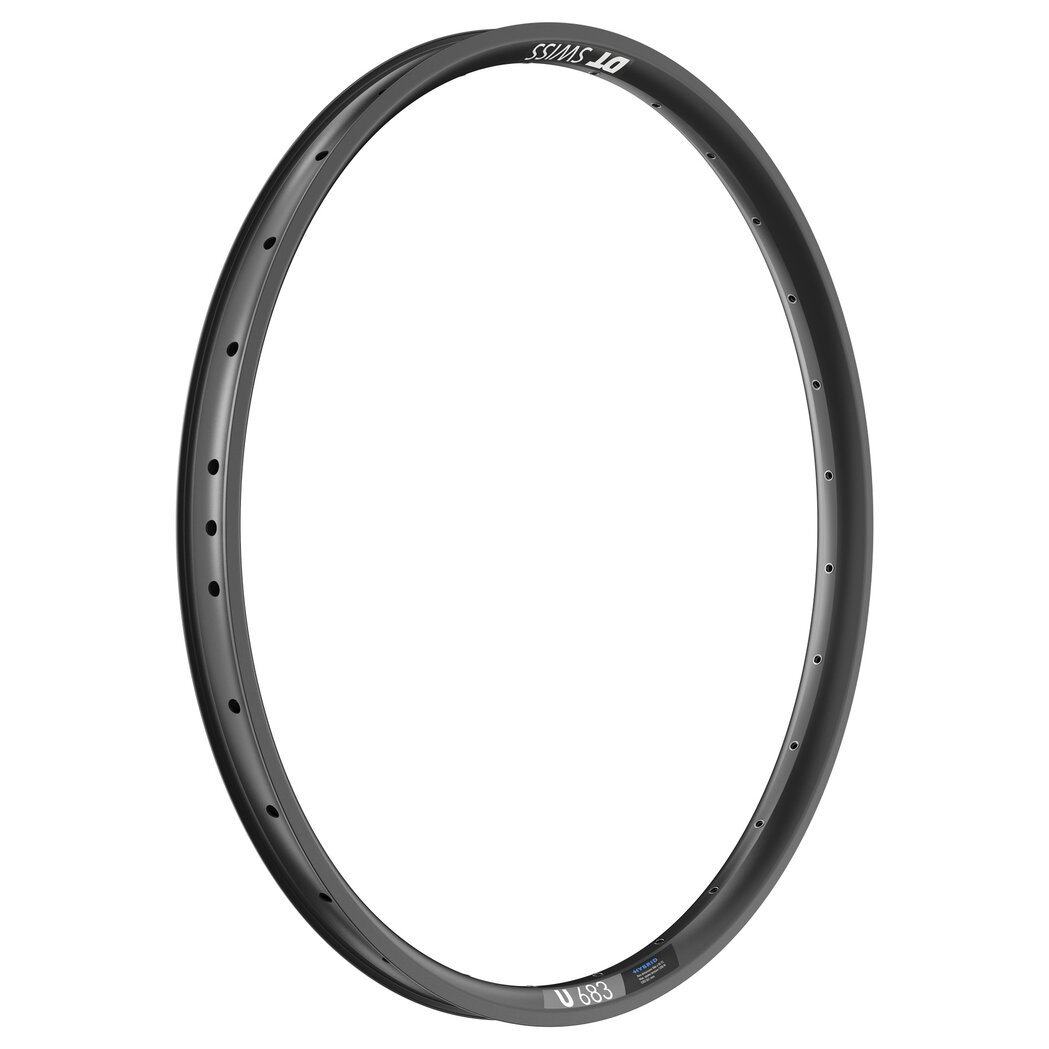

U 683
Resistant 27.5" rim, built to last under the heavier e-touring bike loads.
- MSRP US$ from $ 59
- Net weight from 730 g
- from € 44
- from CHF 47
Product details
The U 683 rim features a larger rim cross section to increase its resistance to the higher weight of e-touring bike. Approved for a maximum system weight of 180 kg, this 27.5" rim will allow users to commute in the city or discover new paths, promising superior wheel resistance, even under heavy loads. Available with 28 or 32 spoke holes and a 35 mm inner rim width.
- Material ALUMINIUM
Model finder
Just a few clicks to find your model. Please use the filter below.
U 683 27.5 35 mm DB VI
RDU683BDAB28SA9804- Net weight 730 g
- recommended System weight max. 180 kg
- ASTM classification 2
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Material ALUMINIUM
- Rim joint Pin joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 561 mm
- Inner Width 35 mm
- Outer width 40 mm
- Rim Height 22 mm
-

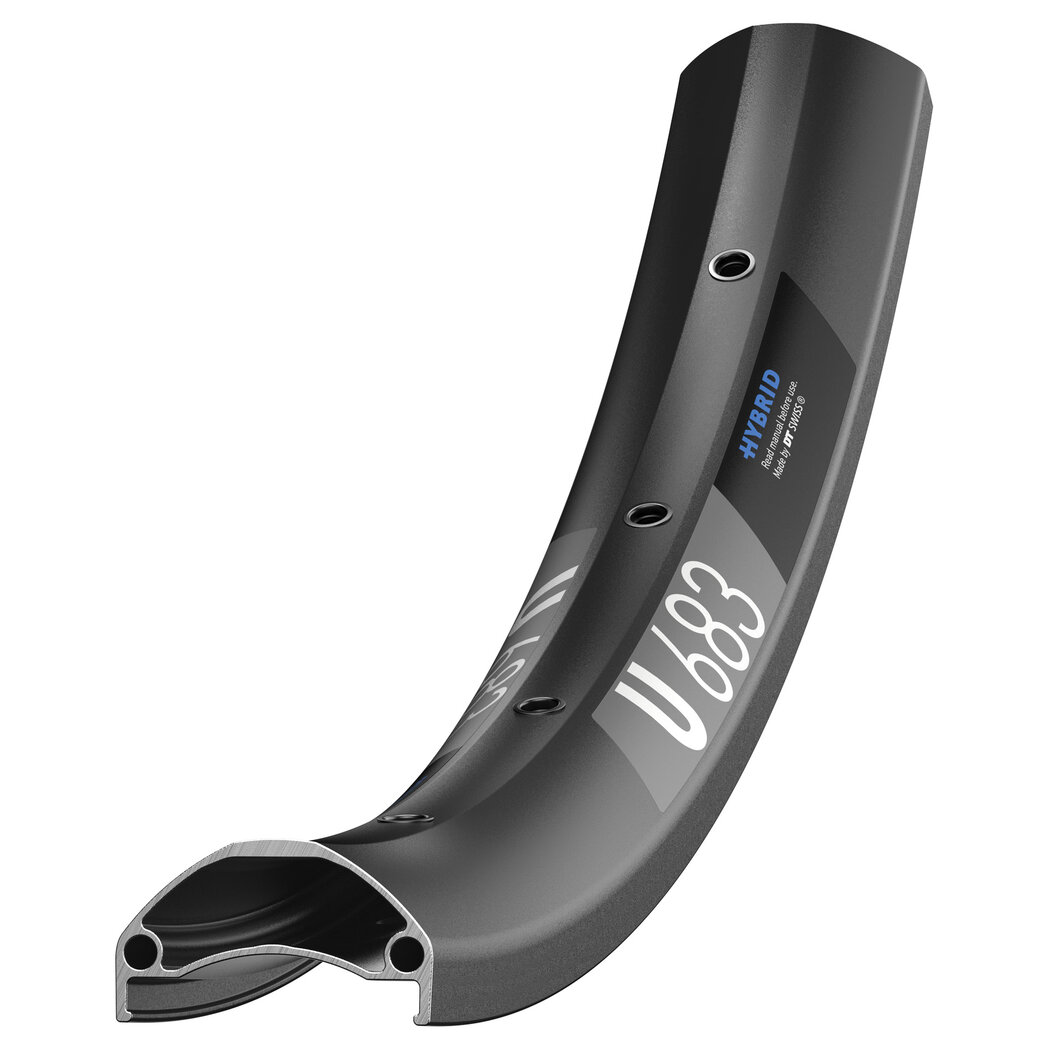

Cross-section
- Number of holes 28
- Spoke bore rim Black eyelet
- Valve hole Schrader (plus Presta-adapter)
- Inclusive -
U 683 27.5 35 mm DB VI
RDU683BDAB32SA9805- Net weight 730 g
- recommended System weight max. 180 kg
- ASTM classification 2
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Material ALUMINIUM
- Rim joint Pin joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 561 mm
- Inner Width 35 mm
- Outer width 40 mm
- Rim Height 22 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Black eyelet
- Valve hole Schrader (plus Presta-adapter)
- Inclusive -
-
