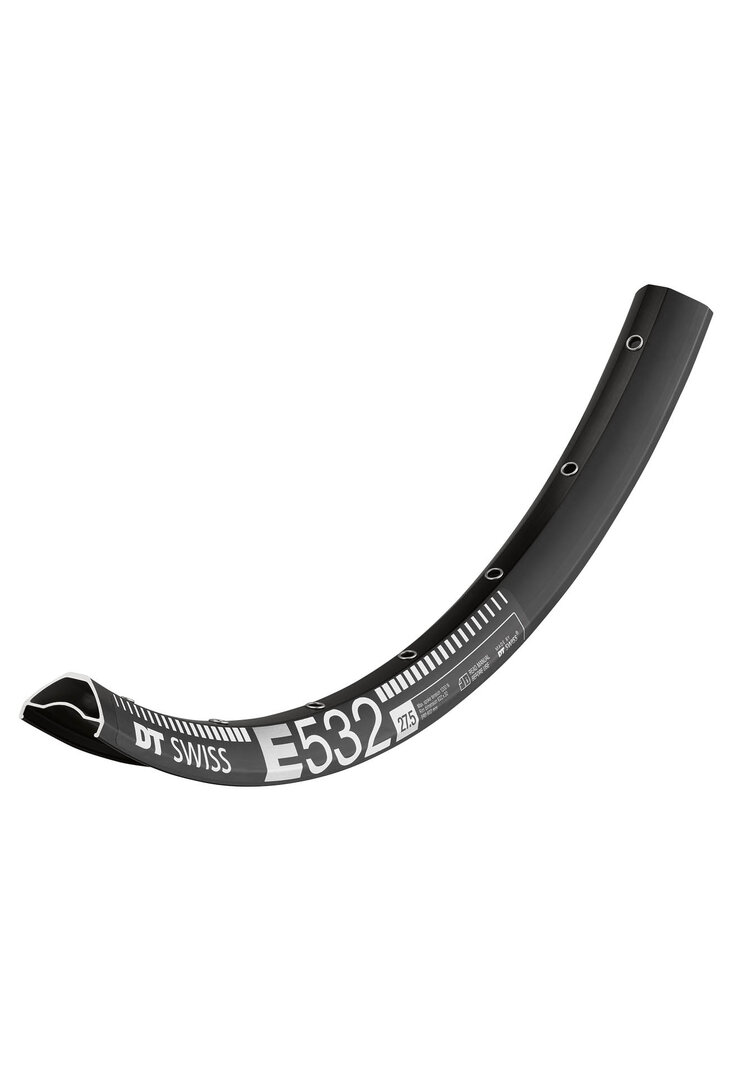

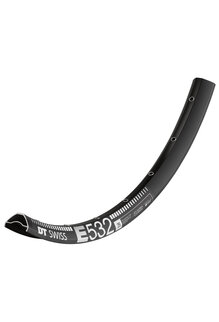

E 532
Sleeved 30 mm Enduro rim, ready to eat rocks.
- MSRP US$ from $ 94
- Net weight from 580 g
Product details
Bringing wide profiles to the most demanding enduro riders, both price- and performancewise. A sibling of our EWS winning welded rims, the E 532 packs the materials and technology the worlds fastest racers use and puts it into an affordable rim for everyday chargers.
- Material ALUMINIUM
Model finder
Just a few clicks to find your model. Please use the filter below.
There are 8 models of this product.
Show all
Hide all
Zoom image
E 532 27.5 30 mm DB VI
RDE053BDPS28SA6278- Net weight 580 g
- recommended system weight max. 130 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 564 mm
- Inner Width 30 mm
- Outer width 35 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
E 532 27.5 30 mm DB VI
RDE053BDPS32SA6279- Net weight 580 g
- recommended system weight max. 130 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 564 mm
- Inner Width 30 mm
- Outer width 35 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
E 532 27.5 30 mm DB VI
RDE053BDPS28SB6278- Net weight 580 g
- recommended system weight max. 130 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 564 mm
- Inner Width 30 mm
- Outer width 35 mm
- Rim Height 20 mm
- Cross-section
- Number of holes 28
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
E 532 27.5 30 mm DB VI
RDE053BDPS32SB6279- Net weight 580 g
- recommended system weight max. 130 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 564 mm
- Inner Width 30 mm
- Outer width 35 mm
- Rim Height 20 mm
- Cross-section
- Number of holes 32
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
E 532 29 30 mm DB VI
RDE053CDPS28SA6280- Net weight 615 g
- recommended system weight max. 130 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 602 mm
- Inner Width 30 mm
- Outer width 35 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
E 532 29 30 mm DB VI
RDE053CDPS32SA6281- Net weight 615 g
- recommended system weight max. 130 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 602 mm
- Inner Width 30 mm
- Outer width 35 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
E 532 29 30 mm DB VI
RDE053CDPS28SB6280- Net weight 615 g
- recommended system weight max. 130 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 602 mm
- Inner Width 30 mm
- Outer width 35 mm
- Rim Height 20 mm
- Cross-section
- Number of holes 28
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
E 532 29 30 mm DB VI
RDE053CDPS32SB6281- Net weight 615 g
- recommended system weight max. 130 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 602 mm
- Inner Width 30 mm
- Outer width 35 mm
- Rim Height 20 mm
- Cross-section
- Number of holes 32
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
