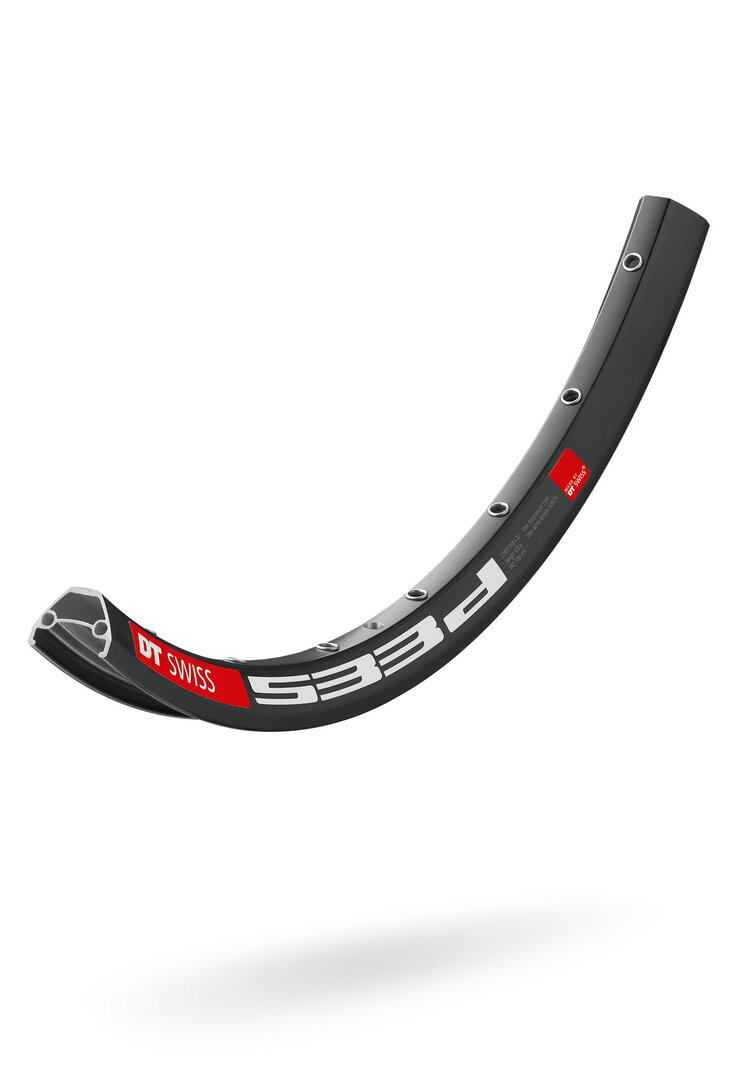

533d

Pinned 22 mm Enduro rim.

  • MSRP US$ from $ 35
  • Net weight from 520 g
Product details

Product details

Let your muscles play on the up-hills and switch to attack mode for the down-hills. This is exactly what the DT Swiss Enduro rims are made for. Each rim is a piece of high precision engineering and thanks to the extremely resistant aluminum alloy, the 533d can cope with the most demanding trails.

  • Material ALUMINIUM
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Rim diameter

02

Number of holes

There are 6 models of this product.
Show all
Hide all

533d 26 22 mm DB VI

RPE533DPS28S026039
General
  • Net weight 520 g
  • max. system weight 130 kg
  • ASTM classification 4
Material & Brake Interface
  • Material ALUMINIUM
  • Brake interface Disc
Dimensions
  • Rim diameter 26"
  • Reference diameter ERD 539 mm
  • Inner width 22 mm
  • Outer width 28 mm
  • Rim height 20.5 mm
  • Cross-section
Holes
  • Number of holes 28
  • Bore type Eyelet
Inclusive
  • Inclusive -

533d 26 22 mm DB VI

RPE533DPS32S026040

  • Net weight 520 g
  • max. system weight 130 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 26"
  • Reference diameter ERD 539 mm
  • Inner width 22 mm
  • Outer width 28 mm
  • Rim height 20.5 mm
  • Cross-section

  • Number of holes 32
  • Bore type Eyelet

  • Inclusive -

533d 27.5 22 mm DB VI

RPE53365028S026041

  • Net weight 540 g
  • max. system weight 130 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 564 mm
  • Inner width 22 mm
  • Outer width 28 mm
  • Rim height 20.5 mm
  • Cross-section

  • Number of holes 28
  • Bore type Eyelet

  • Inclusive -

533d 27.5 22 mm DB VI

RPE53365032S026042

  • Net weight 540 g
  • max. system weight 130 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 564 mm
  • Inner width 22 mm
  • Outer width 28 mm
  • Rim height 20.5 mm
  • Cross-section

  • Number of holes 32
  • Bore type Eyelet

  • Inclusive -

533d 29 22 mm DB VI

RPE53329P28S026043

  • Net weight 575 g
  • max. system weight 130 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 602 mm
  • Inner width 22 mm
  • Outer width 28 mm
  • Rim height 20.5 mm
  • Cross-section

  • Number of holes 28
  • Bore type Eyelet

  • Inclusive -

533d 29 22 mm DB VI

RPE53329P32S026044

  • Net weight 575 g
  • max. system weight 130 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 602 mm
  • Inner width 22 mm
  • Outer width 28 mm
  • Rim height 20.5 mm
  • Cross-section

  • Number of holes 32
  • Bore type Eyelet

  • Inclusive -
