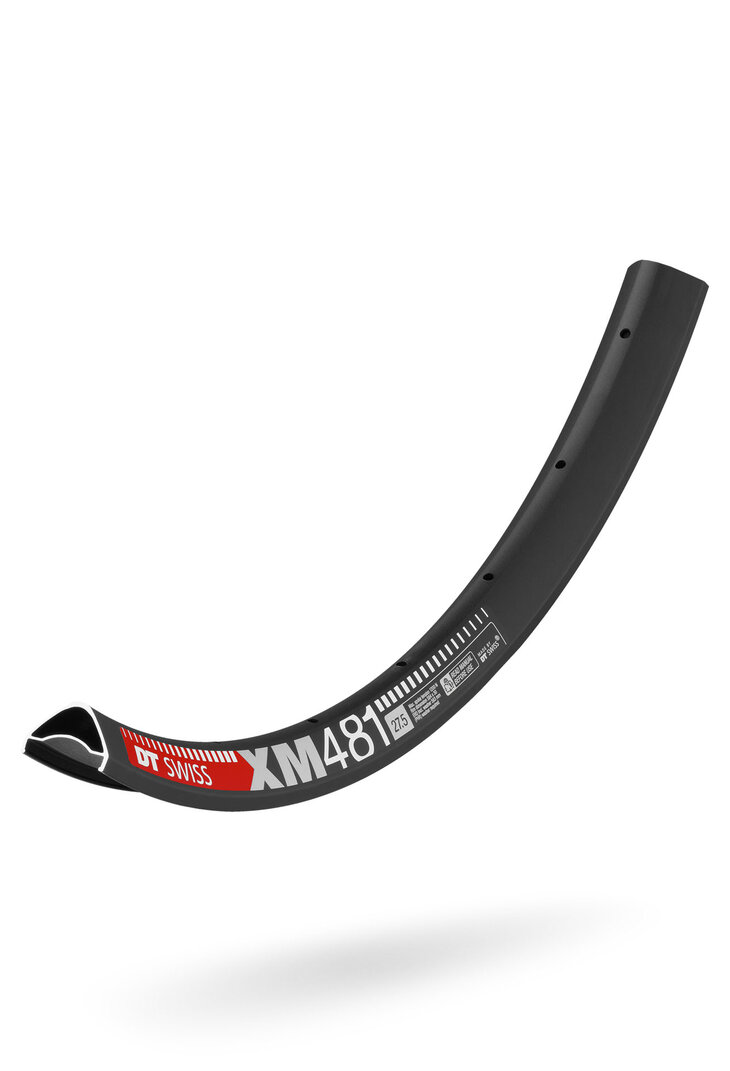

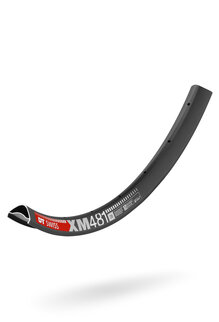

XM 481
Strong and lightweight welded AM rim in 30 mm inner with for modern tires.
- MSRP US$ from $ 157
- Net weight from 510 g
- from € 99
- from CHF 99
Product details
Riders who like the idea of giving their tires some extra volume and support will find the ideal partner with the XM 481. Its full 30 mm of inner width together with a minimal hook and perfect tubeless compatibility make it ready to tackle all demanding trails, both up and down the mountain.
- Material ALUMINIUM
Model finder
Just a few clicks to find your model. Please use the filter below.
XM 481 27.5 30 mm DB VI
RDXM4865028S011430- Net weight 510 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Color -
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 563 mm
- Inner Width 30 mm
- Outer width 35 mm
- Rim Height 21 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
-
Inclusive
DT Pro Lock Squorx alu silver
Washer PHR
XM 481 27.5 30 mm DB VI
RDXM4865032S011431- Net weight 510 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Color -
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 563 mm
- Inner Width 30 mm
- Outer width 35 mm
- Rim Height 21 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
-
Inclusive
DT Pro Lock Squorx alu silver
Washer PHR
XM 481 29 30 mm DB VI
RDXM4829P28S011432- Net weight 550 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Color -
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 601 mm
- Inner Width 30 mm
- Outer width 35 mm
- Rim Height 21 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
-
Inclusive
DT Pro Lock Squorx alu silver
Washer PHR
XM 481 29 30 mm DB VI
RDXM4829P32S011433- Net weight 550 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Approved for e-bikes Yes (max. 32Km/h or max. 250W)
- Color -
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 601 mm
- Inner Width 30 mm
- Outer width 35 mm
- Rim Height 21 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
-
Inclusive
DT Pro Lock Squorx alu silver
Washer PHR
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Find help and answers for frequently asked questions here.
According to your selection XM 481 we found 4 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
Find help and answers for frequently asked questions here.
-
DT Swiss sells its products exclusively via official dealers, some of which also have online shops. Please contact your dealer. Or contact the distributor for your country – please use the contact form and select your country first, followed by "Product availability" as the subject.
-
Compare the products on our website, where you can find our entire range and all technical specifications. Use the Wheel Finder to find the right wheel in just a few clicks.
Alternatively, contact a dealer – they know all about DT Swiss products and technologies and can advise you.
-
Caution when choosing brake pads for wheels with rim brakes!
- Only "SwissStop Black Prince" brake pads may be used on carbon rims.
- Only "SwissStop BXP Blue" brake pads may be used on OXIC rims.
The use of incorrect brake pads can cause the rim to fail. DT Swiss takes no responsibility in this case. Please also note that brake pads which were previously used on aluminum rims must not be used on carbon rims. The aluminum abrasion in the brake pad can destroy the carbon. For further information about your wheel, please refer to the user manual.
If you notice these damage patterns on your wheel, contact a service center.
-
As wider rims have developed, so have wider tires. However, the different tire and rim widths are not universally compatible. Essentially: The wider the rim, the wider the tires that can be fitted.
-
Here's an explanation of both systems.
