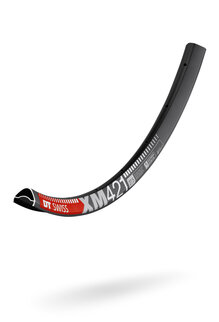

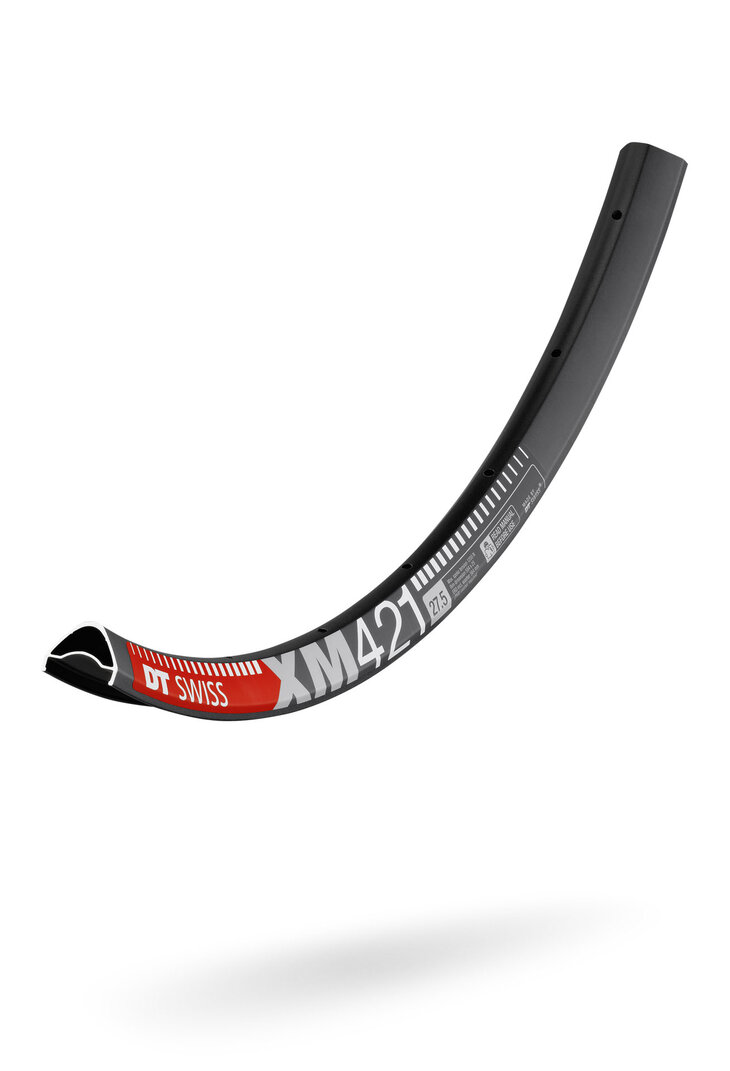

XM 421
25 mm welded rim made for the demands of AM.
- MSRP US$ from $ 151
- Net weight from 440 g
Product details
A lightweight rim as wide as a downhill rim was just a couple years ago? State of the art materials and excessive testing make it possible. DT Swiss knows exactly how light it can design a product to fullfill its purpose to perfection. This is why the XM 421 is as light as an All Mountain rim can get, yet still fears no trail, no matter what rock gardens it has on the menu.
- Material ALUMINIUM
Model finder
Just a few clicks to find your model. Please use the filter below.
There are 4 models of this product.
Show all
Hide all
Zoom image
XM 421 27.5 25 mm DB VI
RDXM4265028S011455- Net weight 440 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 564 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
- Inclusive -
Zoom image
XM 421 27.5 25 mm DB VI
RDXM4265032S011456- Net weight 440 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 564 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
- Inclusive -
Zoom image
XM 421 29 25 mm DB VI
RDXM4229N28S011457- Net weight 465 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 602 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
- Inclusive -
Zoom image
XM 421 29 25 mm DB VI
RDXM4229N32S011458- Net weight 465 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 602 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
- Inclusive -
Product support
Manuals, how-to videos, spareparts & conversion.
According to your selection XM 421 we found 4 models. Select the model for which you need product support.
