350
A hub featuring proven technology to extend eMTB adventures.
- Net weight from 176 g
Product details
The new 350 Hybrid hub features a larger hub body and the proven Ratchet System with 24 teeth for improved durability. The increased hub flange size and larger spoke holes are designed to accommodate 2.34 mm DT Swiss spokes, providing greater resistance to acceleration and braking torques. The freehub system, made of hardened steel, further enhances the overall system durability. Consider building this hub into your next eMTB wheelset for an extended and stress-free riding experience.
- Material Aluminum, Aluminum / Steel
- Freehub system Ratchet System 24
Model finder
Just a few clicks to find your model. Please use the filter below.

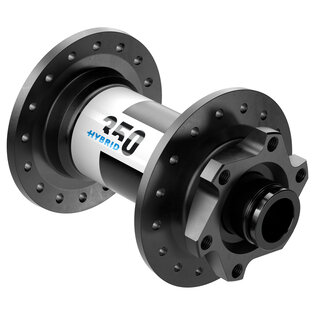

Front wheel 350 DBIS Boost for thru axle 15mm
H350BDIXR32SA4717S- Net weight 218 g
- Field of application Hybrid MTB
- Material Aluminum
- Brake Interface Disc IS (6-bolt)
- Cassette interface -
- Freehub body -
- Freehub system -
- Inclusive -
Front wheel 350 DBIS Boost for thru axle 15mm
H350BDIXR36SA4717S- Net weight 218 g
- Field of application Hybrid MTB
- Material Aluminum
- Brake Interface Disc IS (6-bolt)
- Cassette interface -
- Freehub body -
- Freehub system -
- Inclusive -

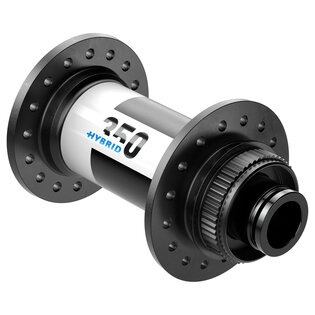

Front wheel 350 DBCL BOOST for thru axle 15mm
H350BCIXR32SA9489S- Net weight 176 g
- Field of application Hybrid MTB
- Material Aluminum
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Inclusive -

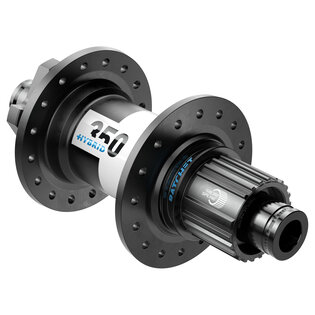

Rear wheel 350 DBIS Boost for thru axle 12mm
H350TDD3R32SA9096S- Net weight 352 g
- Field of application Hybrid MTB
- Material Aluminum / Steel
- Brake Interface Disc IS (6-bolt)
- Cassette interface Shimano Micro Spline
- Freehub body Shimano 12SP Steel (SS12)
- Freehub system Ratchet System 24
- Inclusive -
Rear wheel 350 HYMDBIS Boost for thru axle 12mm
H350TDD3R36SA9096S- Net weight 361 g
- Field of application Hybrid MTB
- Material Aluminum / Steel
- Brake Interface Disc IS (6-bolt)
- Cassette interface Shimano Micro Spline
- Freehub body Shimano 12SP Steel (SS12)
- Freehub system Ratchet System 24
- Inclusive -

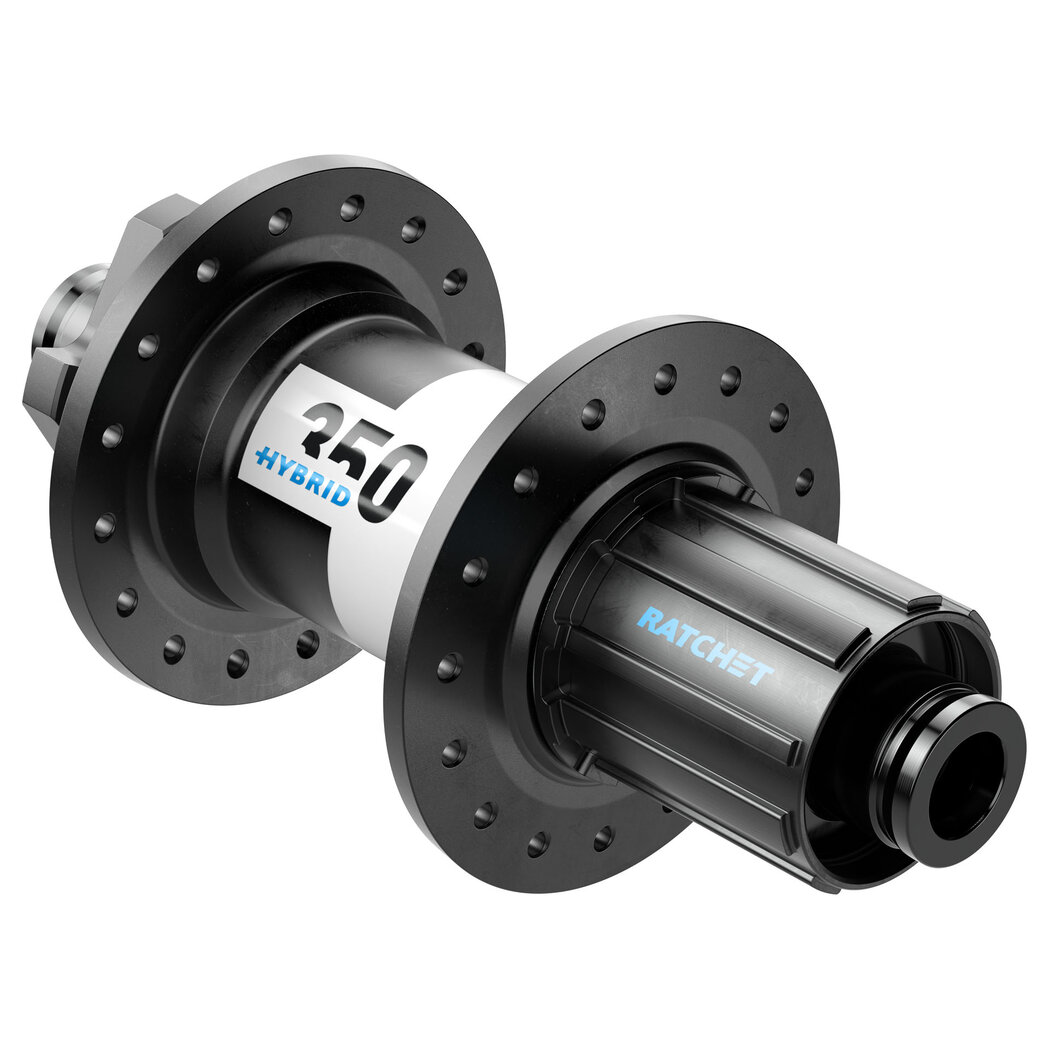

Rear wheel 350 DBIS Boost for thru axle 12mm
H350TDDSR32SA4728S- Net weight 370 g
- Field of application Hybrid MTB
- Material Aluminum / Steel
- Brake Interface Disc IS (6-bolt)
- Cassette interface Shimano MTB
- Freehub body Shimano Steel (SS)
- Freehub system Ratchet System 24
- Inclusive -
Rear wheel 350 HYMDBIS Boost for thru axle 12mm
H350TDDSR36SA4728S- Net weight 379 g
- Field of application Hybrid MTB
- Material Aluminum / Steel
- Brake Interface Disc IS (6-bolt)
- Cassette interface Shimano MTB
- Freehub body Shimano Steel (SS)
- Freehub system Ratchet System 24
- Inclusive -

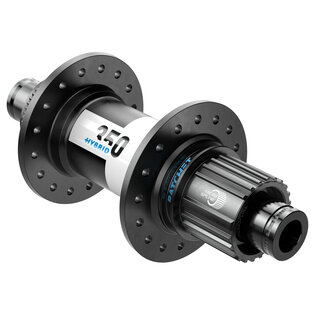

Rear wheel 350 HYMDBCL Boost for thru axle 12mm
H350TCD3R32SA9513S- Net weight 321 g
- Field of application Hybrid MTB
- Material Aluminum / Steel
- Brake Interface Disc Center Lock
- Cassette interface Shimano Micro Spline
- Freehub body Shimano 12SP Steel (SS12)
- Freehub system Ratchet System 24
- Inclusive -
Rear wheel 350 HYMDBCL Boost for thru axle 12mm
H350TCDSR32SA9853S- Net weight 339 g
- Field of application Hybrid MTB
- Material Aluminum / Steel
- Brake Interface Disc Center Lock
- Cassette interface Shimano MTB
- Freehub body Shimano Steel (SS)
- Freehub system Ratchet System 24
- Inclusive -
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Find help and answers for frequently asked questions here.
According to your selection 350 we found 9 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
Find help and answers for frequently asked questions here.
-
Under Product Support, you will find exact details of all conversion options for your product (wheel, hub). First go to Product Support and select your product using the DT Swiss ID or filter. Under "Conversion" you will find the exact details for all conversion options. You will also find helpful How To videos and manuals.
-
Regular hub service is worth it! Dust and dirt cause wear parts to wear out faster, which can impair function. We recommend cleaning the hub every 12 months and lubricating it with a suitable grease. Here you can find How To videos and user manuals for hub servicing. If you need to replace a ratchet, please contact our Service Center or a dealer.
-
There are various reasons why the freehub may be stuck. Our technical manuals can help you find the cause:
Please check the user manual in section 3.
For professional evaluation, please contact our Service Center or a dealer.
You can also convert our Pawl hubs to the Ratchet LN System. You can buy the Ratchet LN upgrade kit from dealers. The How To video explains conversion step by step.
-
For MTB, boost hubs have become the new industry standard. The greater bearing distance increases the lateral stiffness of the bike and reduces ball bearing wear.
Unfortunately, you cannot convert non-boost hubs to wider distances nor boost to narrower distances (non-boost). This is because the boost hubs are wider in the center.
-
Our hubs are marked with a production code. This starts with a "P" and can be found on the hub, either on the flange (on the disc brake side) or near the freehub body. See our How To video for more information.
