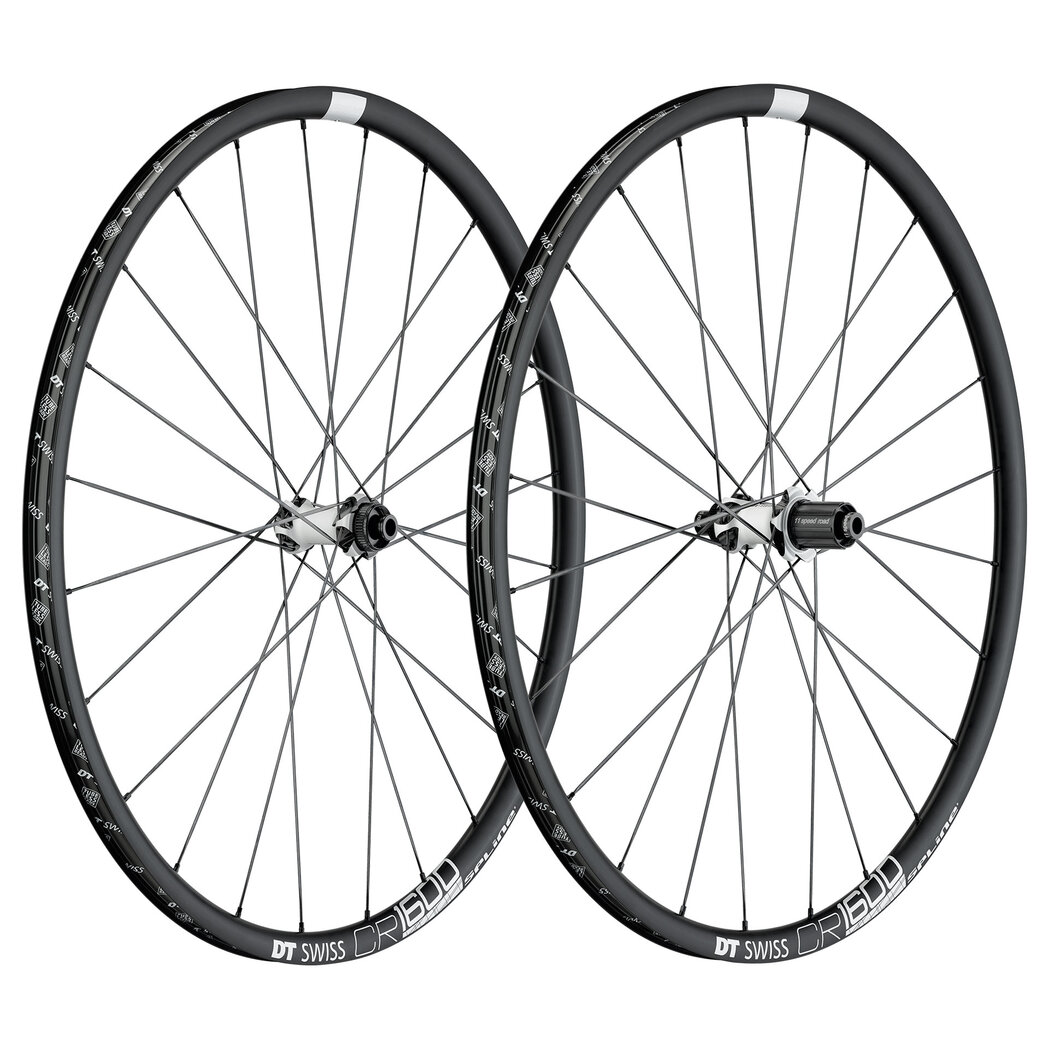

CR 1600 SPLINE®

A wheelset made for cutting through mud and dancing along frozen forest trails.

  • MSRP per set US$ from $ 707
  • Weight per set from 1709 g
Product details

Product details

Is there anything better than passing a mountainbiker on “his trail” while gripping the hoods of your cross bike? Probably not. But the CR 1600 SPLINE offers even more. You’ll feel the efficiency of this wheel whatever surface you're riding on. The combination of wide straightpull spokes and a high-quality ratchet system hub provide you with all the durability and support you need: day in, day out, and on every one of your new adventures.

  • Hub type 350 with Ratchet System 18
  • Rim Aluminum, Clincher
  • Rim height 23 mm
  • Spokes DT aero comp® wide straightp
Technologies

technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

Tubeless
Technology

Read

Ratchet System
Technology

Read

Prolock
Technology

Read
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Brake interface

Disc Center Lock
02

Rim height

23 mm
03

Rim diameter

29" / 700C
04

Axle system

12 mm Thru Axle
05

Built-in dimension

142 mm
There are 3 models of this product.
Show all
Hide all

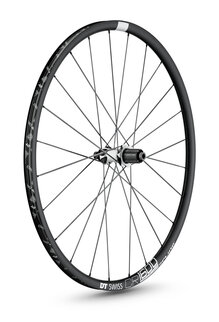

REAR WHEEL

CR 1600 SPLINE db 23 12/142 mm Shimano

WCR1600NIDMSA04480
General
  • Net weight 937 g
  • recommended system weight max. 130 kg
  • ASTM classification 2
Rim
  • Material Aluminum
  • Rim type Clincher
  • Rim diameter 29" / 700C
  • Rim height 23 mm
  • Decal type Waterslide
  • Inner width 22 mm
  • Outer width 26 mm
  • Cross-section
Hub
  • Hub type 350
  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Brake interface Disc Center Lock
  • Freehub body Shim. RD. 11SP Forged (ASF11)
  • Freehub system Ratchet System 18
Spokes & Nipples
  • Spokes DT aero comp® wide straightp
  • Spoke pattern 2-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu
Inclusive
  • Inclusive Tubeless tape 25 mm
    Tubeless valve road 32 mm
    IS 6-bolt adapter Road
    5 mm endcap Kit

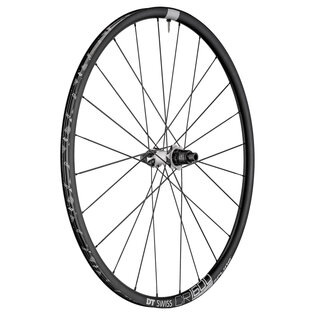

REAR WHEEL

CR 1600 SPLINE db 23 12/142 mm Sram XDR

WCR1600NID1SA13782

  • Net weight 918 g
  • recommended system weight max. 130 kg
  • ASTM classification 2

  • Material Aluminum
  • Rim type Clincher
  • Rim diameter 29" / 700C
  • Rim height 23 mm
  • Decal type Waterslide
  • Inner width 22 mm
  • Outer width 26 mm
  • Cross-section

  • Hub type 350
  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Brake interface Disc Center Lock
  • Freehub body SRAM XDR RD. (AXDR)
  • Freehub system Ratchet System 18

  • Spokes DT aero comp® wide straightp
  • Spoke pattern 2-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 25 mm
    Tubeless valve road 32 mm
    IS 6-bolt adapter Road
    5 mm endcap Kit

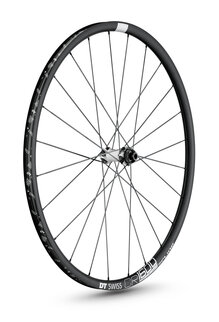

FRONT WHEEL

CR 1600 SPLINE db 23 12/100 mm

WCR1600AIDXSA04478

  • Net weight 791 g
  • recommended system weight max. 130 kg
  • ASTM classification 2

  • Material Aluminum
  • Rim type Clincher
  • Rim diameter 29" / 700C
  • Rim height 23 mm
  • Decal type Waterslide
  • Inner width 22 mm
  • Outer width 26 mm
  • Cross-section

  • Hub type 350
  • Axle system 12 mm Thru Axle
  • Built-in dimension 100 mm
  • Brake interface Disc Center Lock
  • Freehub body -
  • Freehub system -

  • Spokes DT aero comp® wide straightp
  • Spoke pattern 2-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 25 mm
    Tubeless valve road 32 mm
    IS 6-bolt adapter Road
    5 mm endcap Kit
    15 mm endcap kit
