HX 1501 SPLINE® ONE
eMTB specific 240 hub laced with stronger spokes in a reinforced rim - an eMTB Dream.
- MSRP per set US$ from $ 1415
- Weight per set from 1898 g
Product details
For some, flow means to pedal up a never ending gravel climb and getting into a trance-like rhythm. To others, flow is when corners are linked up seamlessly, dirt flying sideways. And yet another group of riders seeks new adventure in burly terrain. Either way: The wheels of the HX 1501 SPLINE ONE line up feel right at home doing all of the above. Strong, light and offering the right width for your riding needs, it climbs with the best and descends with the best. The Ratchet System is the most durable freehub system out there, safely driving you forward in any conditions, at any time. A light and strong spec through and through makes sure you pedal into the flow, whatever your flow is.
- Hub type 240 with Ratchet System 24
- Rim Aluminum, Tubeless crotched/clincher TC
- Inner width 25 mm, 30 mm, 35 mm
- Spokes DT hybrid 2
Model finder
Just a few clicks to find your model. Please use the filter below.

HX 1501 SPLINE ONE 29 - 25 mm IS 12/148 mm Shimano
WHX1501TFDSSA08675- Net weight 1098 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material Aluminum
- Tire interface Tubeless crotched/Clincher TC
- Valve hole Presta
- Rim diameter 29" / 700C
- Decal type Waterslide
- Inner width 25 mm
- Outer width 30 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body Shimano Steel (SS)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
Tubeless valve MTB 32 mm
Sram XD freehub body kit

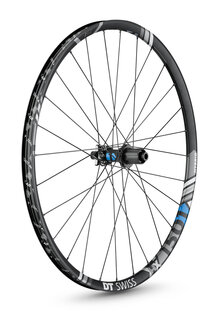

HX 1501 SPLINE ONE 27.5 - 25 mm IS 12/148 mm Shimano
WHX1501THDBSA00776- Net weight 1036 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material Aluminum
- Tire interface Tubeless crotched/Clincher TC
- Valve hole Presta
- Rim diameter 27.5" / 650B
- Decal type Waterslide
- Inner width 25 mm
- Outer width 30 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body Shimano Steel (SS)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
Tubeless valve MTB 32 mm
Sram XD freehub body kit

HX 1501 SPLINE ONE 29 - 30 mm IS 12/148 mm Shimano
WHX1501TFD3SA10123- Net weight 1123 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material Aluminum
- Tire interface Tubeless crotched/Clincher TC
- Valve hole Presta
- Rim diameter 29" / 700C
- Decal type Waterslide
- Inner width 30 mm
- Outer width 35 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body Shimano 12SP Steel (SS12)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB 32 mm

HX 1501 SPLINE ONE 29 - 30 mm IS 12/148 mm Shimano
WHX1501TFDBSA06091- Net weight 1128 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material Aluminum
- Tire interface Tubeless crotched/Clincher TC
- Valve hole Presta
- Rim diameter 29" / 700C
- Decal type Waterslide
- Inner width 30 mm
- Outer width 35 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body Shimano Steel (SS)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB 32 mm
Sram XD freehub body kit

HX 1501 SPLINE ONE 27.5 - 30 mm IS 12/148 mm Shimano
WHX1501THD3SA10119- Net weight 1071 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material Aluminum
- Tire interface Tubeless crotched/Clincher TC
- Valve hole Presta
- Rim diameter 27.5" / 650B
- Decal type Waterslide
- Inner width 30 mm
- Outer width 35 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body Shimano 12SP Steel (SS12)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB 32 mm

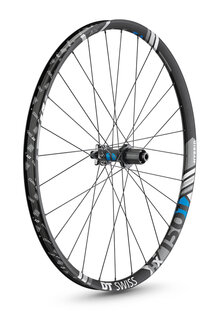

HX 1501 SPLINE ONE 27.5 - 30 mm IS 12/148 mm Shimano
WHX1501THDBSA00779- Net weight 1076 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material Aluminum
- Tire interface Tubeless crotched/Clincher TC
- Valve hole Presta
- Rim diameter 27.5" / 650B
- Decal type Waterslide
- Inner width 30 mm
- Outer width 35 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body Shimano Steel (SS)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB 32 mm
Sram XD freehub body kit

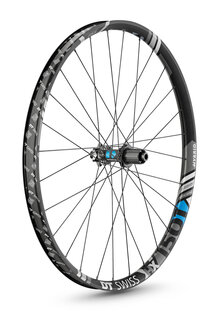

HX 1501 SPLINE ONE 27.5 - 35 mm IS 12/148 mm Shimano
WHX1501THD3SA10129- Net weight 1126 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material Aluminum
- Tire interface Tubeless crotched/Clincher TC
- Valve hole Presta
- Rim diameter 27.5" / 650B
- Decal type Waterslide
- Inner width 35 mm
- Outer width 40 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body Shimano 12SP Steel (SS12)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 37 mm
Tubeless valve MTB 32 mm

HX 1501 SPLINE ONE 27.5 - 35 mm IS 12/148 mm Shimano
WHX1501THDBSA00782- Net weight 1131 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material Aluminum
- Tire interface Tubeless crotched/Clincher TC
- Valve hole Presta
- Rim diameter 27.5" / 650B
- Decal type Waterslide
- Inner width 35 mm
- Outer width 40 mm
-
Cross-section
- Hub type 240
- Axle system 12 mm Thru Axle
- Built-in dimension 148 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body Shimano Steel (SS)
- Freehub system Ratchet System 24
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 37 mm
Tubeless valve MTB 32 mm
Sram XD freehub body kit

HX 1501 Spline ONE 29 - 25 mm IS 15/110 mm
WHX1501BFIXSA08673- Net weight 923 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material Aluminum
- Tire interface Tubeless crotched/Clincher TC
- Valve hole Presta
- Rim diameter 29" / 700C
- Decal type Waterslide
- Inner width 25 mm
- Outer width 30 mm
-
Cross-section
- Hub type 240
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body -
- Freehub system -
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
Tubeless valve MTB 32 mm

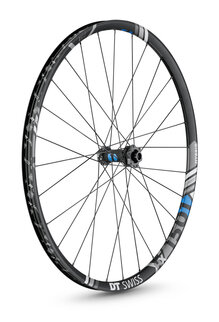

HX 1501 Spline ONE 27.5 - 25 mm IS 15/110 mm
WHX1501BHIXSA00775- Net weight 862 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material Aluminum
- Tire interface Tubeless crotched/Clincher TC
- Valve hole Presta
- Rim diameter 27.5" / 650B
- Decal type Waterslide
- Inner width 25 mm
- Outer width 30 mm
-
Cross-section
- Hub type 240
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body -
- Freehub system -
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 27 mm
Tubeless valve MTB 32 mm

HX 1501 Spline ONE 29 - 30 mm IS 15/110 mm
WHX1501BFIXSA06090- Net weight 953 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material Aluminum
- Tire interface Tubeless crotched/Clincher TC
- Valve hole Presta
- Rim diameter 29" / 700C
- Decal type Waterslide
- Inner width 30 mm
- Outer width 35 mm
-
Cross-section
- Hub type 240
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body -
- Freehub system -
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB 32 mm

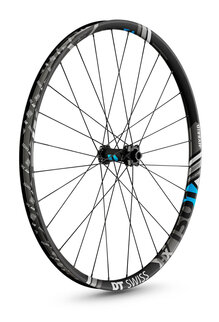

HX 1501 Spline ONE 27.5 - 30 mm IS 15/110 mm
WHX1501BHIXSA00778- Net weight 902 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material Aluminum
- Tire interface Tubeless crotched/Clincher TC
- Valve hole Presta
- Rim diameter 27.5" / 650B
- Decal type Waterslide
- Inner width 30 mm
- Outer width 35 mm
-
Cross-section
- Hub type 240
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body -
- Freehub system -
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 32 mm
Tubeless valve MTB 32 mm

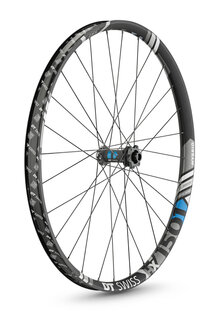

HX 1501 Spline ONE 27.5 - 35 mm IS 15/110 mm
WHX1501BHIXSA00781- Net weight 957 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material Aluminum
- Tire interface Tubeless crotched/Clincher TC
- Valve hole Presta
- Rim diameter 27.5" / 650B
- Decal type Waterslide
- Inner width 35 mm
- Outer width 40 mm
-
Cross-section
- Hub type 240
- Axle system 15 mm Thru Axle
- Built-in dimension 110 mm Boost
- Brake interface Disc IS (6-bolt)
- Freehub body -
- Freehub system -
- Spokes left DT hybrid 2
- Spokes right DT hybrid 2
- Spoke pattern Three-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 37 mm
Tubeless valve MTB 32 mm
