H 1950 CLASSIC

Developed for eMTB adventures - reliable and affordable.

  • MSRP per set US$ from $ 489
  • Weight per set from 2149 g
Product details

Product details

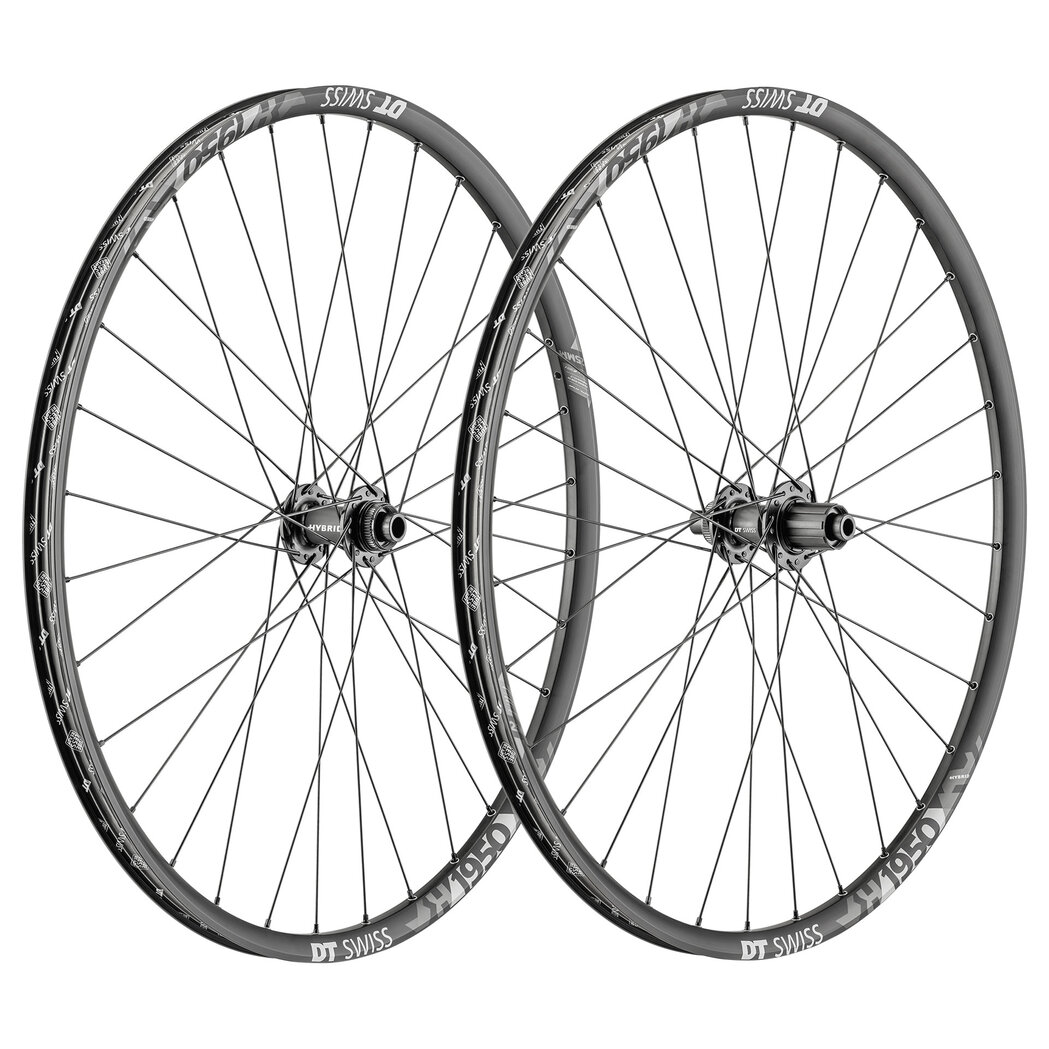

The new H 1950 CLASSIC is the best possible wheel for any adventure, whether it's on narrow city streets, bumpy forest roads or discovering what’s at the end of the map. The technology of the H 1950 CLASSIC has been specifically developed for e-bikes and gives you the reliability and robustness you need when you’re in the middle of nowhere. The 25 mm rim width provides plenty of support, ensuring that whether you have an e-MTB, e-Urban or a fully-loaded touring bike, the H 1950 CLASSIC will be your trusty companion.

  • Hub type 350, 370 with 3 Pawl
  • Rim Aluminum, Clincher
  • Inner width 25 mm
  • Spokes DT alpine III®
Technologies

mission hybrid

T Swiss is on a mission, a mission to bring eMTB riders the components they need. The people behind this mission are people who know, understand and most importantly, RIDE eMTBs. Go ahead and discover our understanding of what eMTBs are here for and discover the technologies we apply to make it happen.

technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

Tubeless
Technology

Read

Prolock
Technology

Read
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Rim diameter

29" / 700C
02

Inner width

25 mm
03

Axle system

12 mm Thru Axle
04

Built-in dimension

142 mm
05

Freehub body

Shimano Steel (SS)
06

Brake interface

Disc Center Lock
We have found 1 matching wheel-set.
Show all
Hide all





General
  • Net weight
  • recommended system weight max.
  • ASTM classification
Rim
  • Material
  • Rim type
  • Rim diameter
  • Decal type
  • Inner width
  • Outer width
  • Cross-section
Hub
  • Hub type
  • Axle system
  • Built-in dimension
  • Brake interface
  • Freehub body
  • Freehub system
Spokes & Nipples
  • Spokes
  • Spoke pattern
  • Nipples
Inclusive
  • Inclusive
REAR WHEEL

H 1950 CLASSIC 29 - 25 mm CL 12/142 mm

W0H1950NEDSSA09244
General
  • Net weight 1166 g
  • recommended system weight max. 150 kg
  • ASTM classification 4
Rim
  • Material Aluminum
  • Rim type Clincher
  • Rim diameter 29" / 700C
  • Decal type Hub vinyl / Rim waterslide
  • Inner width 25 mm
  • Outer width 30 mm
  • Cross-section
Hub
  • Hub type 370
  • Axle system 12 mm Thru Axle
  • Built-in dimension 142 mm
  • Brake interface Disc Center Lock
  • Freehub body Shimano Steel (SS)
  • Freehub system 3 Pawl
Spokes & Nipples
  • Spokes DT alpine III®
  • Spoke pattern 3-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu
Inclusive
  • Inclusive Tubeless tape 27 mm
    Tubeless valve MTB 32 mm
    IS 6-bolt adapter MTB
    5 mm endcap Kit
FRONT WHEEL

H 1950 CLASSIC 29 - 25 mm CL 15/100 mm

W0H1950AEIXSA09243

  • Net weight 983 g
  • recommended system weight max. 150 kg
  • ASTM classification 4

  • Material Aluminum
  • Rim type Clincher
  • Rim diameter 29" / 700C
  • Decal type Hub vinyl / Rim waterslide
  • Inner width 25 mm
  • Outer width 30 mm
  • Cross-section

  • Hub type 350
  • Axle system 15 mm Thru Axle
  • Built-in dimension 100 mm
  • Brake interface Disc Center Lock
  • Freehub body -
  • Freehub system -

  • Spokes DT alpine III®
  • Spoke pattern 3-cross (1:1)
  • Nipples DT ProLock Squorx ProHead alu

  • Inclusive Tubeless tape 27 mm
    Tubeless valve MTB 32 mm
    IS 6-bolt adapter MTB
    5 mm endcap Kit
