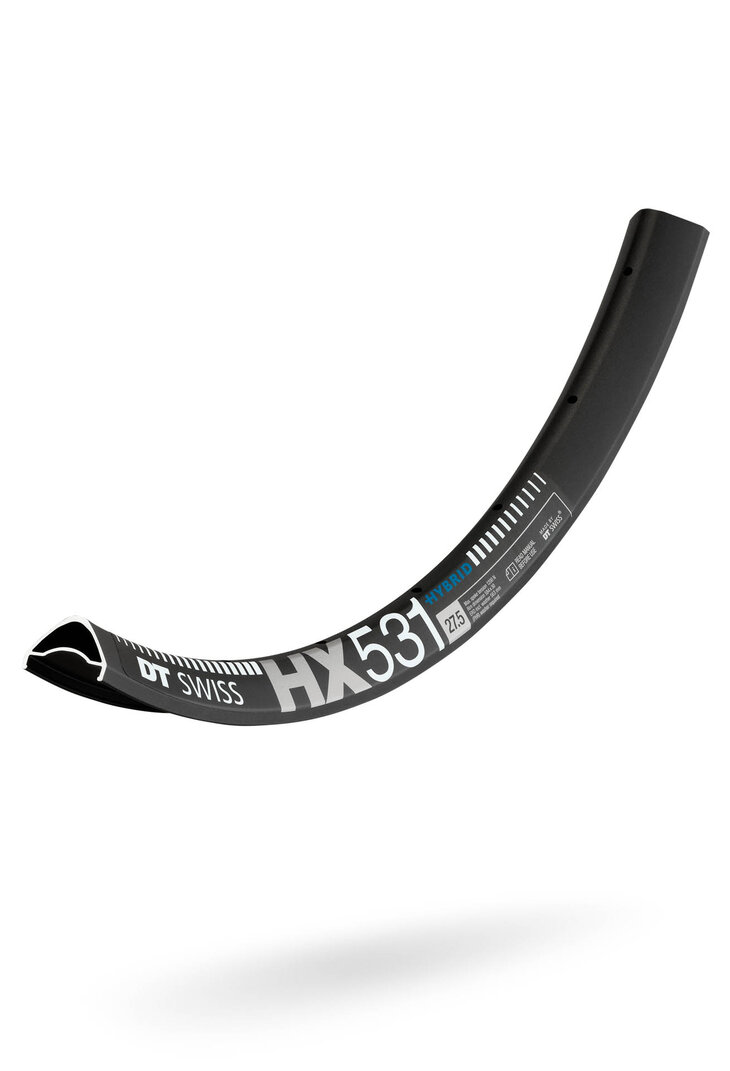

HX 531

Welded 30 mm wide E-MTB rim - the ideal allrounder.

  • MSRP US$ from $ 176
  • Net weight from 555 g
Product details

Product details

When you head into the unknown, whether on a 29er or a 27.5er, the HX 531 with its 30 mm internal width is the perfect choice. With an ideal position in the middle of the strength, to weight, to width range, it works with many tire sizes and is the ideal choice for all eMTB's meant to be ridden on proper MTB terrain.

  • Material ALUMINIUM
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Rim diameter

02

Number of holes

There are 6 models of this product.
Show all
Hide all

HX 531 27.5 30 mm DB VI

RDHX53BDPW28SA0570
General
  • Net weight 555 g
  • max. system weight 150 kg
  • ASTM classification 4
Material & Brake Interface
  • Material ALUMINIUM
  • Brake interface Disc
Dimensions
  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 563 mm
  • Inner width 30 mm
  • Outer width 35 mm
  • Rim height 21 mm
  • Cross-section
Holes
  • Number of holes 28
  • Bore type Non-Eyelet (PHR washer)
Inclusive
  • Inclusive -

HX 531 27.5 30 mm DB VI

RDHX53BDPW32SA0571

  • Net weight 555 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 563 mm
  • Inner width 30 mm
  • Outer width 35 mm
  • Rim height 21 mm
  • Cross-section

  • Number of holes 32
  • Bore type Non-Eyelet (PHR washer)

  • Inclusive -

HX 531 27.5 30 mm DB VI

RDHX53BDPW36SA9790

  • Net weight 555 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 563 mm
  • Inner width 30 mm
  • Outer width 35 mm
  • Rim height 21 mm
  • Cross-section

  • Number of holes 36
  • Bore type Non-Eyelet (PHR washer)

  • Inclusive -

HX 531 29 30 mm DB VI

RDHX53CDPW28SA5988

  • Net weight 590 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 601 mm
  • Inner width 30 mm
  • Outer width 35 mm
  • Rim height 21 mm
  • Cross-section

  • Number of holes 28
  • Bore type Non-Eyelet (PHR washer)

  • Inclusive -

HX 531 29 30 mm DB VI

RDHX53CDPW32SA5989

  • Net weight 590 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 601 mm
  • Inner width 30 mm
  • Outer width 35 mm
  • Rim height 21 mm
  • Cross-section

  • Number of holes 32
  • Bore type Non-Eyelet (PHR washer)

  • Inclusive -

HX 531 29 30 mm DB VI

RDHX53CDPW36SA9791

  • Net weight 590 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 601 mm
  • Inner width 30 mm
  • Outer width 35 mm
  • Rim height 21 mm
  • Cross-section

  • Number of holes 36
  • Bore type Non-Eyelet (PHR washer)

  • Inclusive -
