HX 491

Light, welded 30 mm wide rim – stiff and precise.

  • MSRP US$ from $ 153
  • Net weight from 515 g
Product details

Product details

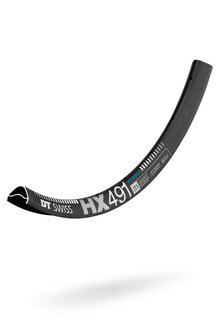

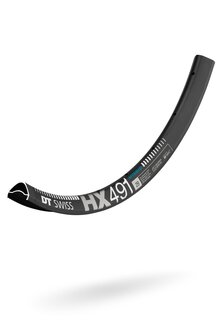

This lightweight, stiff, and precise aluminum rim is approved for eMTB use. 25 mm internal width supports mid volume MTB tires exceptionally well. The bead blasted surface finish is durable and retains its good looks even after many hard trail miles.

  • Material ALUMINIUM
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Rim diameter

02

Number of holes

There are 6 models of this product.
Show all
Hide all

HX 491 27.5 25 mm DB VI

RDHX49BDPW28SA0568
General
  • Net weight 515 g
  • max. system weight 150 kg
  • ASTM classification 4
Material & Brake Interface
  • Material ALUMINIUM
  • Brake interface Disc
Dimensions
  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 563 mm
  • Inner width 25 mm
  • Outer width 30 mm
  • Rim height 21 mm
  • Cross-section
Holes
  • Number of holes 28
  • Bore type Non-Eyelet (PHR washer)
Inclusive
  • Inclusive -

HX 491 27.5 25 mm DB VI

RDHX49BDPW32SA0569

  • Net weight 515 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 563 mm
  • Inner width 25 mm
  • Outer width 30 mm
  • Rim height 21 mm
  • Cross-section

  • Number of holes 32
  • Bore type Non-Eyelet (PHR washer)

  • Inclusive -

HX 491 27.5 25 mm DB VI

RDHX49BDPW36SA0077

  • Net weight 515 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 563 mm
  • Inner width 25 mm
  • Outer width 30 mm
  • Rim height 21 mm
  • Cross-section

  • Number of holes 36
  • Bore type Non-Eyelet (PHR washer)

  • Inclusive -

HX 491 29 25 mm DB VI

RDHX49CDPW28SA9829

  • Net weight 550 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 601 mm
  • Inner width 25 mm
  • Outer width 30 mm
  • Rim height 21 mm
  • Cross-section

  • Number of holes 28
  • Bore type Non-Eyelet (PHR washer)

  • Inclusive -

HX 491 29 25 mm DB VI

RDHX49CDPW32SA9830

  • Net weight 550 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 601 mm
  • Inner width 25 mm
  • Outer width 30 mm
  • Rim height 21 mm
  • Cross-section

  • Number of holes 32
  • Bore type Non-Eyelet (PHR washer)

  • Inclusive -

HX 491 29 25 mm DB VI

RDHX49CDPW36SA0078

  • Net weight 550 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 601 mm
  • Inner width 25 mm
  • Outer width 30 mm
  • Rim height 21 mm
  • Cross-section

  • Number of holes 36
  • Bore type Non-Eyelet (PHR washer)

  • Inclusive -
