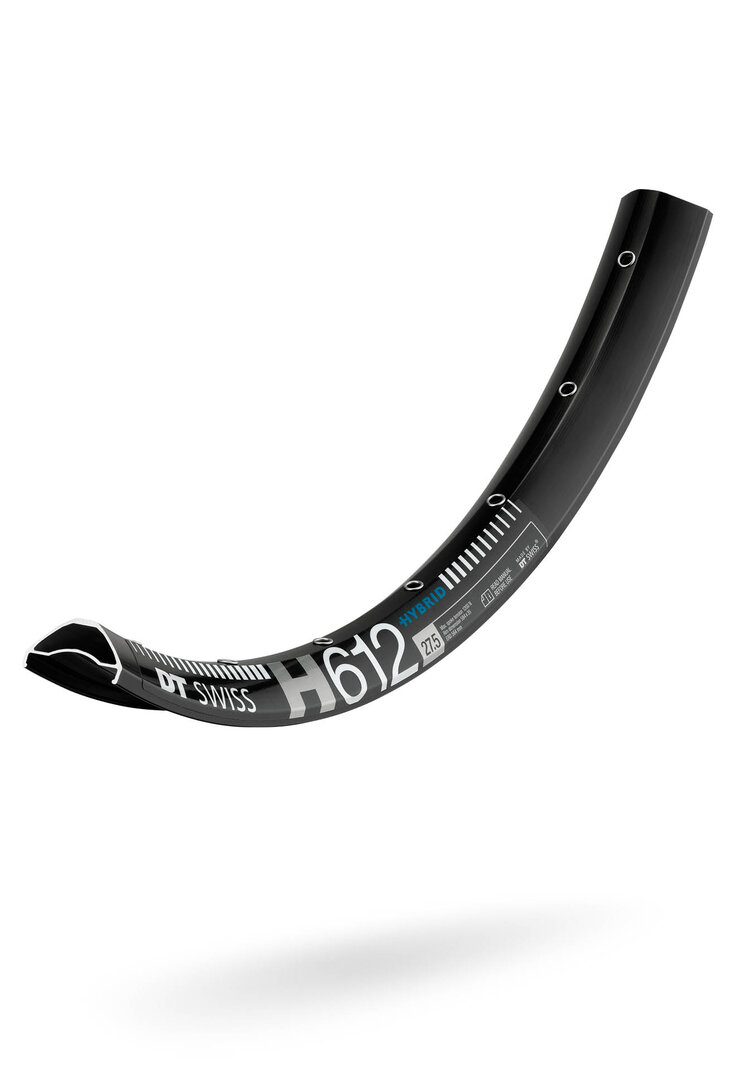

H 612
Wide and durable - a 35 mm wide E-MTB rim.
- MSRP US$ from $ 146
- Net weight from 635 g
Product details
The best rim for plus tire riders who want to spend more time riding and less time in the workshop. The H 612 with its 35 mm internal width supports all modern plus tire sizes and does so without weighing you down, leaving you more energy for the next uphill.
- Material ALUMINIUM
Model finder
Just a few clicks to find your model. Please use the filter below.
There are 4 models of this product.
Show all
Hide all
Zoom image
H 612 27.5 35 mm DB VI
RDH061BDPS28SA5222- Net weight 635 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 564 mm
- Inner Width 35 mm
- Outer width 40 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 612 27.5 35 mm DB VI
RDH061BDPS32SA5223- Net weight 635 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 564 mm
- Inner Width 35 mm
- Outer width 40 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 612 27.5 35 mm DB VI
RDH061BDPS28SB5222- Net weight 635 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 564 mm
- Inner Width 35 mm
- Outer width 40 mm
- Rim Height 20 mm
- Cross-section
- Number of holes 28
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 612 27.5 35 mm DB VI
RDH061BDPS32SB5223- Net weight 635 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 564 mm
- Inner Width 35 mm
- Outer width 40 mm
- Rim Height 20 mm
- Cross-section
- Number of holes 32
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
