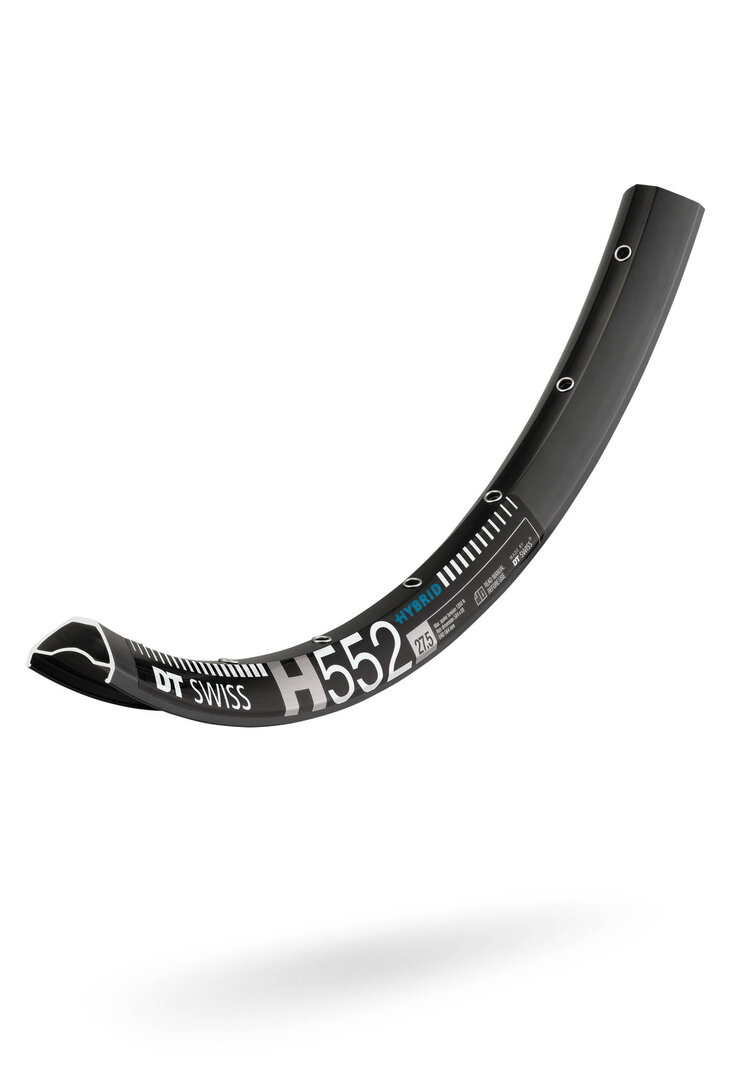

H 552

Sleeved, 30 mm wide E-MTB rim for modern tires.

  • MSRP US$ from $ 125
  • Net weight from 580 g
Product details

Product details

The all-terrain beast for the budget minded rider the H 552 with its 30 mm internal width allows the rider to choose tire widths freely and delivers DT Swiss reliability at a price that will really charge your batteries.

  • Material ALUMINIUM
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Rim diameter

02

Number of holes

There are 6 models of this product.
Show all
Hide all

H 552 27.5 30 mm DB VI

RDH055BDPS28SA5218
General
  • Net weight 580 g
  • max. system weight 150 kg
  • ASTM classification 4
Material & Brake Interface
  • Material ALUMINIUM
  • Brake interface Disc
Dimensions
  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 564 mm
  • Inner width 30 mm
  • Outer width 35 mm
  • Rim height 20 mm
  • Cross-section
Holes
  • Number of holes 28
  • Bore type Eyelet
Inclusive
  • Inclusive -

H 552 27.5 30 mm DB VI

RDH055BDPS32SA5219

  • Net weight 580 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 564 mm
  • Inner width 30 mm
  • Outer width 35 mm
  • Rim height 20 mm
  • Cross-section

  • Number of holes 32
  • Bore type Eyelet

  • Inclusive -

H 552 27.5 30 mm DB VI

RDH055BDPS36SA0075

  • Net weight 580 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 564 mm
  • Inner width 30 mm
  • Outer width 35 mm
  • Rim height 20 mm
  • Cross-section

  • Number of holes 36
  • Bore type Eyelet

  • Inclusive -

H 552 29 30 mm DB VI

RDH055CDPS28SA5220

  • Net weight 615 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 602 mm
  • Inner width 30 mm
  • Outer width 35 mm
  • Rim height 20 mm
  • Cross-section

  • Number of holes 28
  • Bore type Eyelet

  • Inclusive -

H 552 29 30 mm DB VI

RDH055CDPS32SA5221

  • Net weight 615 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 602 mm
  • Inner width 30 mm
  • Outer width 35 mm
  • Rim height 20 mm
  • Cross-section

  • Number of holes 32
  • Bore type Eyelet

  • Inclusive -

H 552 29 30 mm DB VI

RDH055CDPS36SA0076

  • Net weight 615 g
  • max. system weight 150 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 602 mm
  • Inner width 30 mm
  • Outer width 35 mm
  • Rim height 20 mm
  • Cross-section

  • Number of holes 36
  • Bore type Eyelet

  • Inclusive -
