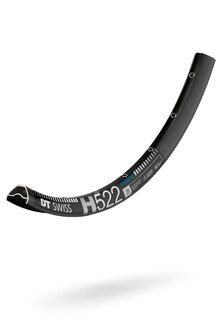

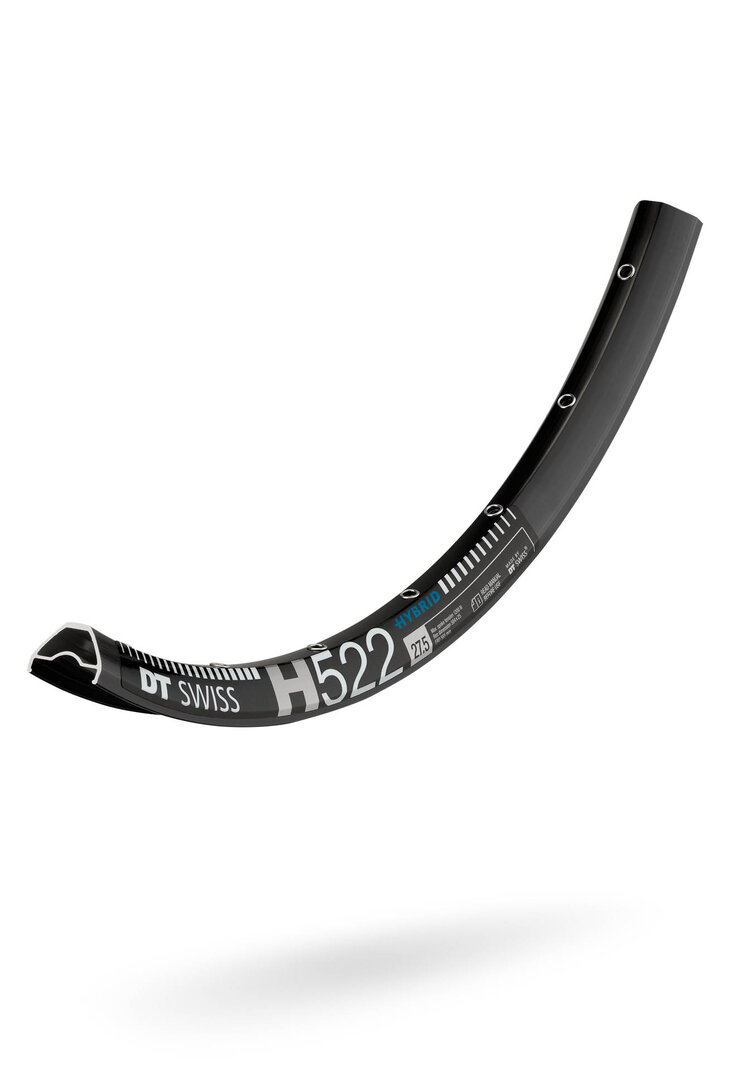

H 522
Sleeved 25 mm wide E-MTB rim - durable and versatile.
- MSRP US$ from $ 104
- Net weight from 535 g
Product details
Value, durability and versatility are some of the key words we used when designing the 25 mm H 522 eMTB rims. These beauties will not be the limiting factor on any outing in any terrain.
- Material ALUMINIUM
Model finder
Just a few clicks to find your model. Please use the filter below.
There are 12 models of this product.
Show all
Hide all
Zoom image
H 522 27.5 25 mm DB VI
RDH052BDPS28SA5214- Net weight 535 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 565 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 522 27.5 25 mm DB VI
RDH052BDPS32SA5215- Net weight 535 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 565 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 522 27.5 25 mm DB VI
RDH052BDPS36SA0073- Net weight 535 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 565 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 36
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 522 27.5 25 mm DB VI
RDH052BDPS28SB5214- Net weight 535 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 565 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
- Cross-section
- Number of holes 28
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 522 27.5 25 mm DB VI
RDH052BDPS32SB5215- Net weight 535 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 565 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
- Cross-section
- Number of holes 32
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 522 27.5 25 mm DB VI
RDH052BDPS36SB0073- Net weight 535 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 565 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
- Cross-section
- Number of holes 36
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 522 29 25 mm DB VI
RDH052CDPS28SA5216- Net weight 570 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 603 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 522 29 25 mm DB VI
RDH052CDPS32SA5217- Net weight 570 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 603 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 522 29 25 mm DB VI
RDH052CDPS36SA0074- Net weight 570 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 603 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
-
Cross-section
- Number of holes 36
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 522 29 25 mm DB VI
RDH052CDPS28SB5216- Net weight 570 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 603 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
- Cross-section
- Number of holes 28
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 522 29 25 mm DB VI
RDH052CDPS32SB5217- Net weight 570 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 603 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
- Cross-section
- Number of holes 32
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
Zoom image
H 522 29 25 mm DB VI
RDH052CDPS36SB0074- Net weight 570 g
- recommended system weight max. 150 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Sleeve joint
- Tire interface Tubeless crotched/Clincher TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 603 mm
- Inner Width 25 mm
- Outer width 30 mm
- Rim Height 20 mm
- Cross-section
- Number of holes 36
- Spoke bore rim Silver eyelet
- Valve hole Presta
- Inclusive -
