X 392

Lightweight sleeved 20 mm XC specific rim.

  • MSRP US$ from $ 62
  • Net weight from 415 g
Product details

Product details

On a 27.5 or a 29 inch bike: Cross Country means fast uphills and overtaking on downhills. As a result of elaborate finite element analysis, DT Swiss X rims employ material only where it‘s needed. The sleeved X 392 offers all this at a very attractive price point.

  • Material ALUMINIUM
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Rim diameter

02

Number of holes

There are 4 models of this product.
Show all
Hide all

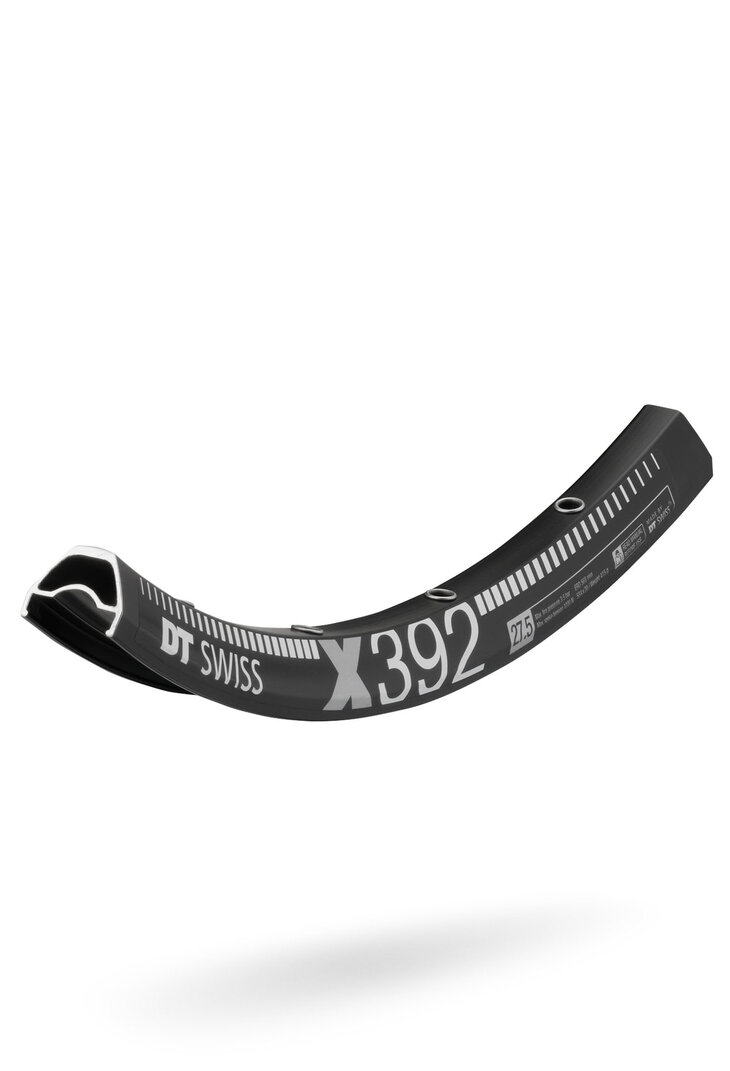

X 392 27.5 20 mm DB VI

RTX03965028S011286
General
  • Net weight 415 g
  • max. system weight 110 kg
  • ASTM classification 3
Material & Brake Interface
  • Material ALUMINIUM
  • Brake interface Disc
Dimensions
  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 568 mm
  • Inner width 20 mm
  • Outer width 24 mm
  • Rim height 18 mm
  • Cross-section
Holes
  • Number of holes 28
  • Bore type Eyelet
Inclusive
  • Inclusive -

X 392 27.5 20 mm DB VI

RTX03965032S011287

  • Net weight 415 g
  • max. system weight 110 kg
  • ASTM classification 3

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 568 mm
  • Inner width 20 mm
  • Outer width 24 mm
  • Rim height 18 mm
  • Cross-section

  • Number of holes 32
  • Bore type Eyelet

  • Inclusive -

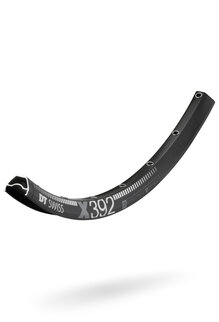

X 392 29 20 mm DB VI

RTX03929S28S011288

  • Net weight 440 g
  • max. system weight 110 kg
  • ASTM classification 3

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 606 mm
  • Inner width 20 mm
  • Outer width 24 mm
  • Rim height 18 mm
  • Cross-section

  • Number of holes 28
  • Bore type Eyelet

  • Inclusive -

X 392 29 20 mm DB VI

RTX03929S32S011289

  • Net weight 440 g
  • max. system weight 110 kg
  • ASTM classification 3

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 606 mm
  • Inner width 20 mm
  • Outer width 24 mm
  • Rim height 18 mm
  • Cross-section

  • Number of holes 32
  • Bore type Eyelet

  • Inclusive -
Support

Product support

Manuals, spareparts & conversion.

According to your selection X 392 we found 4 models. Select the model for which you need product support.
