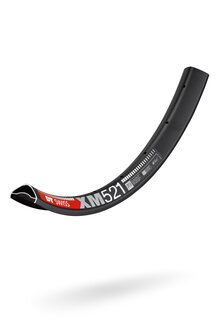

XM 521
Light and wide - a 35 mm wide welded AM rim.
- MSRP US$ from $ 164
- Net weight from 545 g
Product details
Plus size tires are great and with the XM 521 they find their ideally matched counterpart. It offers all the support needed by the most aggressive of riders, yet it keeps the weight really low. This is important since big tires tempt you to goof around on the trails and any rider would rather spend their energy jumping off obstacles than wasting it dragging along extra weight. That's the XM 521: a rim ready to put smiles on riders' faces.
- Material ALUMINIUM
Model finder
Just a few clicks to find your model. Please use the filter below.
Zoom image
XM 521 27.5 35 mm DB VI
RDXM5265028S011557- Net weight 545 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 562 mm
- Inner Width 35 mm
- Outer width 40 mm
- Rim Height 21 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
- Inclusive -
Zoom image
XM 521 27.5 35 mm DB VI
RDXM5265032S011558- Net weight 545 g
- recommended System weight max. 120 kg
- ASTM classification 4
- Material ALUMINIUM
- Rim joint Welded
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 562 mm
- Inner Width 35 mm
- Outer width 40 mm
- Rim Height 21 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Non eyelet PHR
- Valve hole Presta
- Inclusive -
