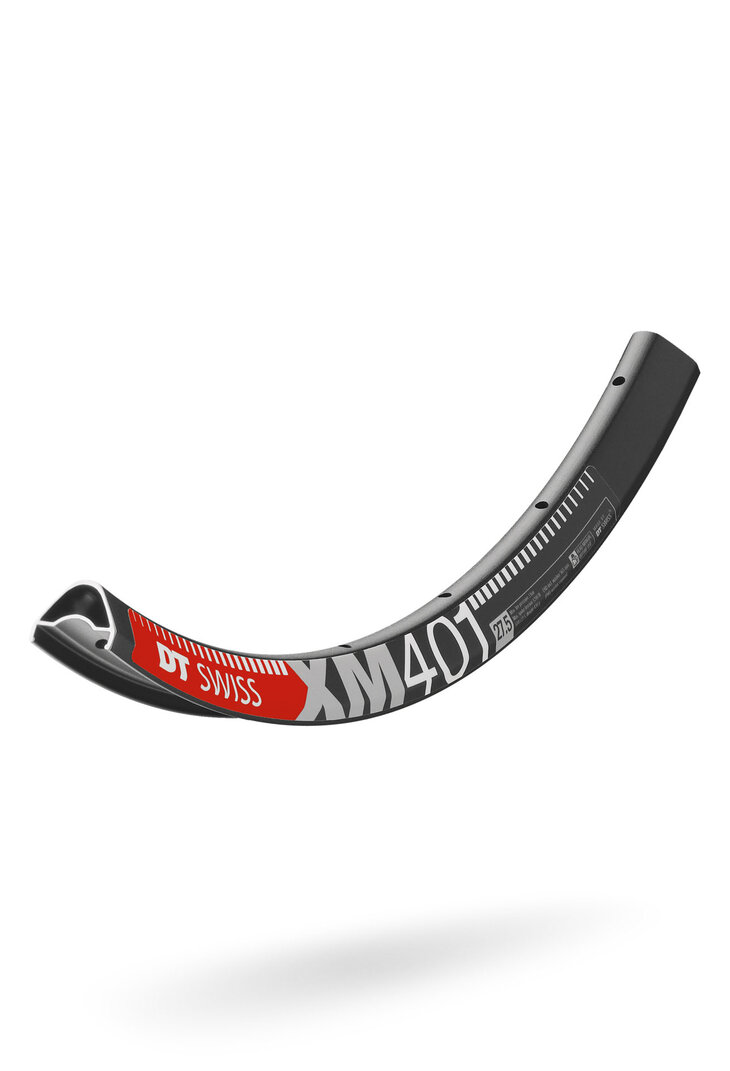

XM 401

Our lightest welded AM rim, comes with 22.5 mm inner width.

  • MSRP US$ from $ 107
  • Net weight from 430 g
Product details

Product details

XM 401, the best of both worlds: light enough for any climb, wide enough for 2.5” tires. High end alloy and sophisticated profiles – now available in 27.5 and 29 inch options. Comes with DT Squorx Pro Head® nipples and PHR washers.

  • Material ALUMINIUM
Models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Rim diameter

02

Number of holes

There are 4 models of this product.
Show all
Hide all

XM 401 27.5 22.5 mm DB VI

RTXM4065028S011225
General
  • Net weight 430 g
  • max. system weight 120 kg
  • ASTM classification 4
Material & Brake Interface
  • Material ALUMINIUM
  • Brake interface Disc
Dimensions
  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 565 mm
  • Inner width 22.5 mm
  • Outer width 27 mm
  • Rim height 19.5 mm
  • Cross-section
Holes
  • Number of holes 28
  • Bore type Non-Eyelet (PHR washer)
Inclusive
  • Inclusive -

XM 401 27.5 22.5 mm DB VI

RTXM4065032S011252

  • Net weight 430 g
  • max. system weight 120 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 27.5" / 650B
  • Reference diameter ERD 565 mm
  • Inner width 22.5 mm
  • Outer width 27 mm
  • Rim height 19.5 mm
  • Cross-section

  • Number of holes 32
  • Bore type Non-Eyelet (PHR washer)

  • Inclusive -

XM 401 29 22.5 mm DB VI

RTXM4029N28S011226

  • Net weight 460 g
  • max. system weight 120 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 603 mm
  • Inner width 22.5 mm
  • Outer width 27 mm
  • Rim height 19.5 mm
  • Cross-section

  • Number of holes 28
  • Bore type Non-Eyelet (PHR washer)

  • Inclusive -

XM 401 29 22.5 mm DB VI

RTXM4029N32S011253

  • Net weight 460 g
  • max. system weight 120 kg
  • ASTM classification 4

  • Material ALUMINIUM
  • Brake interface Disc

  • Rim diameter 29" / 700C
  • Reference diameter ERD 603 mm
  • Inner width 22.5 mm
  • Outer width 27 mm
  • Rim height 19.5 mm
  • Cross-section

  • Number of holes 32
  • Bore type Non-Eyelet (PHR washer)

  • Inclusive -
